Description

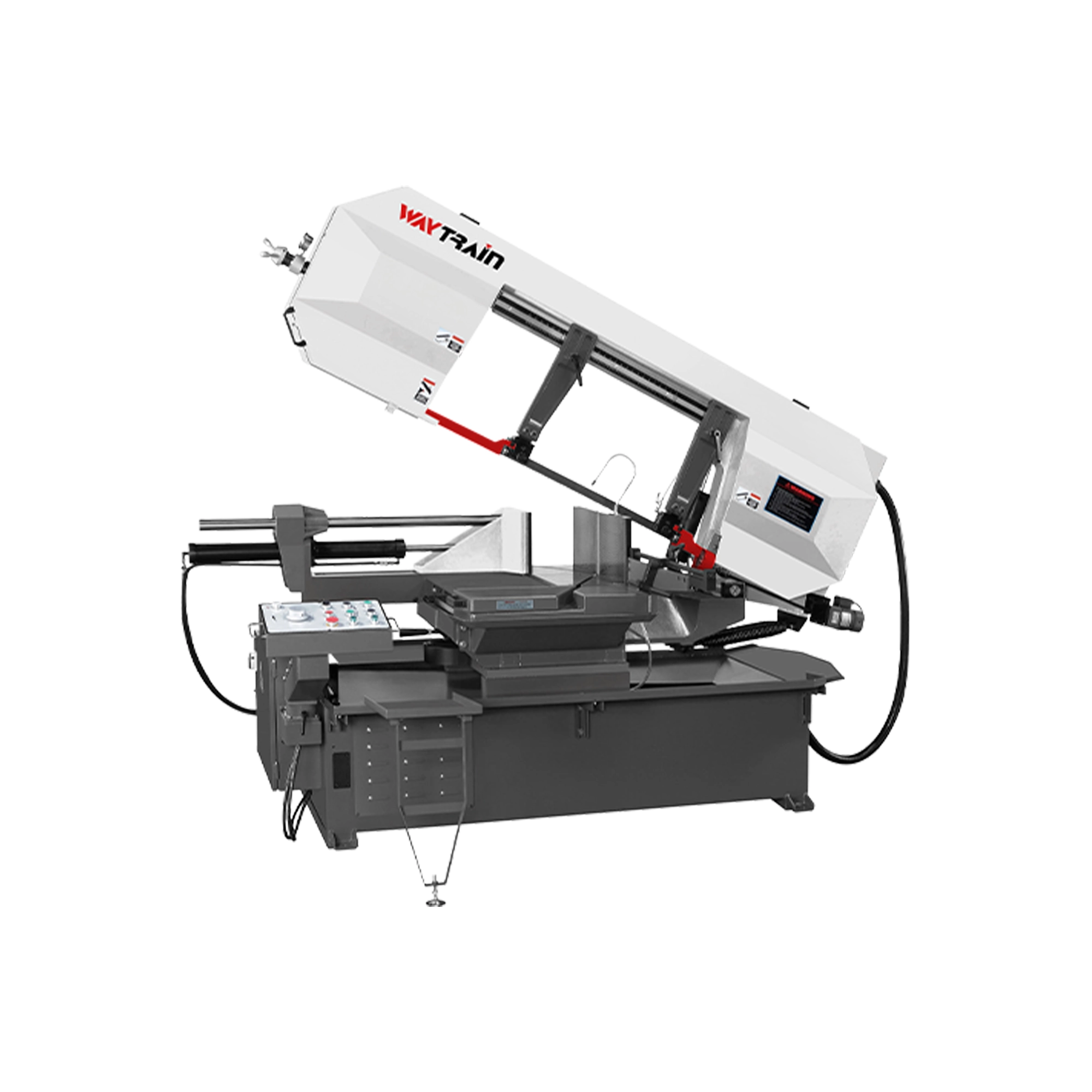

The Waytrain UE-460DSAE is a heavy-duty semi-automatic bandsaw designed for accurate and efficient cutting of large sections, profiles and solid materials.
- Swivel saw bow to get angle cutting (R/L 60˚) by manual
- Variable speeds by manual
- Blade speed readout
- Set bow height by manual
- Blade tension gauge
- Blade wheel driven chip brush
- Swiveling control box
- Angle readout(Option)
- Vertical press vise(Option)
- Vise pressure regulator(Option)
- Hydraulic blade tension(Option)
- Laser cutting line devise(Option)
| Capacity 90° (H x W) |  460 mm 460 x 460 mm 440 x 600 mm |
Capacity 45°(R/L) (H x W) | 445 mm 410 x 410 mm |
| Capacity 60°(R/L) (H x W) | 295 mm 295 x 295 mm |
Blade Motor | 5 HP (3.7kw) x 4P |
| Blade Size | 41 x 1.3 x 5330 mm | Blade Speed | 32 ~ 96 mpm |
| Hydraulic Tank | 30 L | Coolant Tank | 60 L |
| Packing Size | 2810 x 1135 x 1860 mm | N.W/G.W | 1500 kg / 1630kg |
Contact us for pricing information.
