Description

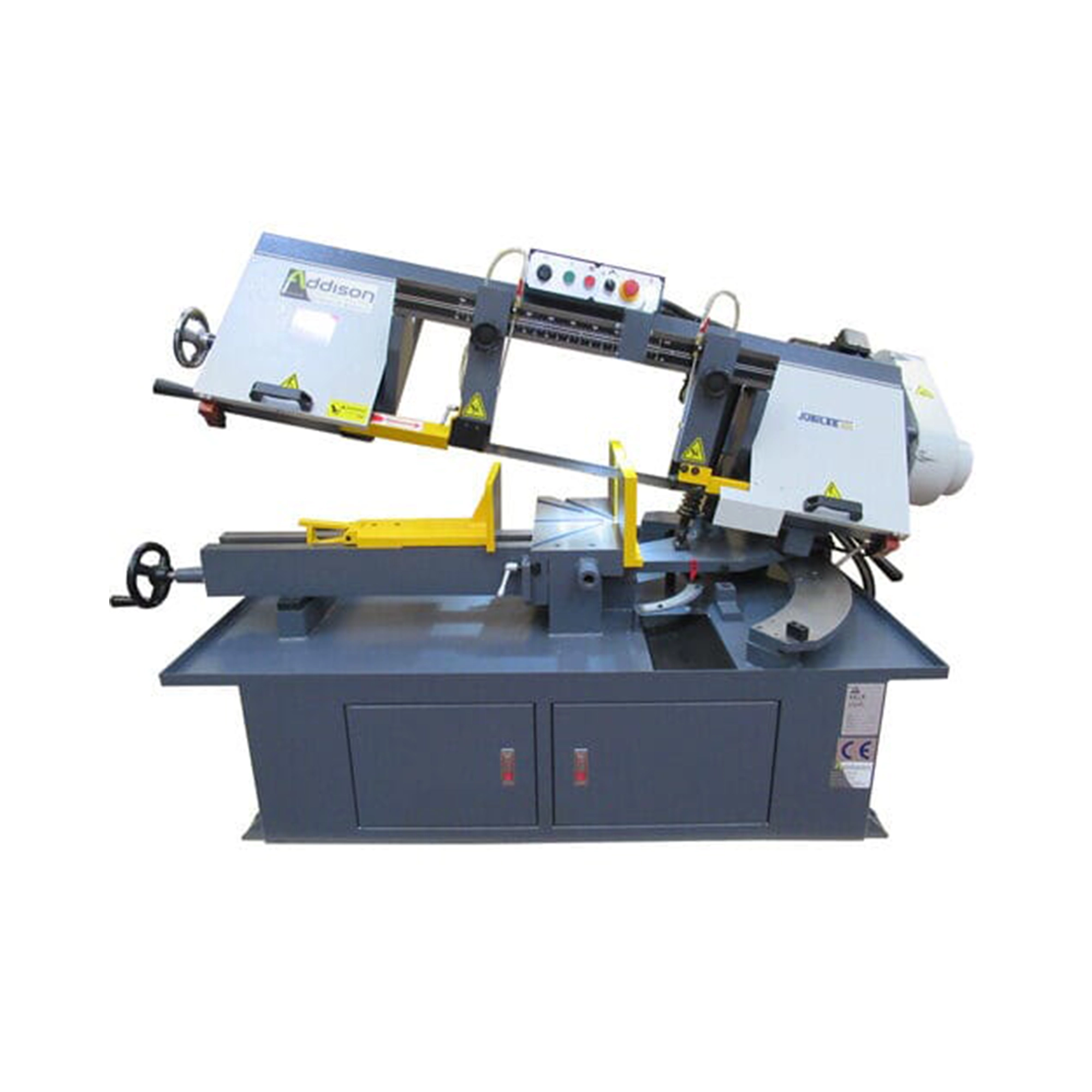

Designed for accurate 90 degrees cutting, and with two way mitre cutting to 45 / 60 degrees. Variable blade speed for controlled cutting of various metals. Perfect choice for the busy workshop that requires a flexible and robust machine.
- Precision two-way miter cut to 45 and 60 degrees, right and left
- Large mitre scale for precision angle cuts
- Swivel head for easy angle cutting without moving material
- Electric coolant system with built-in tank and pump
- Highly efficient, low energy motor
- Variable blade speed
- Precision blade tension with hydraulic gauge
- Large tungsten carbide and roller blade guides
- Adjustable stop for repeat cutting
- Low voltage control with overload protecting
- Blade cleaning brush
- Quick action ratchet design vice
| Capacity at 90 | Round | 260 mm |
| Square | 260 mm | |
| Rectangle | 260 x 430 mm | |
| Capacity at 45 | Round | 260 mm |
| Square | 260 mm | |
| Rectangle | 260 x 300 mm | |
| Capacity at 60 | Round | 155 mm |
| Square | 140 mm | |
| Rectangle | 155 x 125 mm | |
| Blade size | 27 x 0.9 x 3660 mm | |
| Motor | 2 HP (1.5 KW) | |
| Speed Range | 15, 38, 61, 84 MPM (50, 125, 200, 275 FPM) | |
| Packing size | 215 x 101.5 x 113 cm | |
| Net Weight | 470 Kgs (1034 Lbs) | |
| Gross weight | 520 Kgs (1144 Lbs) | |
Contact us for pricing information.
