Binzel FEC W3 Fume Extraction Unit & RAB25BBH A/C Torch 3 m

£2,817.66 Ex. VAT

• LED Display
• Weight: approx. 25 kg
• Noise level: 76 dB (A)
• Max. air flow: 230 m³/ h
• Connection diameter: 50 mm
• Max. vacuum: 19,000 Pa
• Voltage: 115 V, 50/60 Hz | 230 V, 50 Hz
• Engine performance: 1.1 kW
• Filter: permanent filter dust class M, 0.8 m²
• Dimensions: length 590 mm; width 425 mm; height 825 mm
• Integrated automatic start/stop system
• Supplied with Binzel RAB25BBH Aircooled Fume Torch 3mtr

SKU: 100-118 Category: Tag: Brand:

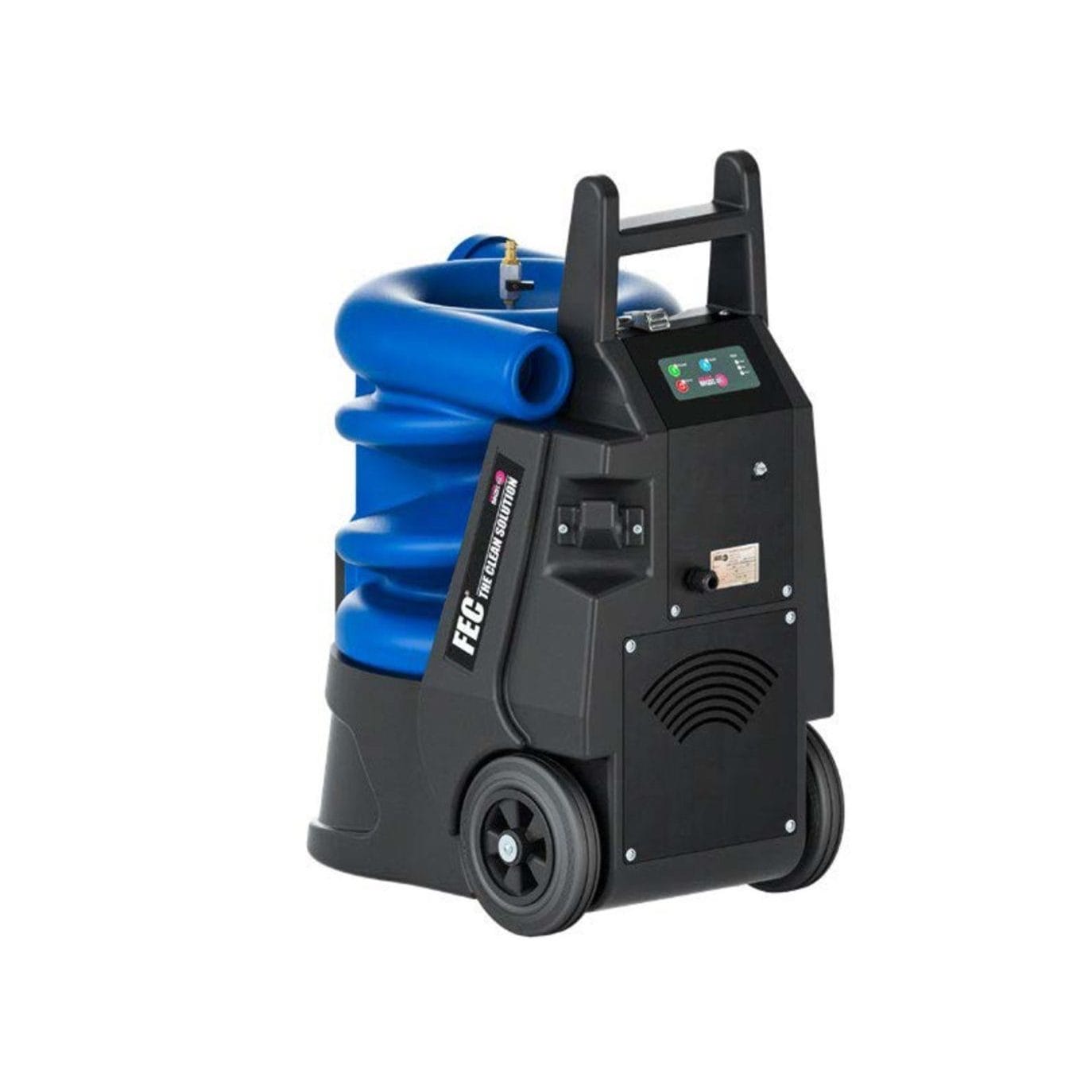

Binzel FEC Cyclone Fume Extraction W3 System

Harmful welding gases are created during welding. The new FEC (Fume Extraction Cyclone) weld fume extractor with innovative cyclone technology is the ideal system supplement for ABICOR BINZEL fume extraction torches such as the new RAB GRIP HE (High Efficiency). It extracts fumes that are created during welding with a high vacuum of 19,000 Pa, a market-leading suction output. It suitable for mild steel and stainless steel extraction as well as on-site extraction.

The mobile fume extraction system FEC combines the highest suction output and intelligent energy-efficient functions with simple handling and also offers numerous advantages over standard suction devices :-

• Cyclone technology for particle pre-separation to protect the filter surface – reduced cleaning intervals.
• Integrated automatic start-stop system reduces operation expenses and wear.
• Optional with start-stop-measuring caliper.
• Filters are long lasting due to the integrated filter cleaning concept – permanent filter can be cleaned easily and quickly.
• With 25 kg and smooth-running full-cushion wheels perfect for variable application sites.
• Robust & quiet due to thick-walled plastic case.
• Contamination-free waste disposal of the welding dust by encapsulated de-dusting system and bag.

This unit comes with a 3 metre RAB25BBH torch.
