Description

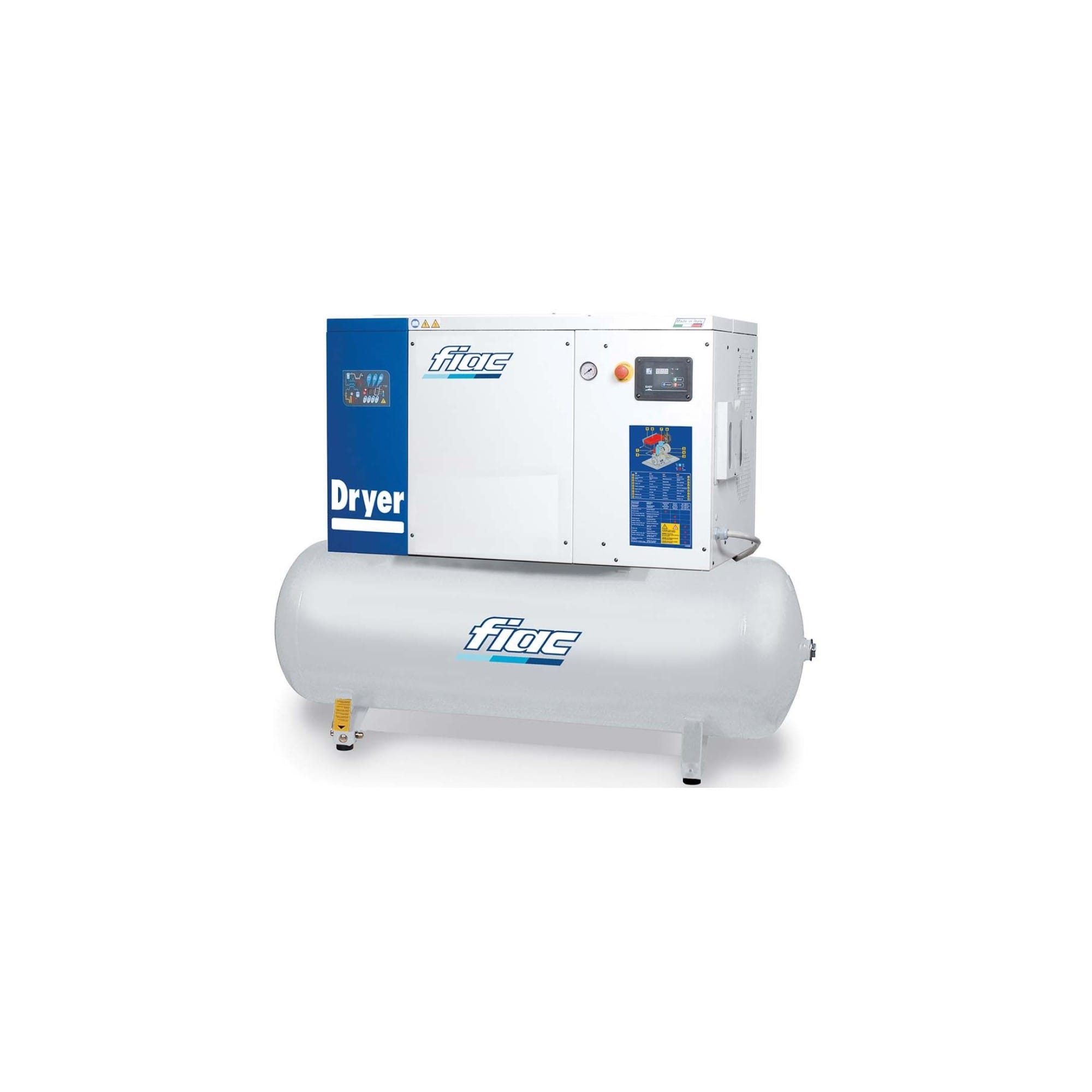

Fiac NS 10/270 10HP 270L Screw Compressor c/w Dryer
The FIAC NS 10/270 is a heavy-duty high-performance rotary screw Compressor c/w a refrigeration dryer. The Compressor features a 10 HP motor and a 270 Litre Air Receiver, with a maximum output of 34.1 CFM at 10 Bar. This FIAC compressor is backed by a 2-year onsite warranty. The installation of this Compressor is simple and it has very low on-going maintenance.
This silent rotary screw compressor features an easy control unit which manages, monitors and optimises the duty cycle of the unit. The unit also gives clear, immediate data readings for air pressure, oil temperature along with all protection and maintenance schedules. These compressors are ideal for all applications where there is a constantly high demand for air pressure.
Specification
• Moor HP: 10.0
• CFM @ 10 bar: 34.1
• Tank Litres: 270
• Voltage: 415
• Sound Pressure Db(A): 67
• Dimensions mm (LxWxH): 1625 x 540 x 1447
Features & Benefits
• Best performances of the category, high efficiency and reliability guaranteed by the new air end.
• Effective cooling system.
• FIAC EASY CONTROL BASIC manages, monitors and optimises the duty-cycle of the unit, the reduction of the power consumption is obtained thanks to an effective and reliable adjustable start/stop.
• Easy and immediate reading of the data.
• IP 54, insulation Class F, continuous duty electric motor is oversized on every unit. Electric components are positioned inside an IP 54 box.
• The drain tap is easily affixed to the foot of the tank.
• Solid chassis, completely realized in painted metal parts.
• Optimal low noise level through soundproof panels made by a high density of cells.
• Long life and high performance over time.
• Optimal and efficient drying of compressed air.
Why do I need a Refrigerated Dryer?
The main benefit of the refrigerated dryer is to remove the water content within the air that is sucked in by the compressor. This ensures that your piping, tools and equipment are protected as the air dryer avoids condensation problems and potential damage.
In brief, the air dryer is designed to cool down the warm met air as it enters the dryer to about 3 degrees Celsius. Through this process, any water vapour in the air condenses into water and is then removed from the compressed air via the water-trap. The cool air is then re-heated to approx. room temperature leaving the air within the tank much dryer.
We also offer a range of the Fiac Air Compressors including some of the Workhorse models.
