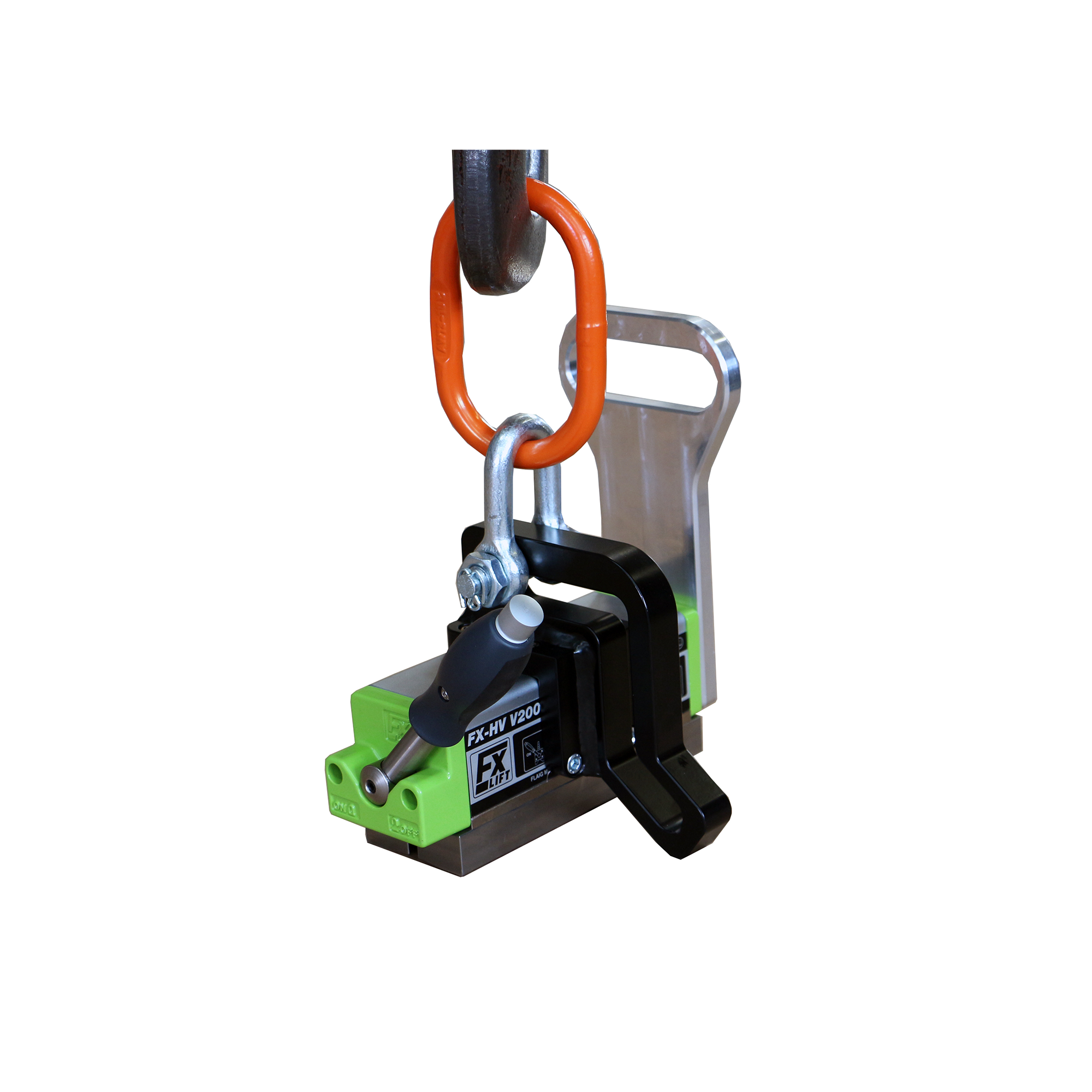

Flaig FX-HV150 Horizontal-Vertical System

Description

The FX-HV Horizontal-Vertical System is the ultimate solution for transporting workpieces both horizontally and vertically. Designed with versatility in mind, the FX-HV offers a wide range of adjustable features to suit a variety of needs. You can easily adjust the overall height and center of gravity using plug-in bolts. Additionally, the system can carry up to 20% of its rated load without requiring the undergripping supports.

The support bolts are strategically positioned to securely hold upright circular blanks, making it ideal for tasks like those at a saw. It’s also perfect for setting up horizontal discs and sheets. For horizontal transport, the system includes a crane eye for easy handling.

Representative picture may be used, View Product Drawing here.

Economic Advantages:

• German-Made Excellence: Crafted in Germany, the Flaig Lifting Magnets embodies unparalleled craftsmanship and reliability.
• Compliance and Safety: Tested to meet stringent German standards, ensuring compliance and unmatched safety during operation.
• Environmental Consciousness: Designed for sustainability, achieving higher performance with reduced rare earth magnet consumption.
• Longevity Guaranteed: Enjoy peace of mind with a generous 5-year warranty.
• Spare Parts Assurance: With a guarantee of spare parts supply for 10 years, maintenance and repair are hassle-free.
• Seamless Integration: Easily accessible CAD data allows simple integration into your design and planning processes.

Technical Advantages:

• Durable Construction: 100% nickel-plated for enhanced durability and corrosion resistance.
• Optimized Lifting Power: High energy half shell magnets maximize lifting capabilities for efficient handling.
• Efficient Shift Travel: With a shift travel of only 90°, reducing the probability of RSI.
• Secure Attachment: Featuring a large forged crane eye, ensuring a secure attachment during operation.
• Rapid Operation: Enjoy shorter pick-up and unloading times, boosting productivity in material handling operations.
• Preservation of Materials: Lift materials without mechanical impairment, ensuring their integrity throughout.
• User Comfort and Safety: Recoilless one-hand operation enhances user comfort and safety, minimizing the risk of accidents.
• Versatile Application: Suitable for lifting both flat and round materials, offering unparalleled versatility in operation.

Discover the full range of Flaig lifting magnets and solutions in the current catalogue.
