Description

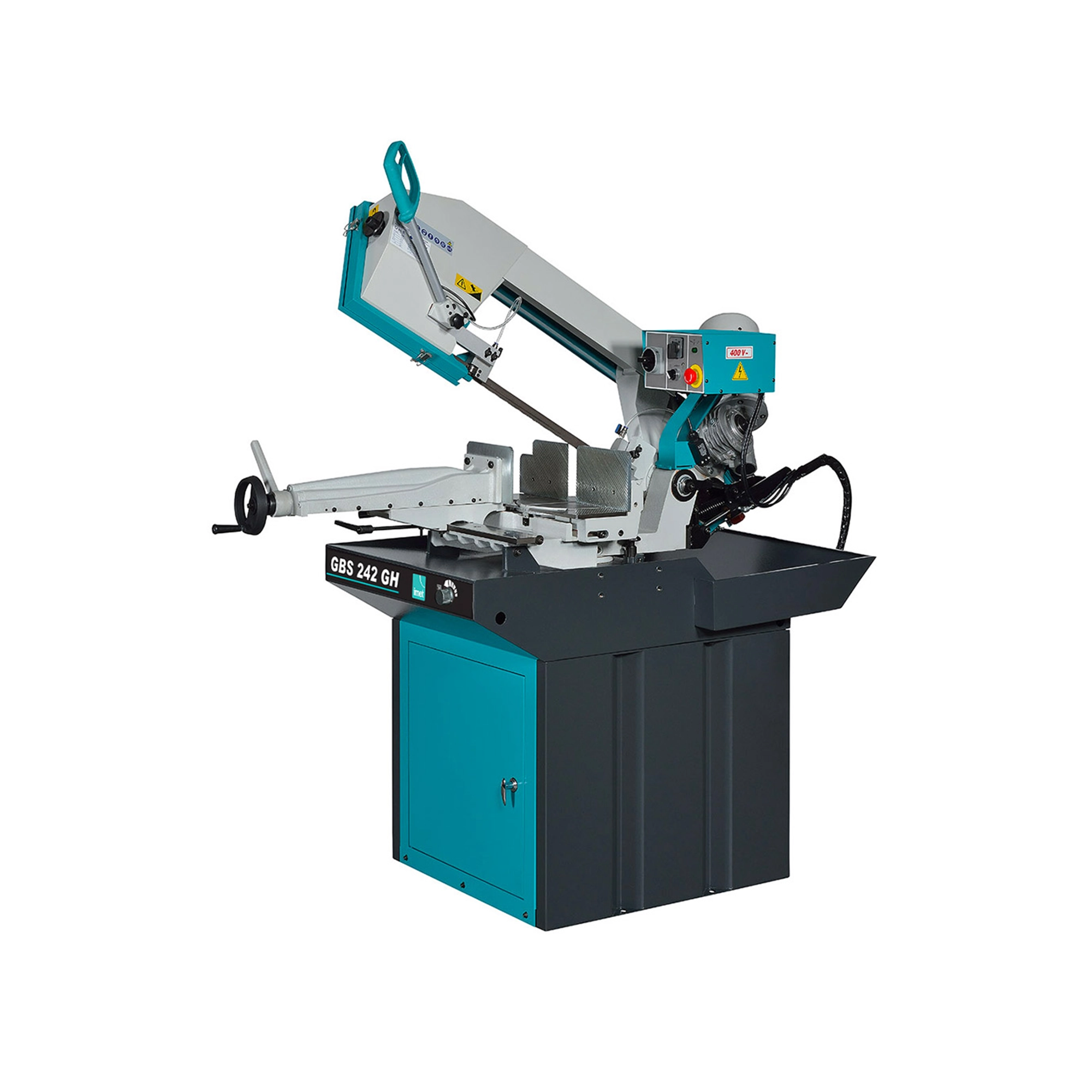

GBS 242 GH is the IMET controlled descent sawing machine. Versatile and easy to use, GBS 242 GH is ideal for maintenance and for small and medium-sized carpentry. The machine performs angled cuts up to 45 ° to the right and 60 ° to the left.
Technical information
| Cutting capacity at 0 ° | Round: 250mm Square: 210mm Rectangle: 290x210mm0mm |
| Cutting capacity at 45 ° left | Round: 220mm Square: 200mm Rectangle: 210x200mmm |
| Cutting capacity at 60 ° left | Round: 140mm Square: 130mm Rectangle: 140x130mmm |
| Cutting capacity at 45 ° right | Round: 170mm Square: 170mm Rectangle: 170x170mmm |
| Cutting capacity at 0 ° (solid – C45)) | 150mm |
| Blade size | 2965x27x0,9mm 6/10 T |
| Blade motor | 1.1/1.3 KW |
| Blade speed | 35/70 m/min |
| Height of the work surface | 940mm |
| Weight | 290kg |
| Dimensions | 1500x1250x1700mm |
Contact us for pricing information.
