Description

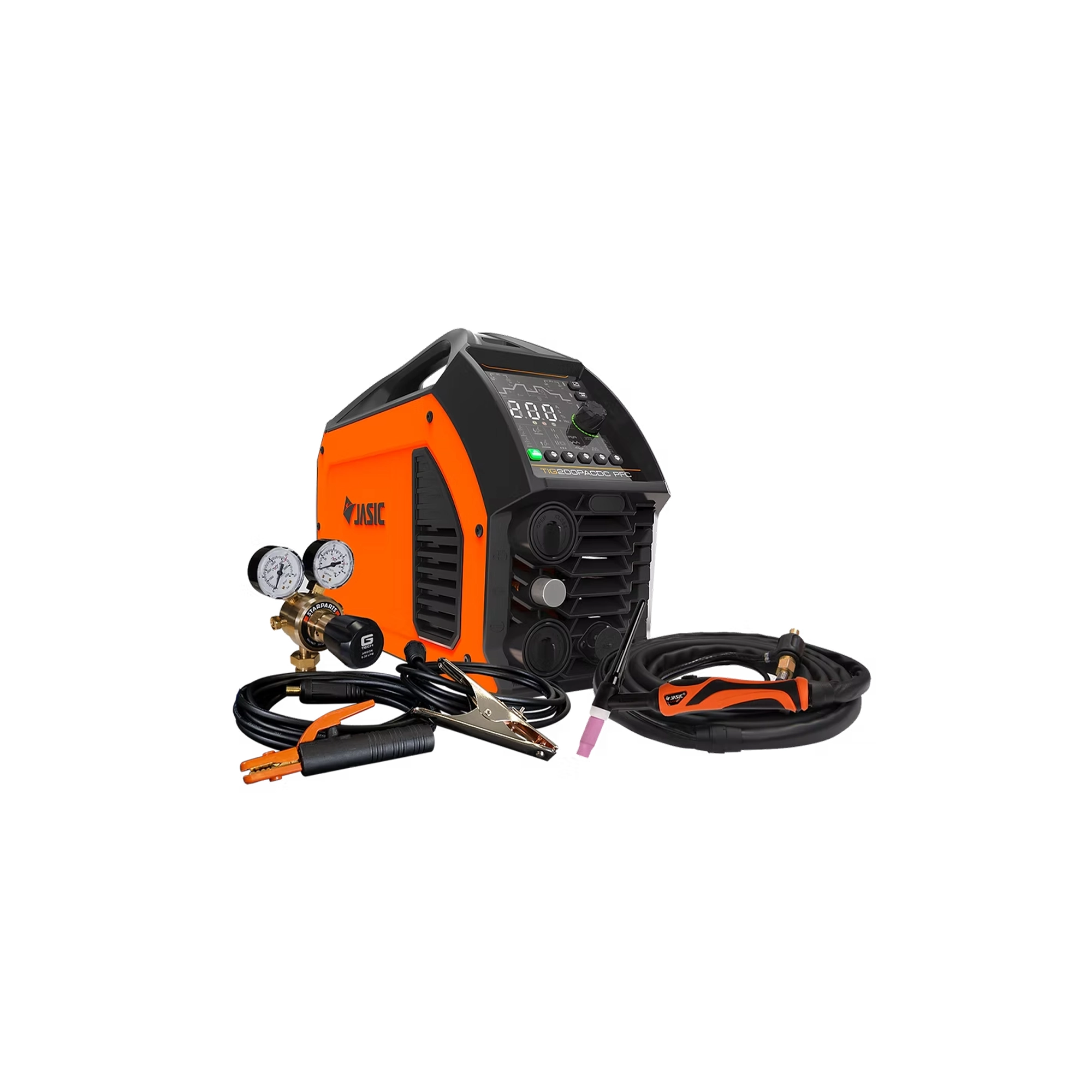

C/w TIG Torch 4m, Regulator, Hose & Lead Set. Standard 5-years manufacturers warranty.
Key Features
- Rugged, ergonomic design
- ClearVision technology
- Adaptable wide voltage range
- HF stabilising technology
- Dash-Arc
- Smart Lift TIG
- Full-featured pulse TIG parameters
- Multiple AC waveforms
- Mixed waveform, mixed waveform frequency, and mixed waveform duty cycle
- Flexible remote control solutions (optional)
- Power factor correction (PFC) – generator friendly
- Quick factory reset and auto sleep mode
- Water-cooled option available
- ABAP (Active Balancing Air Passage)
- Smart Gas for optimised shielding gas consumption
- On-demand fan
- Voltage Reduction Device (VRD)
- Key power electronic component protection
- Overcurrent and overheat protection
- TFT screen (optional)
Technical Data
- Input voltage: AC 95–265V, 50/60Hz
- No-load voltage: 65V
TIG Mode (AC 115V)
- Rated input current: 32.2A
- Ieff: 16.1A
- Rated input power: 3.5kVA
- Current range:
- DC: 5–160A
- AC: 20–160A
- Rated duty cycle @ 40°C: 25%
TIG Mode (AC 230V)
- Rated input current: 21.1A
- Ieff: 10.6A
- Rated input power: 4.7kVA
- Current range:
- DC: 5–200A
- AC: 20–200A
- Rated duty cycle @ 40°C: 25%
MMA Mode (AC 115V)
- Rated input current: 34.1A
- Ieff: 18.7A
- Rated input power: 3.9kVA
- Current range: 10–120A
- Rated duty cycle @ 40°C: 30%
MMA Mode (AC 230V)
- Rated input current: 22.7A
- Ieff: 12.4A
- Rated input power: 5.6kVA
- Current range: 10–160A
- Rated duty cycle @ 40°C: 30%
General Specifications
- Efficiency: 80%
- Power factor: 0.95
- Idle state power: <50W
- Protection class: IP23S
- Insulation class: H
- Dimensions (L × W × H): 490 × 165 × 341mm
- Weight: 11.9kg
Recommended Generator Size
- AC 115V: 5kVA
- AC 230V: 7kVA
Note: Generator must have AVR (Automatic Voltage Regulation).
