Description

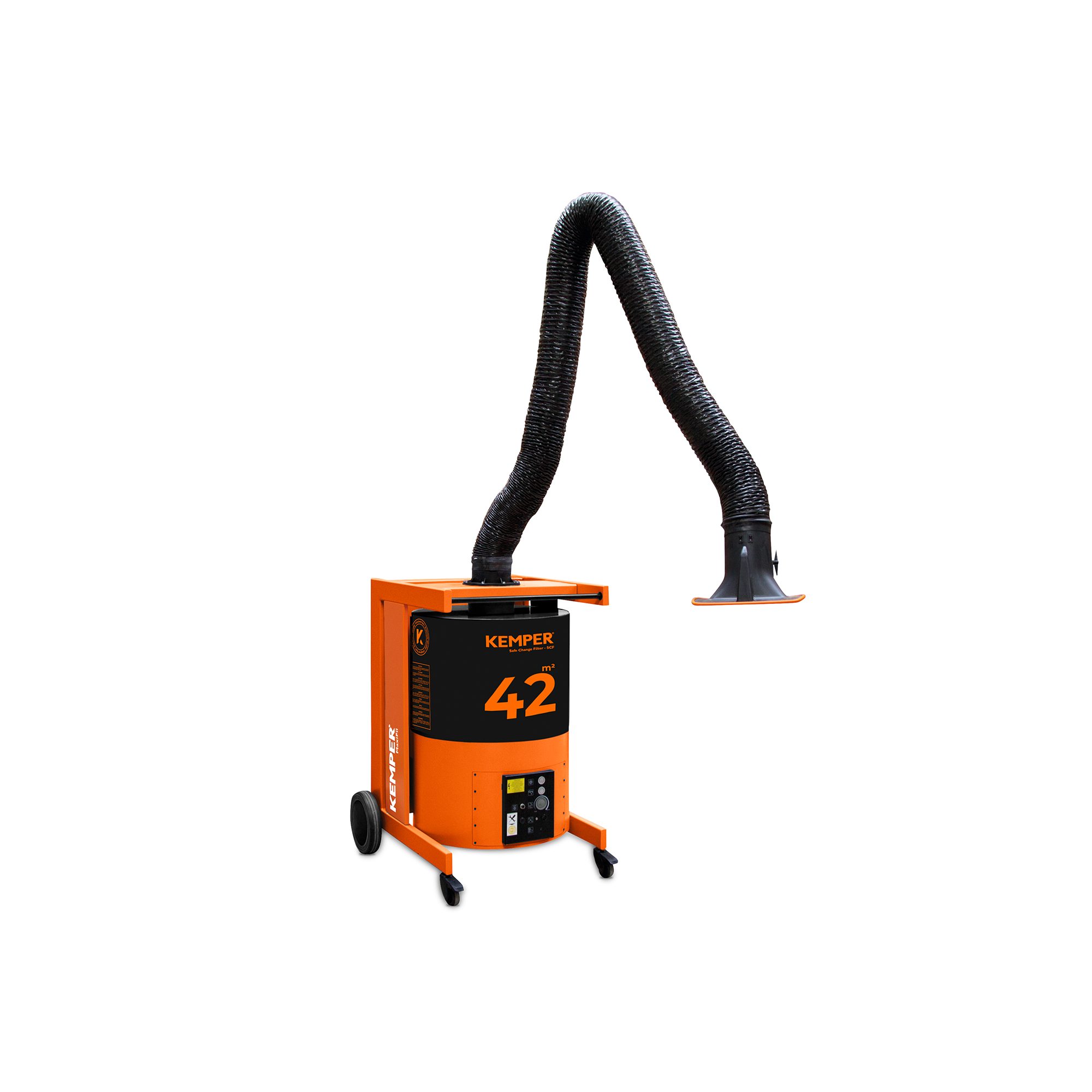

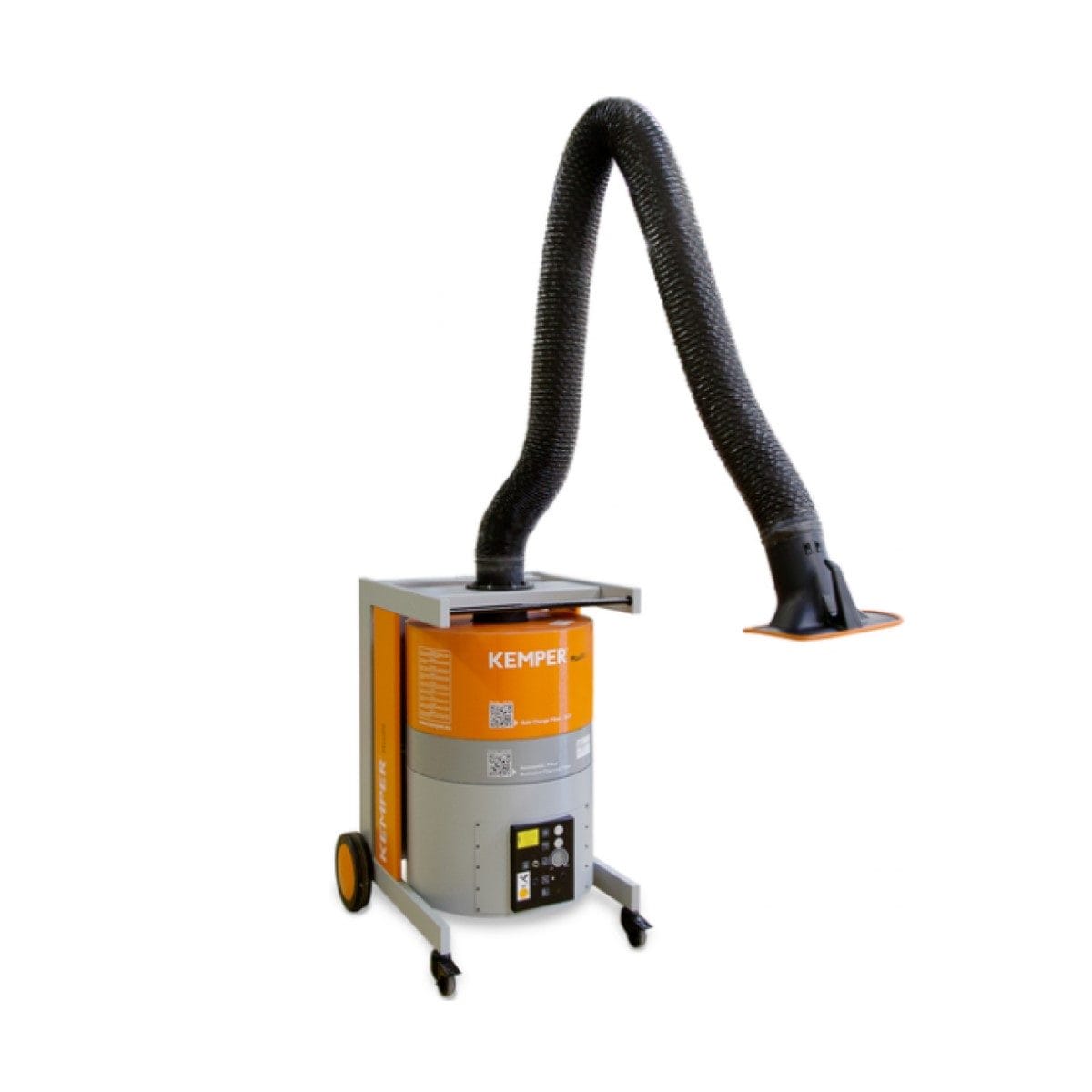

Kemper Maxifil Fume Extractor 415 V c/w 4 m Flexible Arm
The Kemper Maxifil welding fume extractor is ideal for medium-heavy duty applications where larger volumes of dust and welding fumes are created. This extractor is best suited for companies that predominately do MIG/MAG welding processes including general fabrication, structural steelwork and joining of thicker materials.
This compact filter device is designed to extract the welding fumes right at the source and then exhaust them with a separation rate of more than 99%. The exhaust hood which is fitted at the end of the extraction arm is easily movable with its 360° rotational design which makes it effortless for the operator to move the hood near to his workpiece. The arm is also kept rigid without any additional support needed.
The 2-stage filtering process ensures that the exhausting dust and air is purified fully before being returned to the working area. The main filter is 42m² and is covered by the pre-filter to enhance the lifecycle of the filters. To ensure maximum performance from this extractor it is always important to check these filters at least every week.
Since the launch of the HSE Bulletin in February 2019 for the control of mild steel welding fumes, this Maxifil unit has been very popular for most medium-heavy duty metal workshop environments.
Features & Benefits
• Safe operation by rotation field control
• Exhaust arm requires less adjustment due to flow-optimised
• exhaust hood design
• Increased safety due to filter monitoring
• Increased safety with safe filter change
• Very economic due to long-lasting high capacity filters
Technical Data
Art. No. 65 650 100
Filter
Filter stages: 2
Filter method: Disposable filter
Filter surface: 42 m²
Type of filter: Safe Change Filter
Filter material: Non-woven polyester
Filter efficiency: > 99.5 %
Filter class: E12
Additional filters: Pre-filter (aluminium)
Basic data
Extraction capacity: 1100 m³/h
Dimensions (w x d x h): 803 x 892 x 1109 mm
Weight: 129 kg
Motor power: 1.5 kW
Power supply: 3 x 400 V / 50 Hz
Rated current: 3.1 A
Control voltage: 24 V, DC
Noise level: 70 dB(A)
Additional information
IFA-Certification: W3-Approved
Fan type: Radial fan
Quantity of extraction arms: 1
Exhaust arm type: flexible exhaust arm
Diameter extraction arm: 150 mm
Length of exhaust arm: 4 m
We also have a range of Kemper Extraction Arms, filters and accessories in our range.
