Description

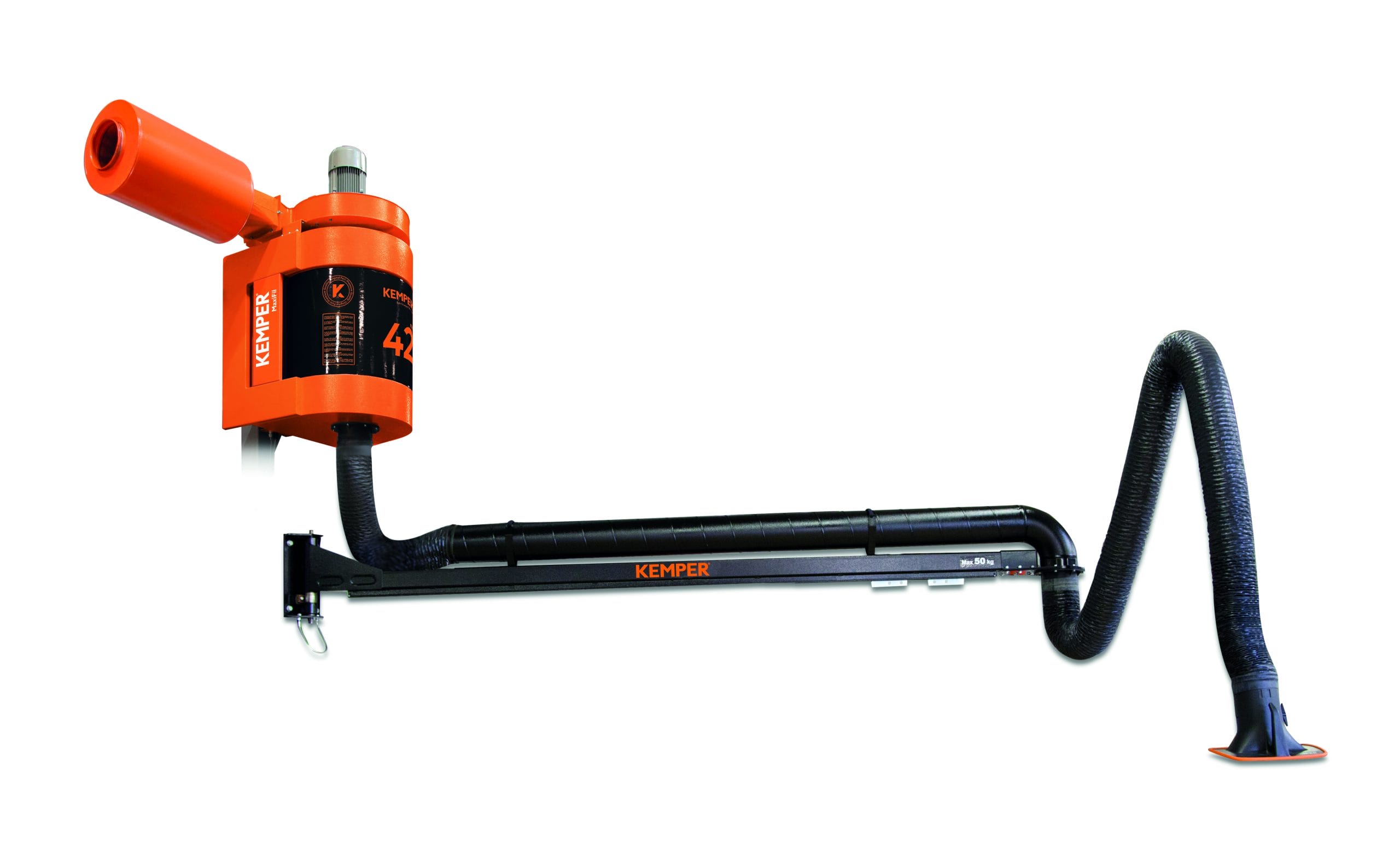

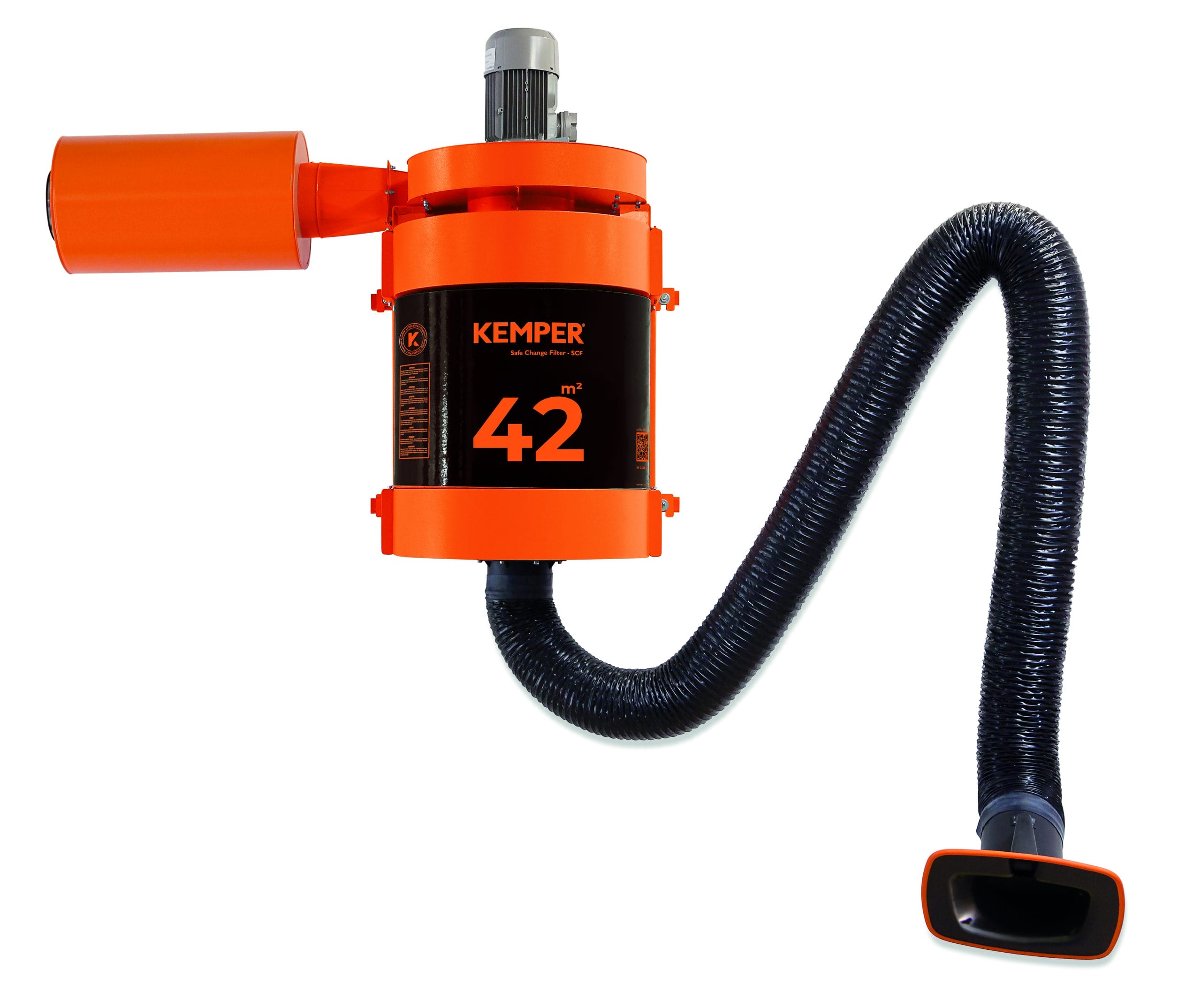

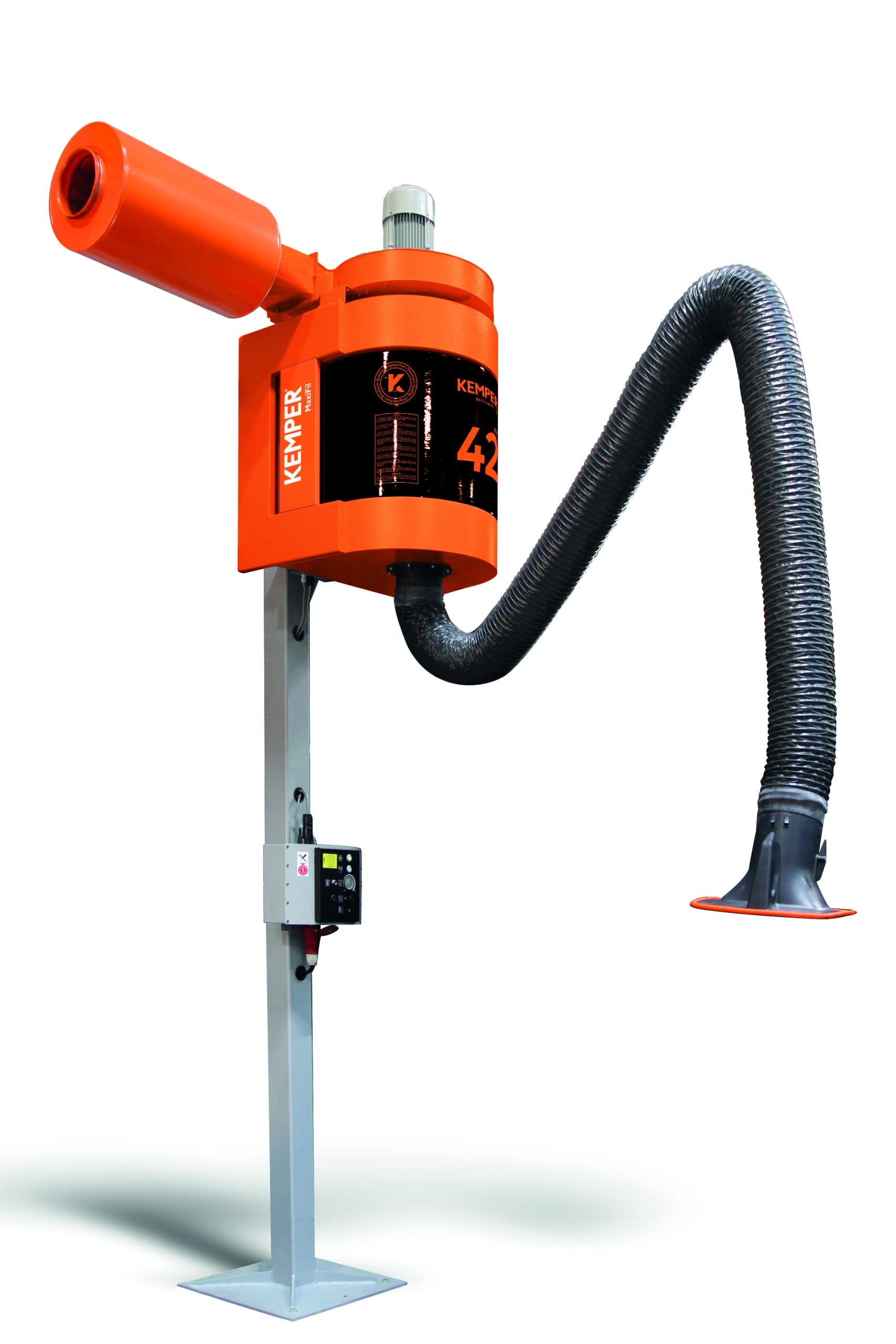

Kemper Maxifil Stationary Fume Extractor with Flexible Arm

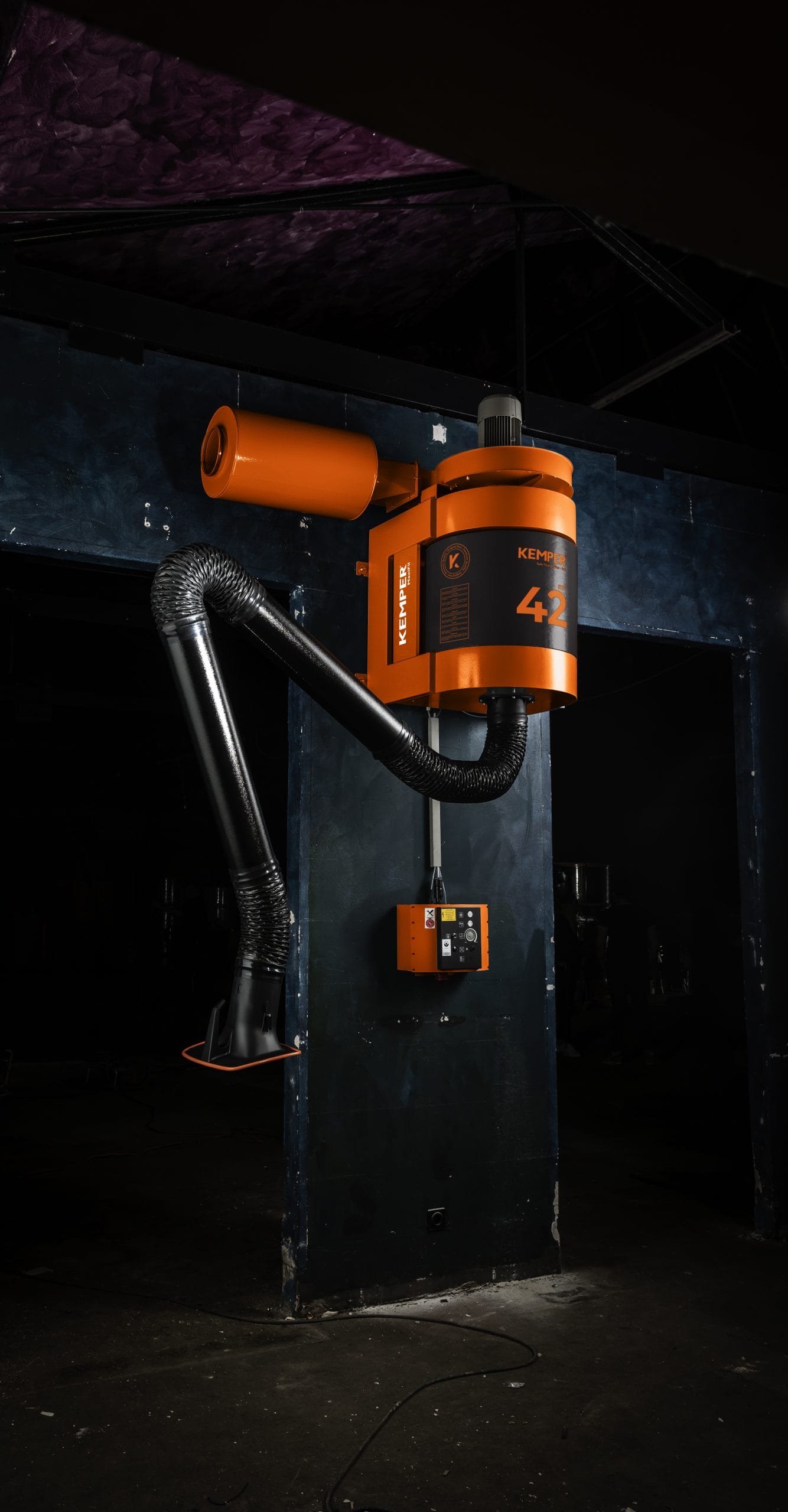

MaxiFil smoke extraction units combine large filter capacities with contamination-free filter change. The comfortable filter unit easily handles applications with medium amounts of smoke and dust. The wall-mounted version is also compact and is ideal for regular use on location.
Features & Benefits
• Safe operation by rotation field control
• Exhaust arm requires less adjustment due to flow-optimised
• Increased safety due to filter monitoring
• Increased safety with safe filter change
• Very economic due to long-lasting high capacity filters
Filter
Filter stages: 2
Filter method: Disposable filter
Filter surface: 42 m²
Type of filter: Safe Change Filter
Filter material: Non-woven polyester
Filter efficiency: > 99.5 %
Filter class: E12
Additional filters: Pre-filter (aluminium)
Basic data
Extraction capacity: 1000 m³/h
Dimensions (w x d x h): 1533 x 776 x 1228.5 mm
Weight: 125 kg
Motor power: 1.5 kW
Power supply: 3 x 400 V / 50 Hz
Rated current: 3.1 A
Control voltage: 24 V, DC
Noise level: 72 dB(A)
Additional information
IFA-Certification: W3-Approved
Fan type: Radial fan
Quantity of extraction arms: 1
Exhaust arm type: flexible exhaust arm
Diameter extraction arm: 150 mm
Length of exhaust arm: 4 m
We also have a range of Kemper Extraction Arms, filters and accessories in our range.
