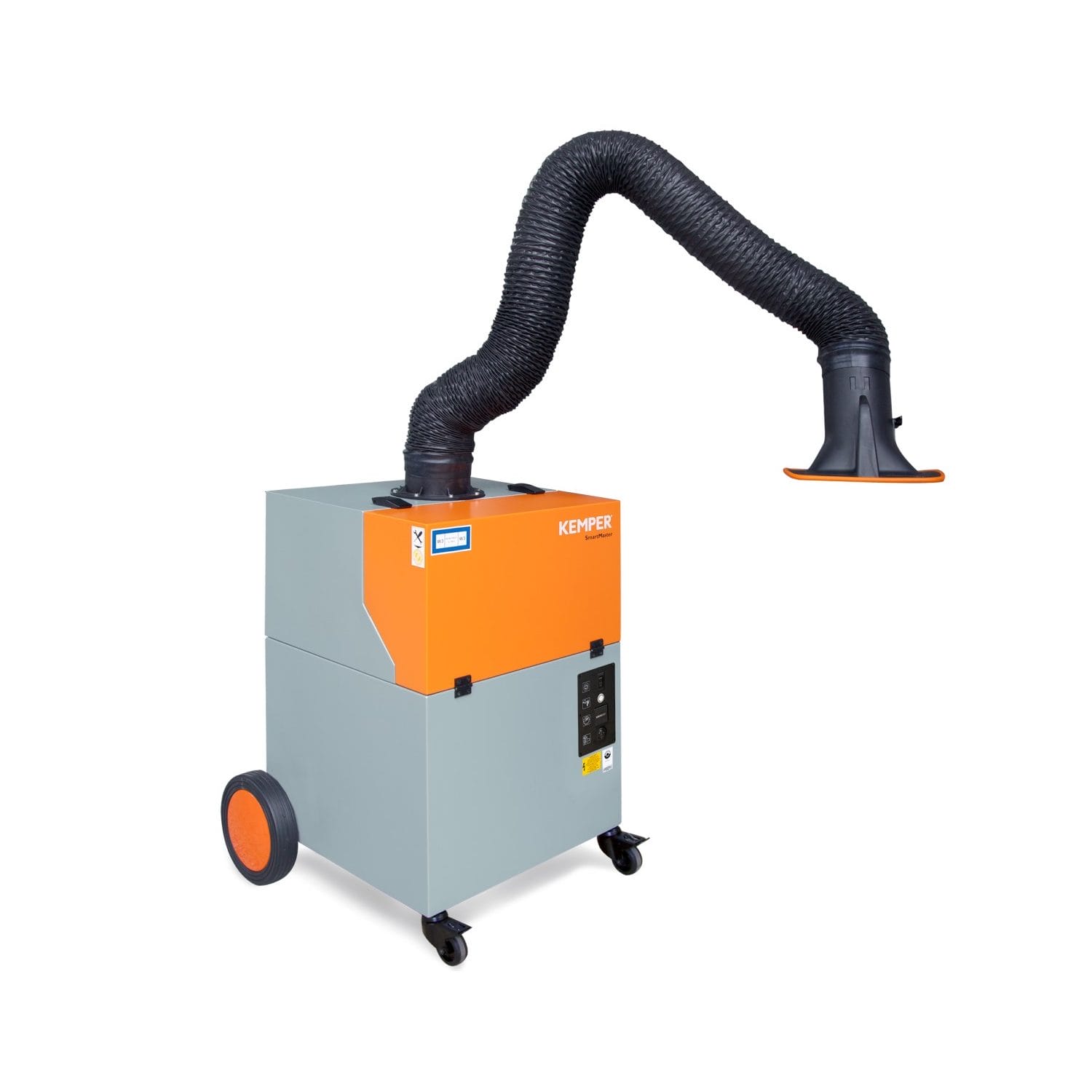

KEMPER Smartmaster Fume Extractor 110 V c/w 3m Flexible Arm

KEMPER Smartmaster Fume Extractor 110 V c/w 3m Flexible Arm

The Kemper Smartmaster welding fume extractor is ideal for lighter duty applications where low amounts of dust and welding fumes are created. This extractor is best suited for companies that predominately do tig welding and thin sheet metal mig welding processes.

This compact filter device is designed to extract the welding fumes right at the source and then exhaust them with a separation rate of more than 99%. The exhaust hood which is fitted at the end of the extraction arm is easily movable which makes it effortless for the operator to move the hood near to his workpiece. The arm is also kept rigid without any additional support needed.

You also have the additional benefit of being able to fit a suction hose to the Smartmaster unit. This is available as a 3m length and comes complete with a suction nozzle attached. The 3-stage filtering process ensures that the exhausted dust and air is purified fully before being returned to the working area.

Since the launch of the HSE Bulletin in February 2019 for the control of mild steel welding fumes, this Smartmaster unit has been very popular for most lightweight metal workshop environments. All tig welding processes generally create minimal fume and smoke during the welding task including most materials such as mild steel, stainless steel and aluminium.

Technical Data

Filter
Filter stages: 3
Filter method: Disposable filter
Filter surface: 13 m²
Type of filter: Filter cassette
Filter material: Non-woven fibre
Filter efficiency: > 99.5 %
Filter class: E12
Additional filters: Two pre-filters

Basic data
Extraction capacity: 950 m³/h
Dimensions (w x d x h): 722 x 753 x 909 mm
Weight: 71 kg
Motor power: 1.1 kW
Power supply: 1 x 230 V / 50 Hz
Rated current: 6.7 A
Control voltage: 230 V, AC
Noise level: 72 dB(A)

Additional information
IFA-Certification: W3-Approved
Fan type: Radial fan
Quantity of extraction hoses: 1
Diameter Extraction hose: 150 mm
Length extraction hose: 2 m

Please also view the range of Kemper Smartmaster pre-filters and main filter for this unit.
