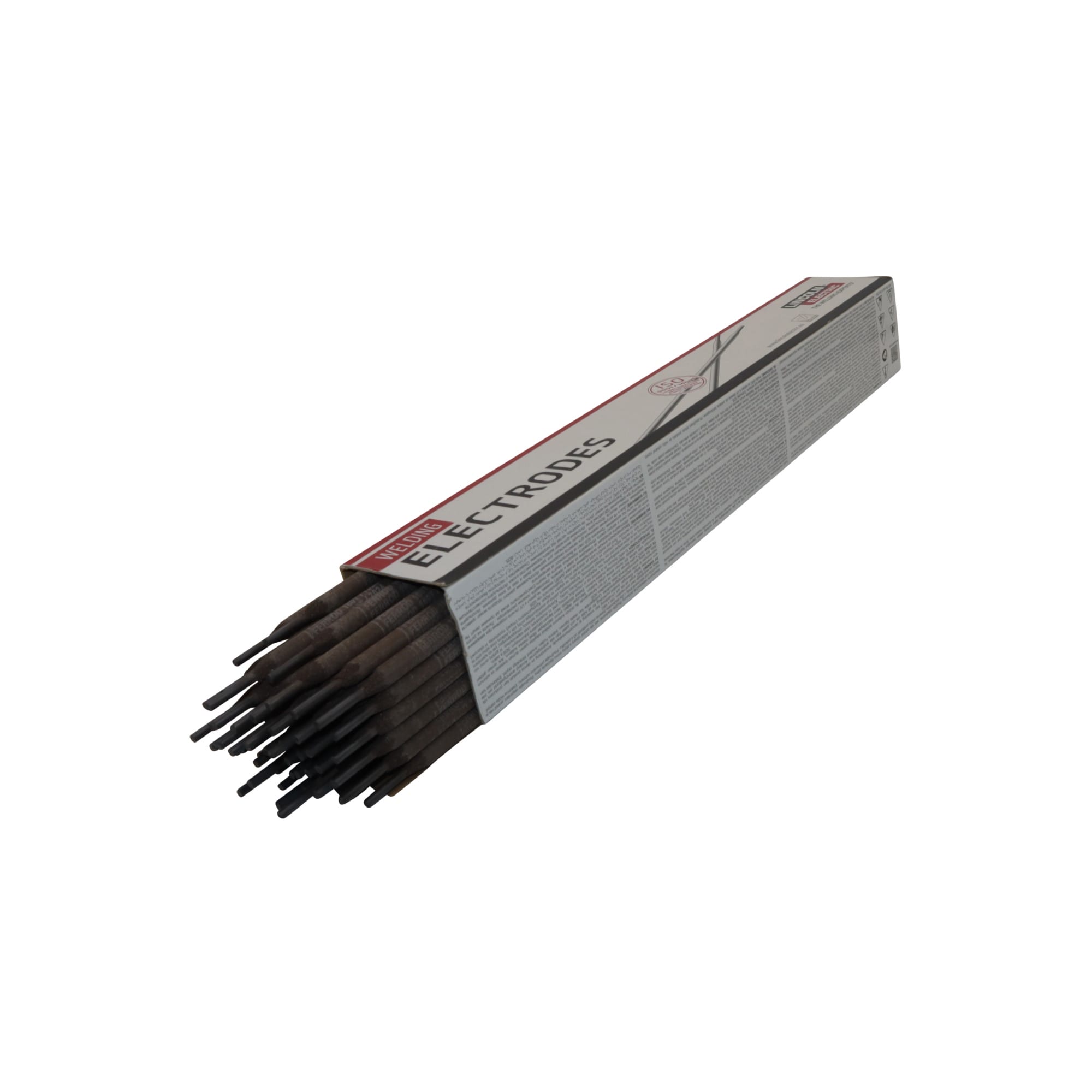

Ferrod 160T E7024 Iron Powder Electrodes 4.0 mm 5.5 Kg

Ferrod 160T E7024 Iron Powder Electrodes 4.0 mm 5.5 Kg

The Lincoln Ferrod 160T 7024 range of electrodes are generally used is all MMA stick welding applications where high welding speed is required. The E7024 grade is also known as an iron powder electrode which is ideal for making fillet welds in all flat and horizontal positions.

E7024 electrodes are characterised by a smooth quiet arc with low arc penetration which produces minimal amounts of spatter during the welding process. These electrodes have a very good slag release for laying large beads of weld quickly.

To ensure consist performance of these electrodes, the quality of the weld relies upon the product being stored correctly. If the electrode is damp, cracked or chipped this will show in the finished weld and likely need to be re-welded with a workable electrode. The flux coating assists with maximising the permissible welding current level.

Features & Benefits

• High deposition rates for high-speed welding applications
• Best suited for horizontal and down hand welding
• Eliminates over welding due to equal fillets deposited
• Excellent bead appearance and self-cleaning slag
• Useful for increased penetration will minimal root porosity
• Mainly used in the construction of ships, barges and construction equipment
• High recovery (160% for 3.2 mm and 4.0 mm electrodes, and 180% for 5.0 mm electrodes)

Classifications

• AWS A5.1 E7024
• A-Nr 1
• ISO 2560-A E 42 0 RR 7 3
• F-Nr 1
• 9606 FM 1

Examples of Materials to be Welded

Steel grades (Code) / Type

General structural steels
EN 10025 / S185, S235, S275, S355

Ship plates
ASTM A 131 / Grade A, B, D, AH32 to DH36

Cast steels
EN 10013-2 / GP240R

Boiler & pressure vessel steels
EN 10028-2 / P235, P265, P295, P355

Fine-grained steels
EN 10025 part 3 / S275, S355
EN 10025 part 4 / S275, S355
