Description

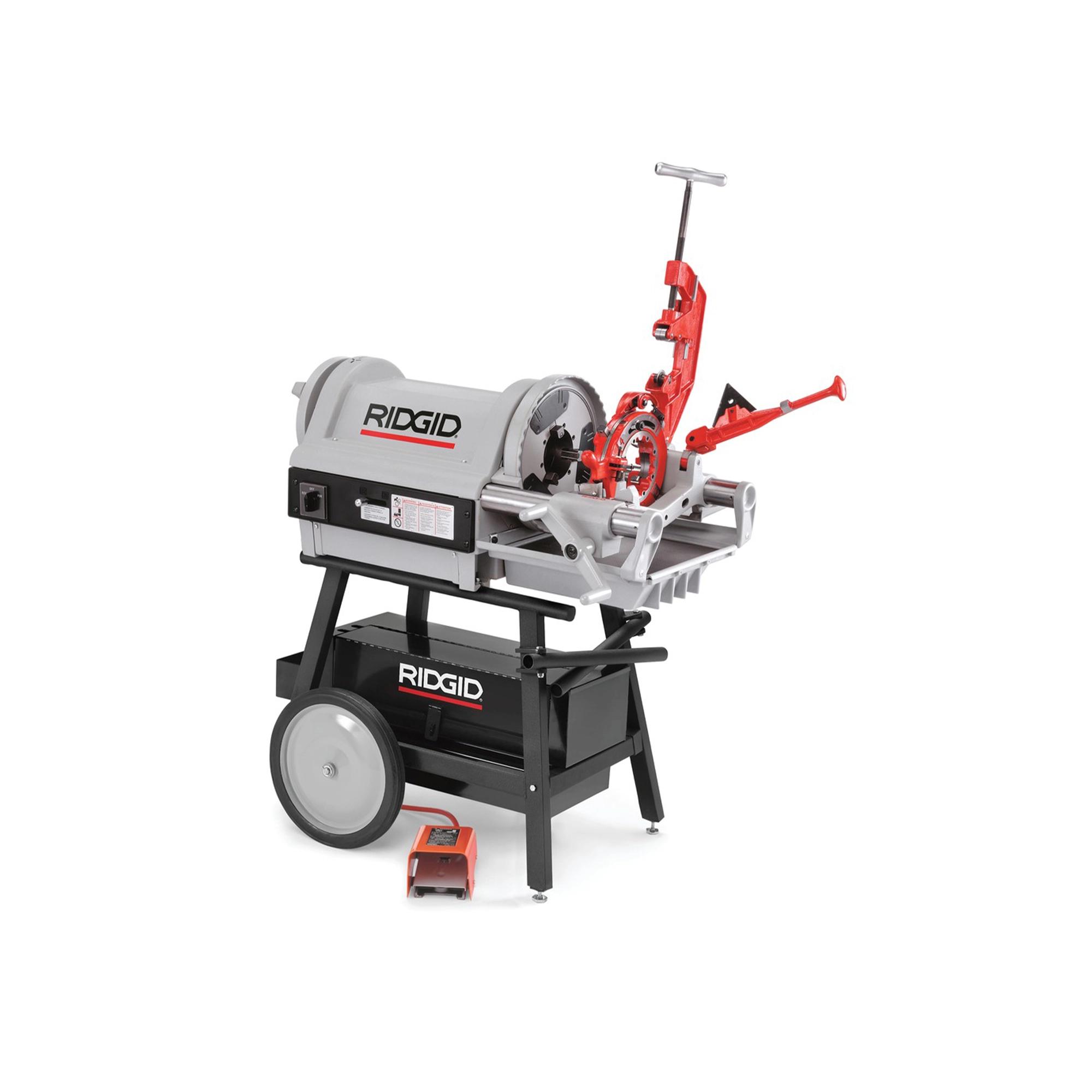

The Model 1224 Pipe Threader threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C.
- An induction motor helps minimize noise.
- A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced.
- 1/4″-2″ Universal Die Head; 2 1/2″-4″ receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads.
- Constant and proper lubrication of dies and workpiece with through-head oiling.
Specifications
| Nominal Pipe Capacity | 1/4″-2″ (6mm-100mm) @ 36 RPM, 2-1/2″-4″ (65mm-100mm) @ 12 RPM, 4″-6″ (100mm-150mm) with 161 Geared Threader. |
| Bolt Capacity | 1/4″-2″ (6mm-50mm). |
| Motor Control | Reverse/off/forward, heavy-duty rotary-type and integral foot switch. |
| Gear Box | Two-speed gear box with a 3:1 ratio. |
| Chuck | Hammer-type with replaceable rocker-action jaw inserts. |
| Rear Centering Device | Cam action. |
| Oiling Pump | Self-priming, gerotor-type, automatic-reversing, constant-flow. |
| Oiling | Through die head |
Contact us for pricing information.
