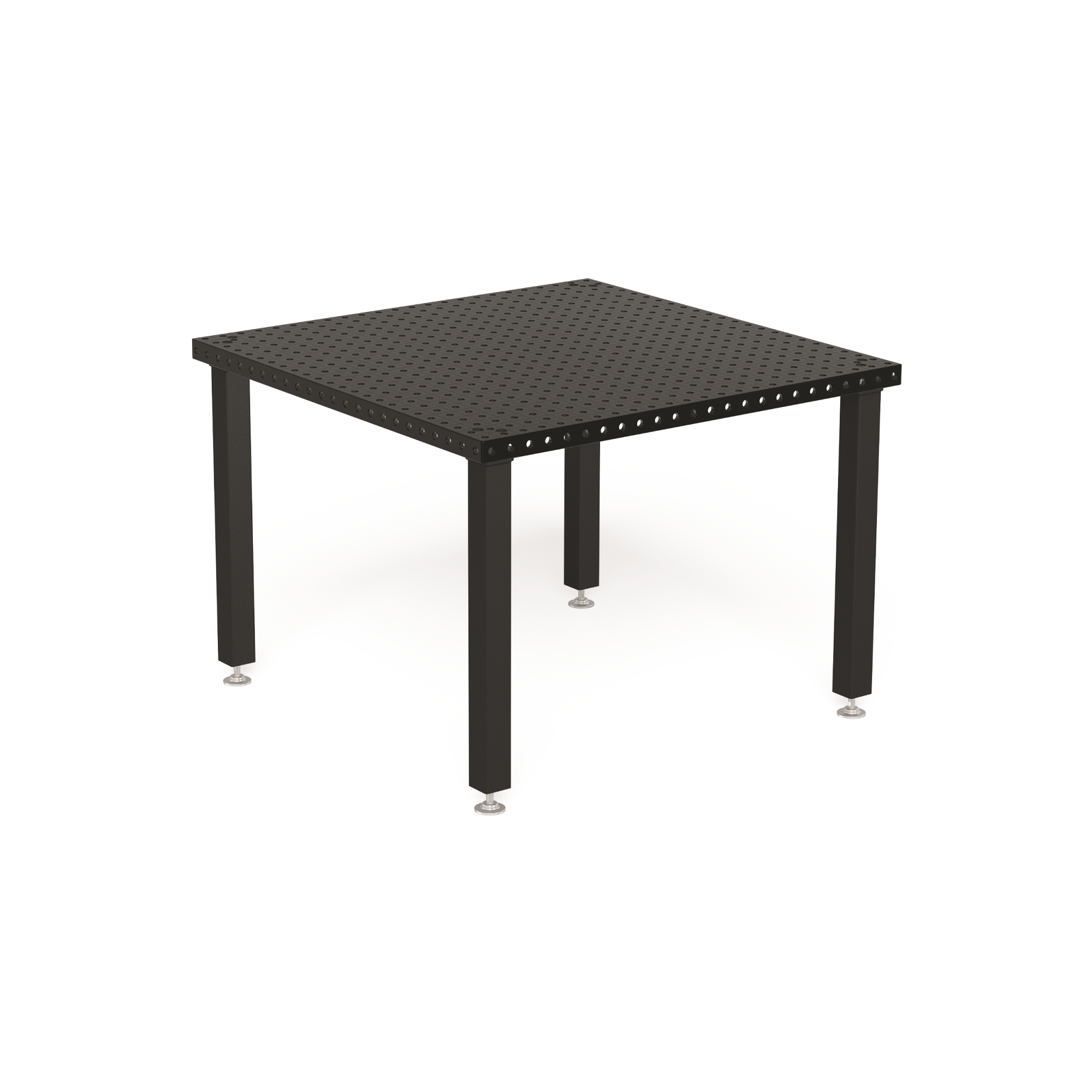

Siegmund System 16 Basic 750 Welding Table 1200x1200x50

£1,901.00 Ex. VAT

• 16mm Borehole
• 50×50 Grid
• Size 1200 x 1200 mm
• Plasma Nitration
• BAR Coating
• Modular
• 161015.P

SKU: 501-320 Categories: , Tag: Brand:

In stock


The Siegmund System 16 welding tables are the lightest tables on offer from Siegmund. Manufactured for smaller loads and the most precise working for the finest of details with a 13mm thick steel working surface with ribbing reinforcement on the underside to ensure stability when working.

Ranging from the System 16 Basic, the most affordable welding table from Siegmund to the new Extreme 8.7 PLUS. Made with the highest quality through-hardened tool steel special alloy Siegmund 8.7X.

With each table having boreholes of 16mmØ all toolboxes, stops, clamps and accessories are compatible with all welding tables in the System 16 range.

The boreholes on the work surface are in a 50 x 50 grid on all System 16 tables with 1mm scaling along the perimeter of the table from the Professional 750 upwards.

All the welding tables in the System 16 range are available with or without the option of plasma nitration but it is highly recommended as it vastly extends the lifespan of the table as well as increases the surface hardness, resistance to impact and scratches, welding spatter and corrosion.

All System 16 welding tables are available with a range of alternative legs. If you’d prefer legs that are height adjustable, with lockable castors for ease of movement or floor mounted for maximum security and stability.

Siegmund Welding Tables are available to order with a wide range of tool sets and accessories including clamps, supports, prisms, vices, stops, squares and bolts.

View the full range of Siegmund Accessories and Siegmund tool sets compatible with the System 16

If you think that the System 16 might not be robust enough for the process you have in mind, check out the System 22 and System 28 for more heavy-duty welding tables.

Siegmund Welding Table

Siegmund System 16 Basic 750 welding tables are manufactured of S355J2+N steel and additionally plasma-nitrided and coated. The most economical of the Siegmund tables and primarily made for lighter workloads. Dimensions of this System 16 welding table is 1200mm x1200mm (Range available from 1000mm x 1000mm to 1500mm x 1000mm) with a bearing load of 1000kg based on even load distribution.

This table is available with height-adjustable legs (600 – 1000mm) & castors. Note: Siegmund welding tables are designed to be modular and we can supply these with a wide range of clamps, tools and accessories as well as fixed and adjustable table legs with different weight capacities. If you’re looking for a custom setup, please contact the sales team on 01432 346190 or send an email to

Technical Information

Borehole Ø 16 mm
Borehole spacing 50 mm
Borehole spacing of table side 50 mm
Grid element spacing 50 mm
Height of table side 50 mm
Material thickness approx. 11.5 – 13 mm


Siegmund welding tables come with a wide range of accessories including clamps, bolts, squares, stops, vices, prisms and supports. For the full range of Siegmund products we supply including all table sizes and accessories, please view the product range PDF here.
