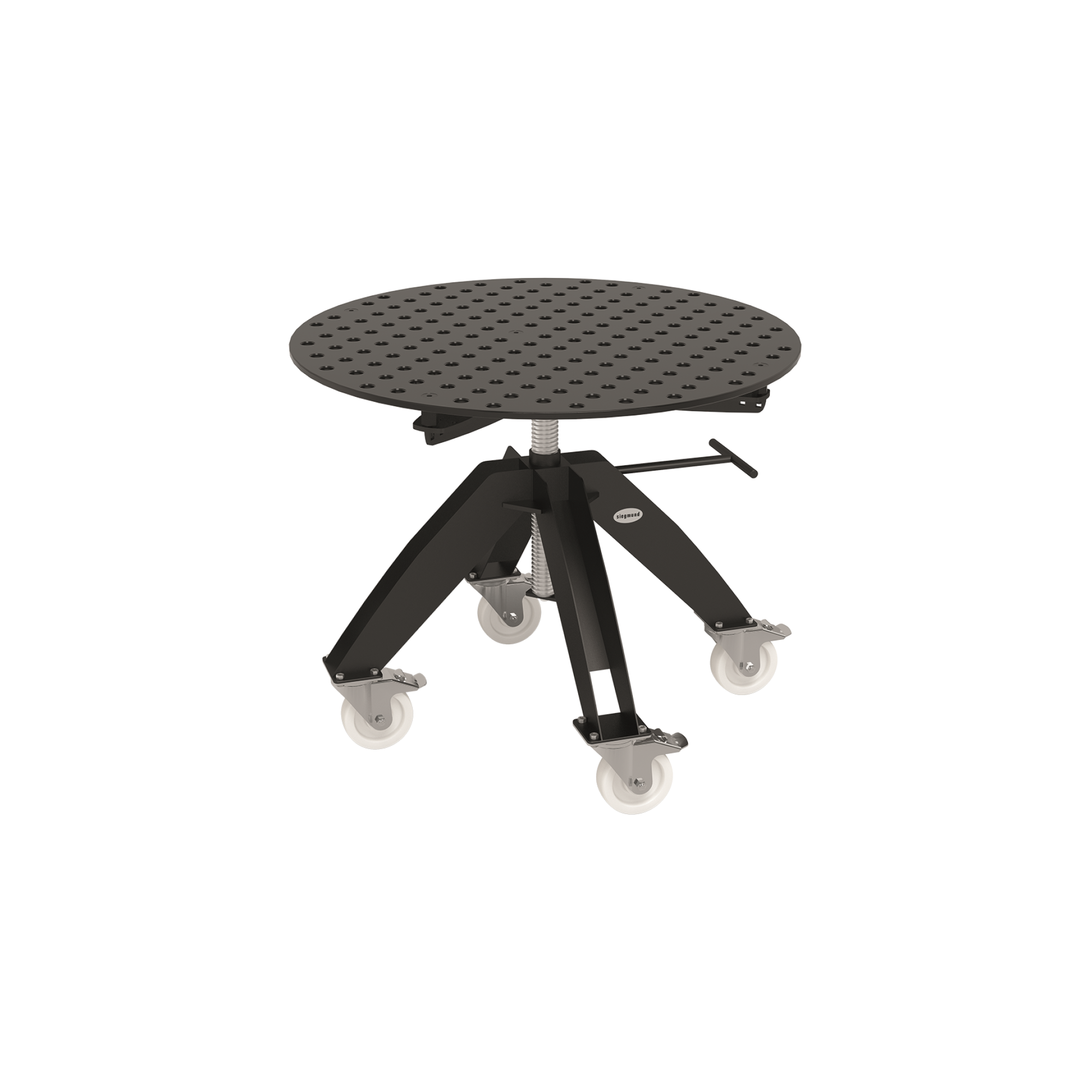

System 28 Rotating Table Portable
The Siegmund 28 Rotating Table has an adjustable height ranging from 780mm to 1100mm which can be locked into position by a side locking lever. The working height is infinitely variable making it adaptable and easy to use for various applications. The rotating table allows for 360 degree handling providing easy access to all sides of the workpiece, this makes it the perfect ergonomic and space saving addition to the workplace.
The steel constructed basic frame is powder-coated and can be pre-assembled upon collection or delivery with customers only needing to install the table top. It has sturdy castors with locking breaks which gives it a maximum load capacity of 1000kg, which is the same as the static version.
Use the Siegmund Welding Table Configurator here.
Through-hardened tool steel X8.7 Perforated plate
The worksurface has boreholes, measuring 28mm in diameter, in a diagonal grid. It is a perforated plate which provides durability and longevity. It is made of Premium Light through-hardened tool steel X8.7 of which Siegmund is the only manufacturer offering this as a standard feature. The premium steel can withstand extremely high workloads and has an impressively high resistance against stroke impact. The steel offers immense levelness and even surface finish which makes using it much easier; retention of this flatness lasts many years which increases long-term savings. Through-hardened tool steel is much harder and more resilient than standard steel.
The perforated plate is plasma nitrided and BAR-coated ; plasma nitration is an unmatched surface hardening and tempering treatment that Siegmund perform. The thermo-chemical procedure of plasma nitration results in more wear-free, corrosion-resistant and durable surfaces. This is a very profitable way of enhancing durability and increasing the life span by over double! The clamping force of the bolt will also substantially increase and the loadability of the table will increase by approximately 20-30%.
Technical Specifications
Height- 780 mm – 1100 mm
Weight- 173 kg
Diameter- 1100 mm
Borehole diameter- 28 mm
Material thickness- approx. 15mm
For clamping with 280511 bolts Spacer Ring 800653.N is required.
View the whole range of Siegmund tools and Accessories compatible with the System 28 Rotating table. If you would like some assistance, please don’t hesitate to contact one of our team members via live chat, email or telephone.
Siegmund welding tables come with a wide range of accessories including clamps, bolts, squares, stops, vices, prisms and supports. For the full range of Siegmund products we supply including all table sizes and accessories, please view the product range PDF here.
