Description

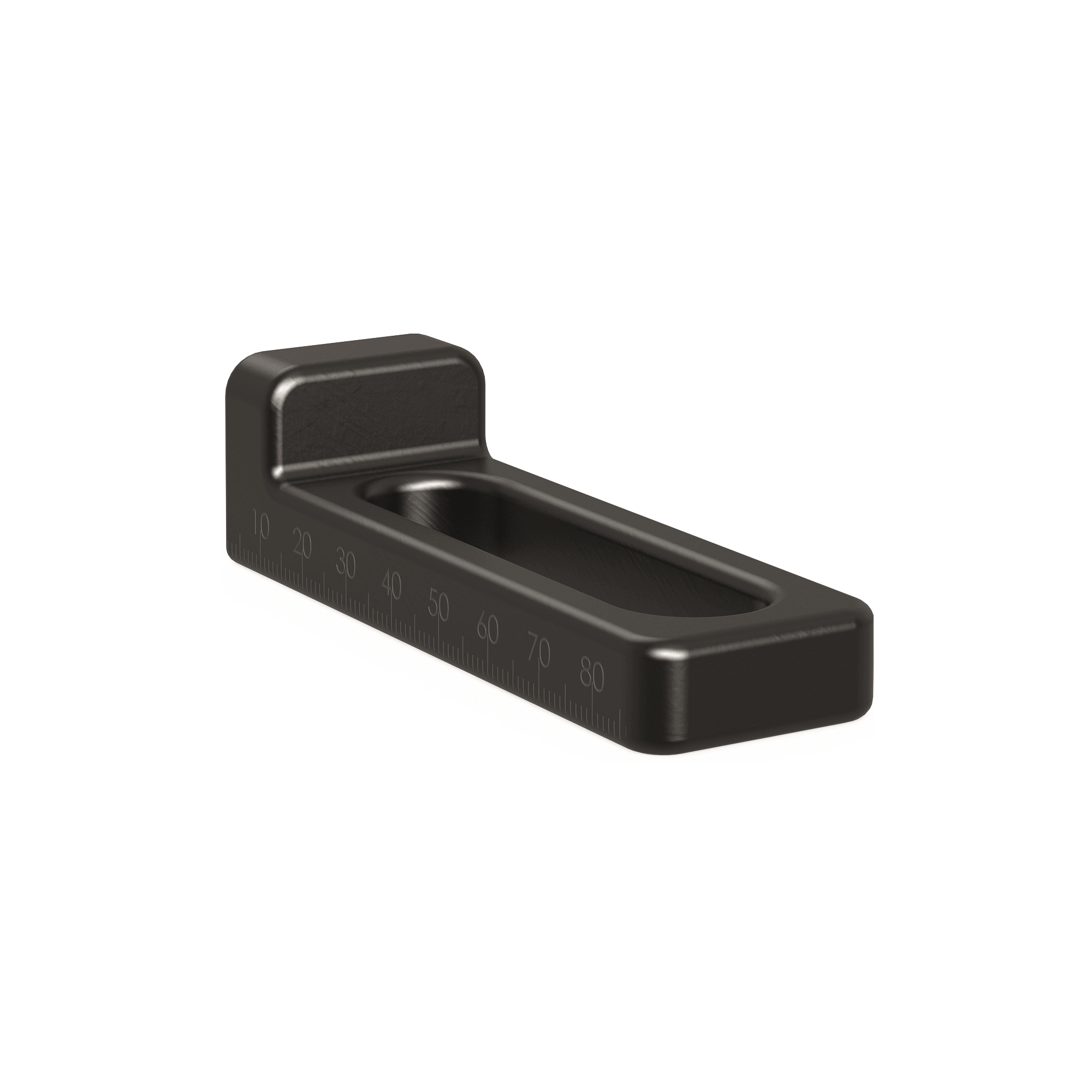

Made from the same high quality nitrided steel as the welding tables, this stop and clamping square (160108.N) allows for accurate and adjustable movements with the elongated clamping hole and fine scaling on both sides.
The dimensions of the stop are 90mm long, 30mm wide and 25mm high. Usable as a stop for larger projects, its more compact size lends well to the smaller intricate work that the System 16 is best suited to.
Able to be attached to all System 16 squares, creating the possibility for three-dimensional clamping.
When working with aluminium or if TIG-welding a chromed version of this stop and clamping square is available upon request.
This stop and clamping square is available as part of the Siegmund tool sets for the System 16.
If you can’t find what you’re looking for, please contact us via live chat, phone or email. A member of our team will be very willing to help.
Siegmund welding tables come with a wide range of accessories including clamps, bolts, squares, stops, vices, prisms and supports. For the full range of Siegmund products we supply including all table sizes and accessories, please view the product range PDFÂ here.
