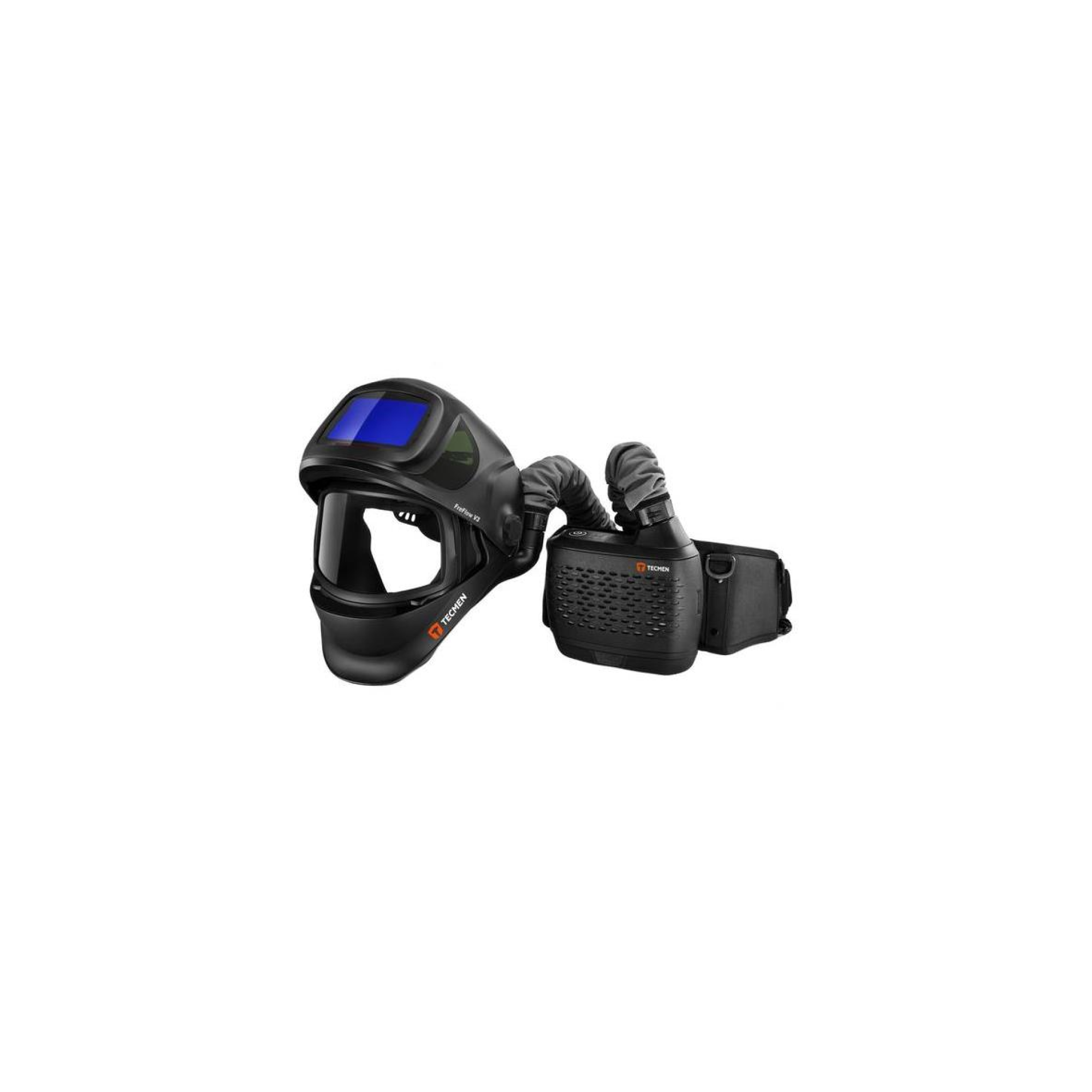

Tecmen ADF950S PAPR FreFlow V3 Helmet System
The helmet boasts a flip-up design, Optical Class 1/1/1/1, and a curved grinding visor offering a spacious 200 x 120 mm viewing area.
Key features of the Tecmen FreFlow PAPR include a ≥99.97% filter efficiency, real-time digital display on the blower unit, and a rechargeable Li-ion battery providing up to 9 hours of use at 170 litres per minute. Safety is paramount with audible, flashing, and vibration alarms alerting operators to potential issues.
Tecmen FreFlow PAPR Specification:
- Airflow Rate (LPM): Low (170) / High (210)
- Battery: Rechargeable Li-ion
- Standard Battery (Hours): Low (9)/ High (5-6)
- Heavy Duty Battery (Hours): Low (15)/ High (9)*
- Battery Charge: 1hr Std / 2hr Heavy Duty
- Battery Life: 550 charges
- Particle Filter P3
- Filter Efficiency: 99.97%
- Auto Alarms: Visible, Audible, Vibrate
- Operating Temp: -5°c to 55°c (23° to 131° F)
- Weight (Blower Unit & Battery): 1.2kg
Tecmen V3 Helmet Specification:
- Optical Class: 1/1/1/1
- Viewing Area: 107 x 75mm
- Cartridge: 156 x 123 x 33mm
- Grinding Lens View: 200 x 120mm
- Modes: Welding/Cutting/Grinding
- Arc Sensor: 4
- Light State: DIN 3.5
- Dark State: DIN 5-8 / 9-13
- Shade Control: Internal, Digital Display
- Power: Manually On/Off, Auto Off
- Sensitivity Control: Low-High, Digital Display
- UV/IR Protection: Up to DIN16
- Power Supply: Solar cell, 2 x CR2450 lithium battery
- Switching Time: 1/25,000 s light to dark
- Delay (Dark to Light): 0.1 ~ 1.0s by dial control
- Low Amperage TIG rated (AC – DC): ≥ 2 amps
- Applications: MMA, TIG, TIG Pulse, MIG Pulse, Plasma Cutting/Welding, Air Arc Gouging, Grinding
