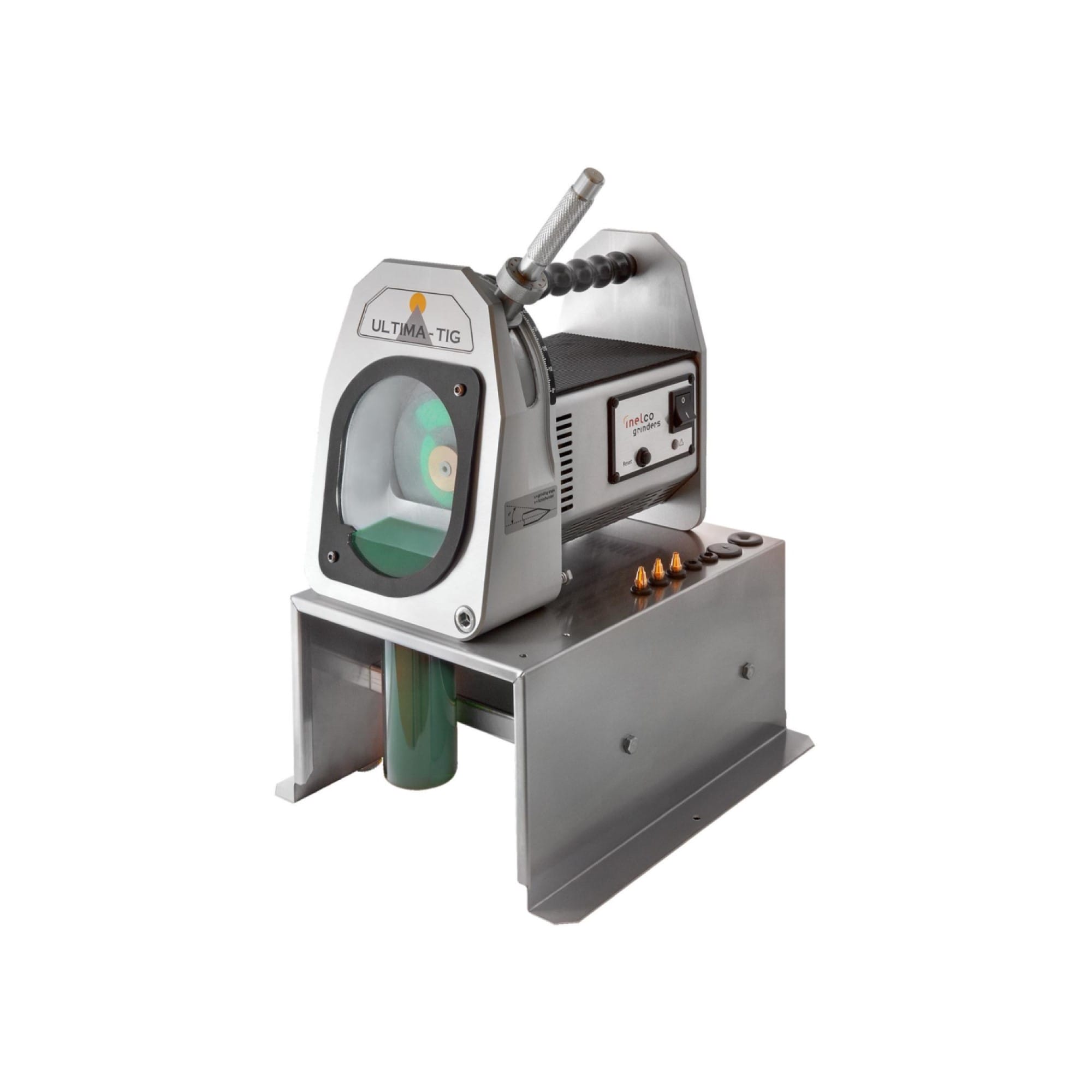

Ultima-TIG Tungsten Grinder 230 V

The Ultima-TIG Tungsten Grinder 230v demonstrates an eco-friendly way to grind perfect accurate and repeatable angles on tungsten electrodes.

The Ultima-Tig is constructed with a unique, fully enclosed grinding chamber and dust disposal container that automatically collects all toxic dust particles. This results in a healthy dust-free environment for the operator, eliminating the need for separate exhaust systems. The sealed container can be disposed of into landfill (in accordance with HSE OC 564/6 REV).

Cold wet grinding combined with the diamond wheels high grinding speed ensures that the tungsten electrode always has a polished and even surface.

With the Ultima-Tig you will achieve the exact angle that you require. A special locking device positions the electrode precisely, and the grinding is carried out in the correct longitudinal direction along the electrode. A precise angle is not only important to the quality of the welding seams but it increases the number of re-ignitions between grinding, thus prolonging the electrode life.

The Ultima-Tig is easy to use. Place the electrode in the electrode holder. Adjust the pointer to the required grinding angle and insert the tungsten electrode into the combined stick-out and locking device. After the grinding has taken place you can, if needed, flatten the tip by placing the electrode clamp in the 90-degree position.

Due to the use of an electrode holder, the Ultima-Tig is able to grind electrodes as short as 15mm with a standard electrode clamp, and 8mm with a special electrode clamp. The use of the electrode holder also ensures a precise and concentric tip every time.

The Ultima-Tig is available in 230V and 110V and comes complete with a 2-metre cable, 250ml bottle of grinding liquid, diamond super abrasive wheel, electrode clamps (1.6mm-3.2mm), electrode holder, disposable container complete with liquid and a stainless steel stand.

The Ultima-Tig is CE marked and meets all applicable  EU directives.
