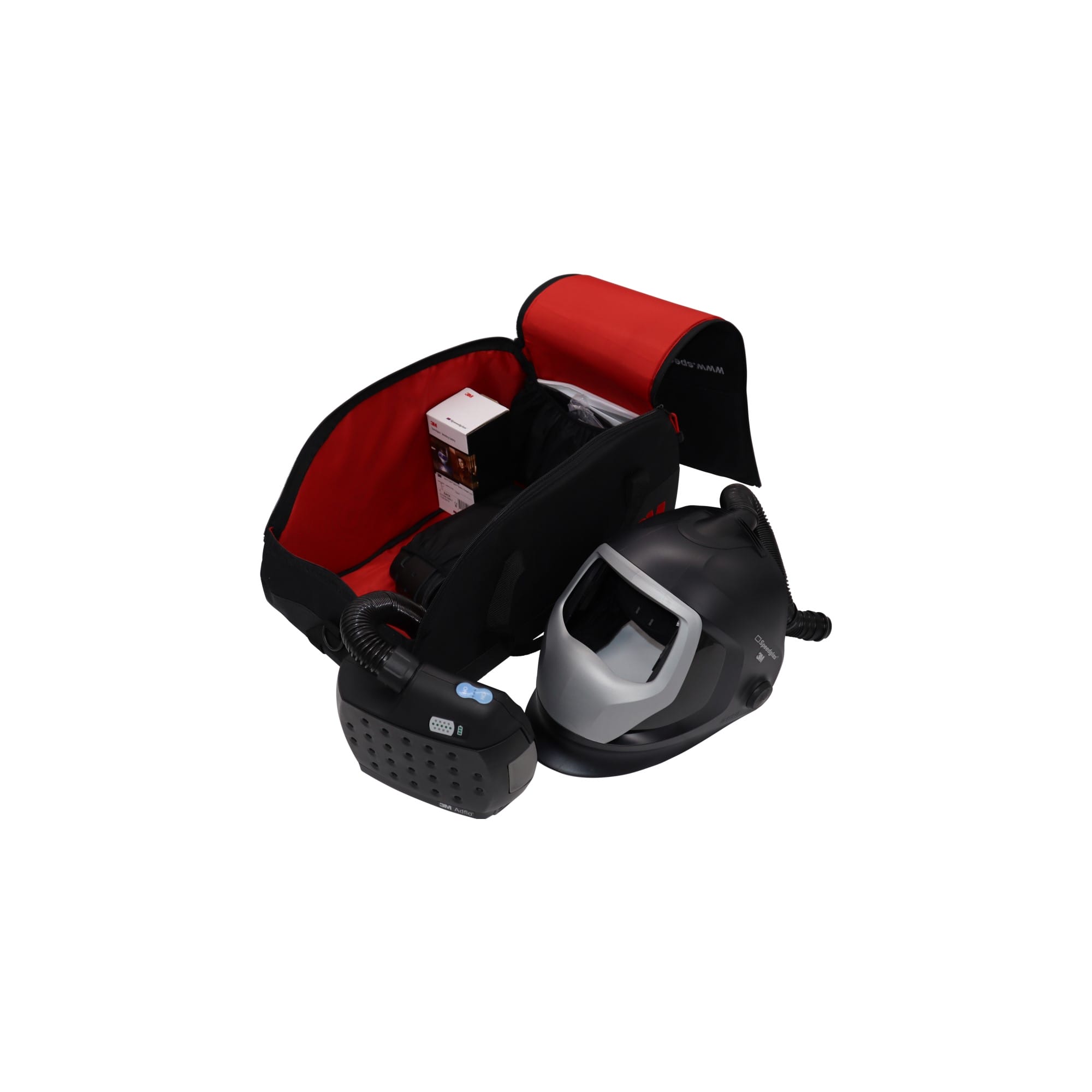

567700 3M Speedglas 9100 Adflo Welding Helmet System

£1,057.24 Ex. VAT

• 3M 567700
• Speedglas 9100
• Adflo
• Welding Helmet System
• No ADF
• Effective face and respiratory protection during welding applications
• Ideal for all MIG/MAG, TIG & MMA welding
• Comes with Storage Bag
• Switching time delay: 5 levels
• Nominal Protection Factor 500 (TH3)

SKU: 470-030 Categories: , Tag: Brand:

567700 3M Speedglas 9100 Adflo Welding Helmet System

3M Speedglas produce top-quality air fed systems that are ideal for all welding applications including MIG/MAG, TIG and MMA. The 3M Speedglas Adflo Welding Helmets are available as both non-flip and flip-up versions. This range of respiratory PPE is designed for use in all welding applications to protect the operator from the dangerous fumes and dust created in the metal fabrication environment.

The 9100 model has the non-flip-up welding filter which means the operator must remove the helmet when changing to a grinding process. The helmet can be fitted with an ADF of your choice including the 9100V, 9100X, 9100XX & 9100XXi. The main differences between these ADF’s is the viewing area size: –

• 9100V (500005) = 44mm x 93mm
• 9100X (500015) = 54mm x 107mm
• 9100XX (500025) = 73mm x 107mm
• 9100XXi (500026) = 73mm x 107mm / Hi-Definition True Colour ADF

Since the launch of the HSE bulletin in February 2019 regarding the control of hazardous fumes created during the welding of mild steel, these air fed helmets have been very popular for most fabrication and engineering workshops. As stated in the bulletin, ‘Where engineering controls are not adequate to control all fume exposure, adequate and suitable respiratory protective equipment (RPE) is also required to control risk from the residual fume.’

Features & Benefits

• Comes with 3M Adflo Powered Air Respirator
• Fits with 3M™ Speedglas Welding Filter Series 9100 (passive or auto-darkening), to be ordered separately. This includes the 9100V, 9100X, 9100XX & 9100XXi ADF’s
• Side windows (shade 5) enhances the welder’s peripheral vision
• 3M Adflo Powered Air Respirator helps protect you against both particles and gases in one system
• Nominal Protection Factor 500 (TH3)
• Gas filters and odour filters are sold separately
• The slim profile and ergonomic design make it lightweight and suitable for tight welding spaces
• The adflo is supplied with a self-adjusting QRS breathing tube, prefilter, spark arrestor, particle filter, standard battery and charger.

Product Information

• Battery Life: Turbo: approx. 7-9 hours
• Battery Type: Turbo: Lithium-ion
• Cartridge or Filter Type: Particle filter (gas filter or odour filter available as accessories)
• Charging Time: Turbo: approx. 4,5 hours
• Dark Shades: Shades 9-13
• Headgear Type: Welding Helmet
• Product Code: 567700
• Product Series: Speedglas 9100 FX Air, Adflo
• Product Type: Helmet without welding filter
• Protection Level: NPF 500
• Standards/Approvals: EN 12941 TH3, EN 175, EN166:BT, EN175: B
• Switching Time Delay: 5 levels (TIG>20A & MIG/MAG, Stick, Tack)
• Typical Application: Metal Processing
• Welding Filter Number: 3M™ Speedglas Welding Filter Series 9100
• Welding Process: Grinding

The latest technology 3M Speedglas 9100XXi ADF is an ideal choice to complete this air fed welding helmet package.
