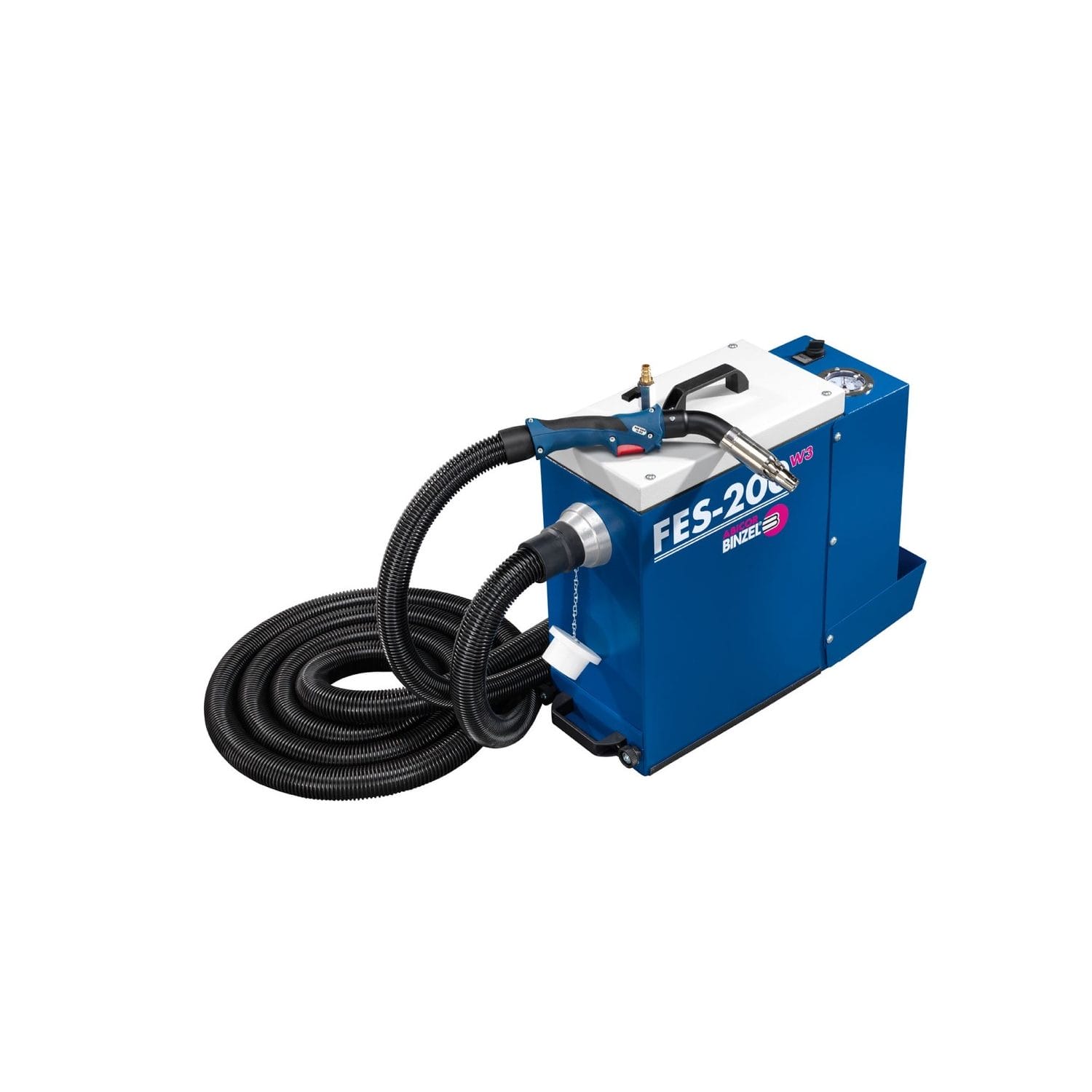

Binzel FES200 W3 Fume Extractor & RAB501D W/C Torch 5 m

£2,066.28 Ex. VAT

• FES200
• Weight: approx. 24 kg
• Max. air flow: 200 m³/ h
• Connection diameter: 50 mm
• Max. vacuum: 19,000 Pa
• Noise level: 65 dB (A)
• Voltage: 115 V, 50/60 Hz | 230 V, 50 Hz
• Engine performance: 1.0 kW • Filter: permanent filter dust class M, 0.8 m²
• Dimensions: length 630 mm; width 210 mm; height 590 mm
• Supplied with Binzel RAB501D Watercooled Fume Torch 5mtr

SKU: 100-137 Categories: , Tag: Brand:
Compare
Buy now, pay later with Klarna. Learn more
Description

Binzel FES-200 Fume Extraction W3 System

The Binzel FES-200 fume extraction unit is very mobile, powerful and easy to handle. This unit was one of Binzels first on-torch fume extractors available on the market and has proved very successful for most welding workshop environments. This machine functions most effectively in conjunction with the Binzel range of fume mig torches.

This unit is lightweight and very portable which is ideal for applications where space is an issue. This extraction unit can be mounted onto the mig welding plant or even the wire feed unit which gives the operator more space around his working area. In the robust workshop environments this unit located off the floor is ideal and also prevents potential damage from nearby machinery or goods being transported in the vicinity.

These welding fume extractors have been designed to capture harmful gases and dust created during the welding processes. The torch takes the fumes away from the source which means only a small percentage will escape into the surrounding environment. With the RPE and air fed welding helmets now an essential part of the welders PPE, these units protect them for any other dust of fumes in the surrounding environment within the workshop.

Since the launch of the HSE Bulletin in February 2019, most general welding and fabrication companies have implemented the use of on-torch extraction into their facilities for the protection of their welders and staff within the workshop area. These fume extractors conform with the guidelines set out by the HSE with their change in enforcement expectations for mild steel welding fumes.

Features & Benefits

Certified: IFA certified W3 approval (FES-200W3). The new W3 version is licensed for all CrNi steels.
Weight: This is a compact design and weighs approx. 23kg.
Filters: The FES-200 has an integrated manual filter cleaning system which extends the use of the filter.
Pressure gauge: This alerts the operator when the filter should be cleaned which enhances the lifespan of the main filter.
Filter contamination meter: This only needs cleaning when necessary.
Acoustic signal if cleaning is required (FES-200W3).
Integrated automatic start/stop system: This reduces operating expenses and wear by switching off the fume extractor when the operator has stopped welding.

W3 certification

The FES-200 unit is W3 certified which means it meets the demands of welding nickel and chrome-based materials together. This is certified by the Institute of Work Safety with the W3 license for all welding applications or related procedures with emissions suitable to KMR / 1.2 material2. This prevents otherwise harmful effects by the filtering of these exhausts safely from the operator.

Technical Data

Weight: approx. 24 kg
Max. airflow: 200 m³/ h
Connection diameter: 50 mm
Max. vacuum: 19,000 Pa
Noise level: 65 dB (A)
Voltage: 115 V, 50/60 Hz | 230 V, 50 Hz
Engine performance: 1.0 kW
Filter: permanent filter dust class M, 0.8 m²
Dimensions: length 630 mm; width 210 mm; height 590 mm
Supplied with Binzel RAB501D Water-cooled Fume Torch 5mtr

We also offer a range of Kemper wall-mounted fume extraction arms should the on-torch solution not suit your requirements.
