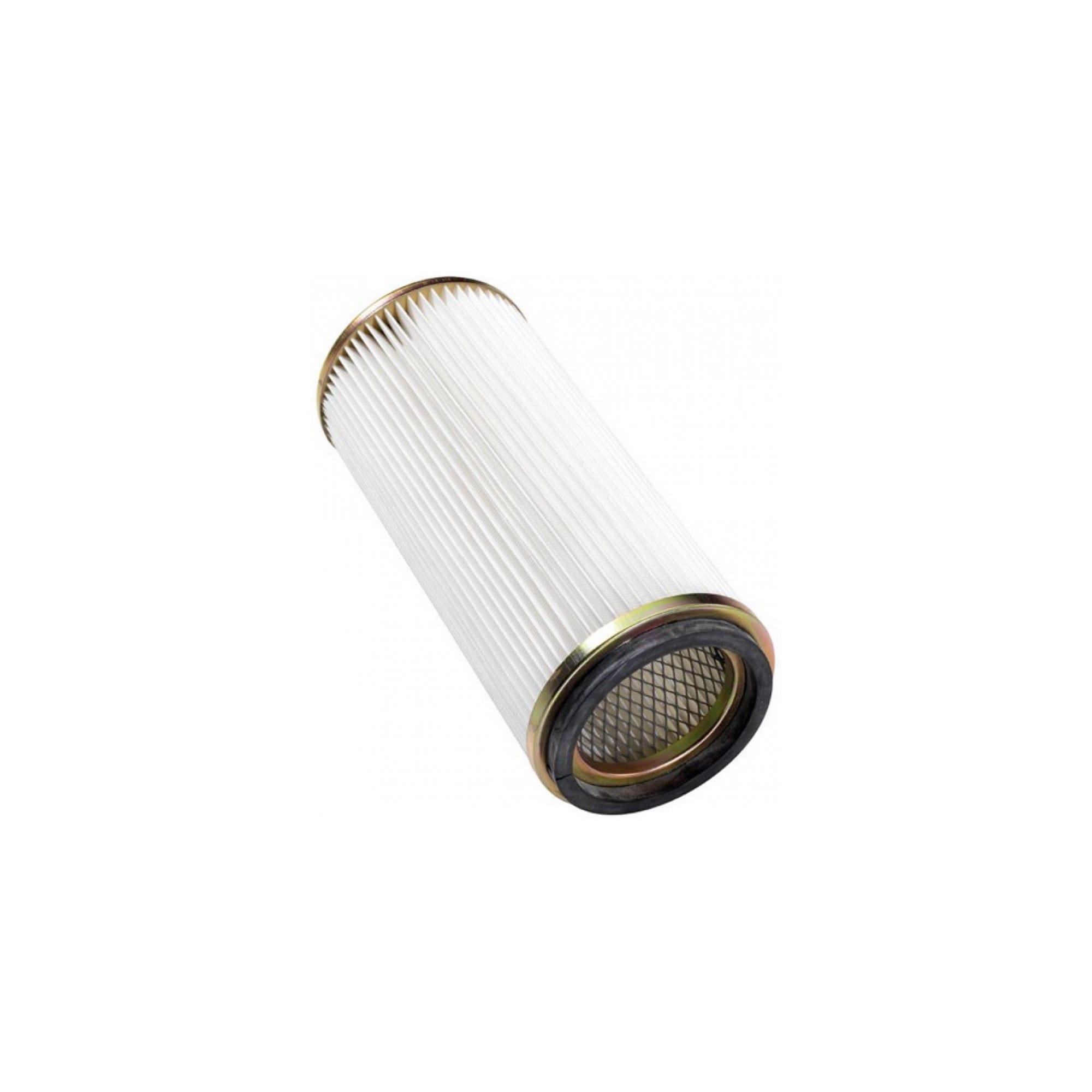

Binzel FES-200 Filter Cartridge

£183.64 Ex. VAT

• FES-200
• On-torch fume extraction
• Filter
• Replacement filter cartridge for Binzel FES-200 on-torch fume extraction unit.
• The permanent filter is located in the filter housing and removes the harmful welding fume particles from the absorbed air.
• The cleaned air is led back into the work area via the exhaust casing.

SKU: 110-653 Categories: , Tag: Brand:
Compare
Buy now, pay later with Klarna. Learn more
Description

The fume extraction system is equipped with a safety device to monitor the minimum air volume flow to be extracted. A manometer is used for monitoring the point at which the minimum volume flow is reached is marked on the dial scale. If the manometer indicates a higher vacuum (>180 mbar), the filter must be cleaned.

If the minimum volume flow is not reached, the manometer indicates a high value and an acoustic signal sounds. The filter must be then cleaned with compressed air. During the dedusting procedure by rotation, the exhaust fume deposits are removed from the filter elements and the filter is refreshed. The separated dust is collected in the dust collecting drawer.

After longer operating times, the fine dust penetrates into the filter and the filter becomes clogged. Even a dedusting of the filter cannot remove this dust. The filter must be replaced by a new one.
