F-Tech Armur Mobile Fume Unit 230 V & 3m Armotech Arm
£2,487.69 Ex. VAT
• Weight: 85 Kg
• Motor Power: 1.1 Kw
• Clogged filter alarm
• Filter Efficiency: 99.5% E12 Classification
• Rated Input Power: 230V – 50 Hz
• Flow Rate Pressure: 1400 m3/h (At Hood)
• Noise Levels: 69 dB(A)
• Dimensions: 1010 x 520 x 920 mm
• Alarm log
• Fully serviceable
• Readily available accessories and spare parts
• Warranty: 5 years (register online within 28 days)

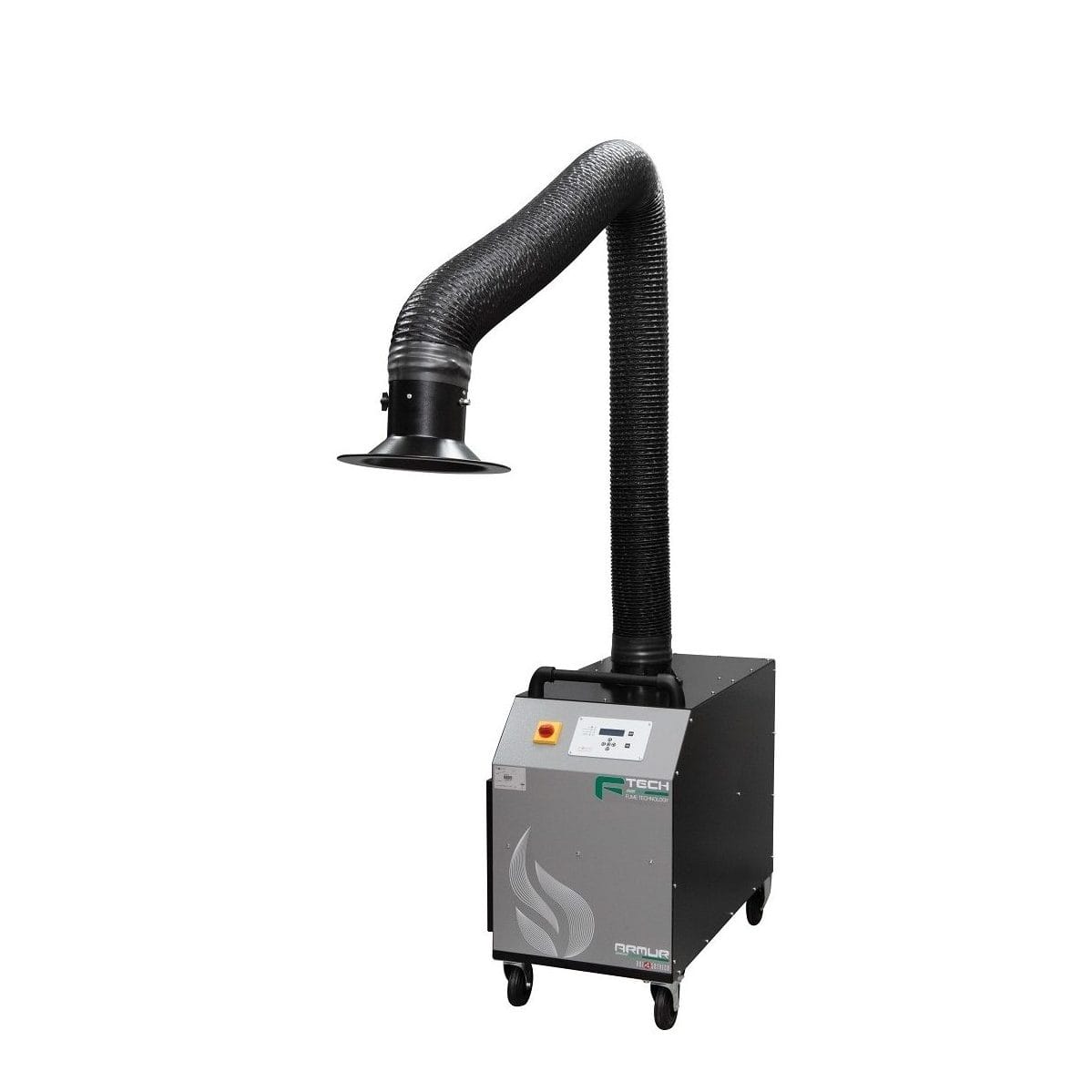

Buy now, pay later with Klarna. Learn moreThe F-Tech Armur Mobile LEV Fume Unit 230v is designed for the extraction of fumes produced from welding, micro dust, vapours and odours, making it suitable for mild steel extraction. It comes complete with a highly durable 3 meter Armotech extraction arm, which has a self-supporting pantograph structure and is meticulously produced for the extraction of welding fumes and micro-particulate. Crafted from aluminium the hose is light to provide enhanced mobility. The hood of the extraction arm contains a manual damper that assists in the regulation of airflow.
The machine is very portable with the 4 swivel castor wheel units for ease of movement around the workshop.
Features & Benefits
- Armotech suction arm designed for maximum efficiency, high maneuverability and robust
- High performance 3-metre positional suction arm
- User-friendly digital panel
- Alarm displays if filter becomes clogged
- Hourmeter
- Fully serviceable
- Also available in 110v
Technical Data
- Filter efficiency: 99.5% E12 classification
- Noise: 69dB(A)
- 1400 m3/h flow rate pressure at hood
- Dimensions: 1010 mm x 520 mm x 92 mm
- Weight: 85kg
