Description

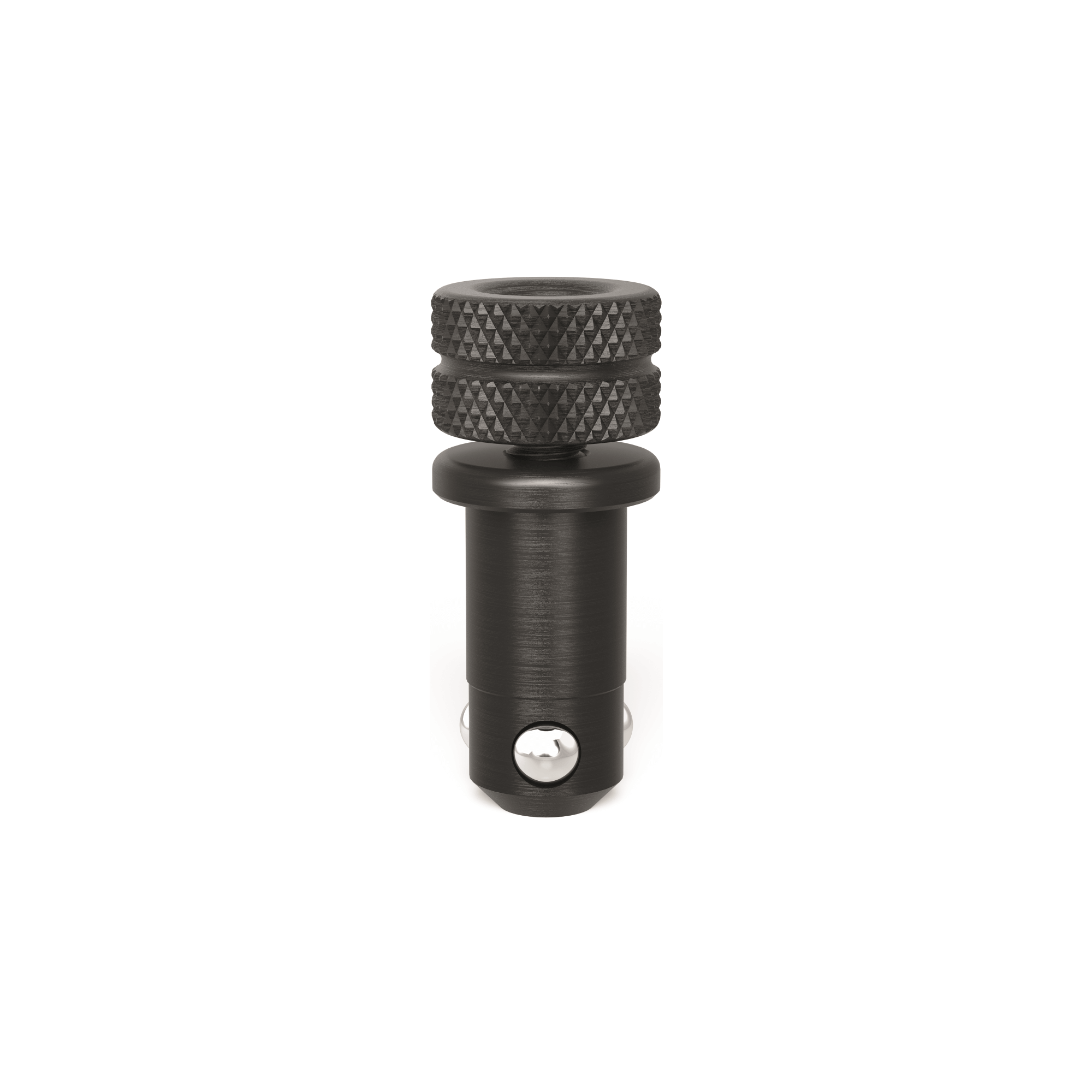

This fast-clamping burnished Siegmund Bolt (160511) is the best connecting element between Siegmund tooling and components.
Made without the O-ring slot which guarantees a smooth surface of the bolt body.
Also suitable for clamping aluminium profiles it is recommended that the bolts must be hand tightened only via the screw top when clamping this material.
This bolt is 53mm long with a diameter of 16mm. With a maximum shearing force of 55kN and a tensile force of 10kN. The tightening torque for steel is 10Nm and 2.5Nm for aluminium.
These bolts are not for connecting Siegmund welding tables together.
This bolt comes as part of the Siegmund tool sets for the System 16.
