Description

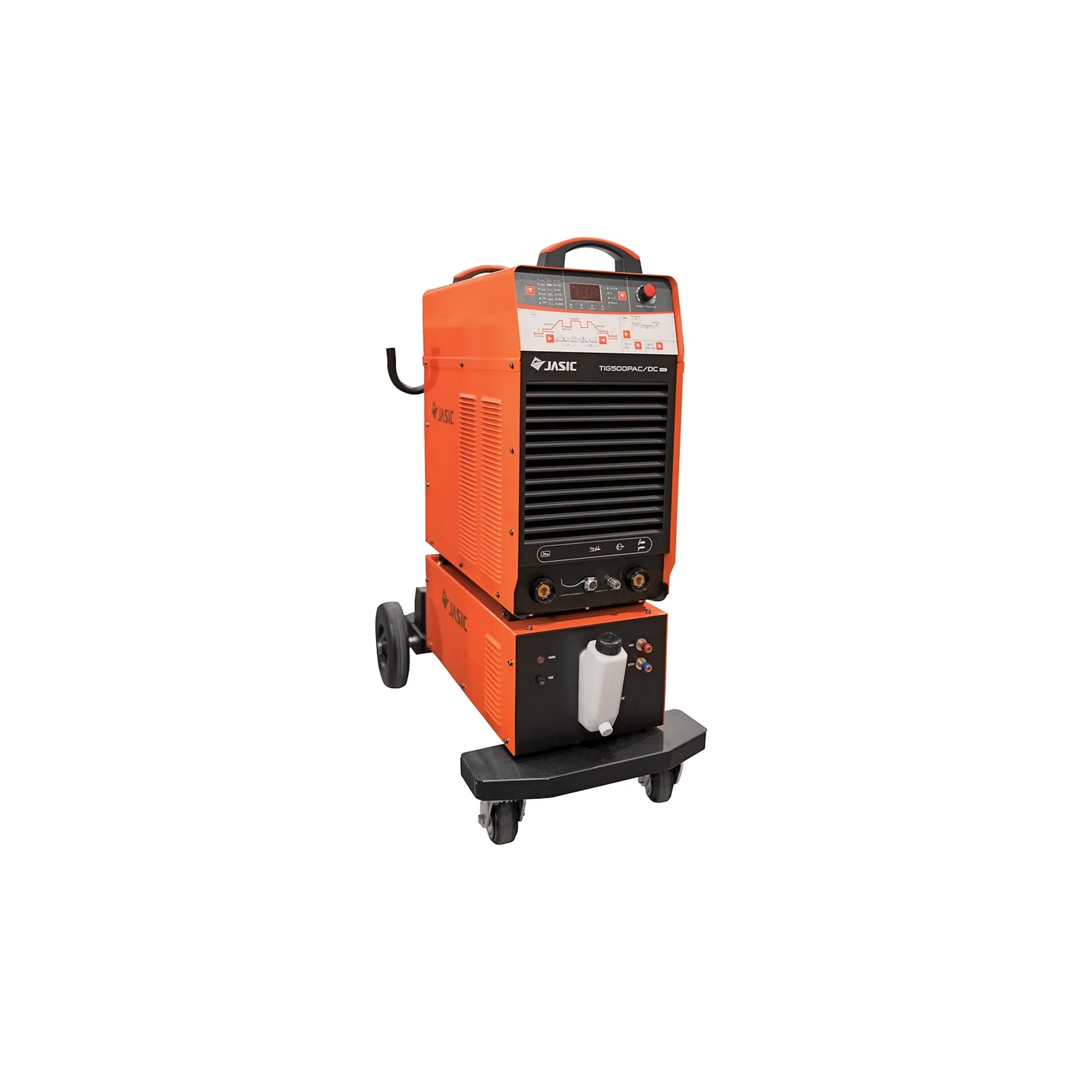

Inverter Package Includes: Inverter power source, Water Cooler, Trolley, TIG torch & adaptor, Gas regulator, Earth return lead, Operating instructions.
Inverter Features
- TIG Pulse AC/DC inverter with digital control
- Program memory storage for saving welding settings
- Easy-to-use, intuitive control panel
- Adjustable pre-flow and post-flow gas timing
- Adjustable up-slope and down-slope controls
- Pulse adjustment settings
- Adjustable pulse frequency and pulse duty cycle
- Arc force control
- Adjustable AC clean width
- Remote control interface
- AC welding function for aluminium and aluminium alloys
- DC TIG welding function for carbon steel, stainless steel, copper, and other non-ferrous metals
- Smooth arc characteristics and stable welding performance
- Water-cooled system
- Fan-On-Demand and Cooler-On-Demand technology (2023 models) for reduced noise and energy consumption
Technical Data
- Input Voltage: AC 400V, 50/60Hz
- Effective Input Current (Ieff): 23A
- Input Power: 21.5kVA
- Welding Current Range:
- TIG: 10–500A
- MMA: 10–400A
- Duty Cycle @ 40°C: 500A @ 60%
- No-Load Voltage: 74V
- Pulse Frequency:
- AC: 70Hz
- DC: 200Hz
- Protection / Insulation Class: IP21S / Class F
- Dimensions (L × W × H): 1080 × 510 × 1180mm
- Weight: 128kg
