KEMPER Welding Fume Exhaust Set 415 V c/w 4 m Flexible Arm

£1,585.00 Ex. VAT

• Welding Fume
• Exhaust Set
• 415V
• c/w 4mtr Flexible Arm
• Operator friendly

SKU: 185-151 Category: Tag: Brand:

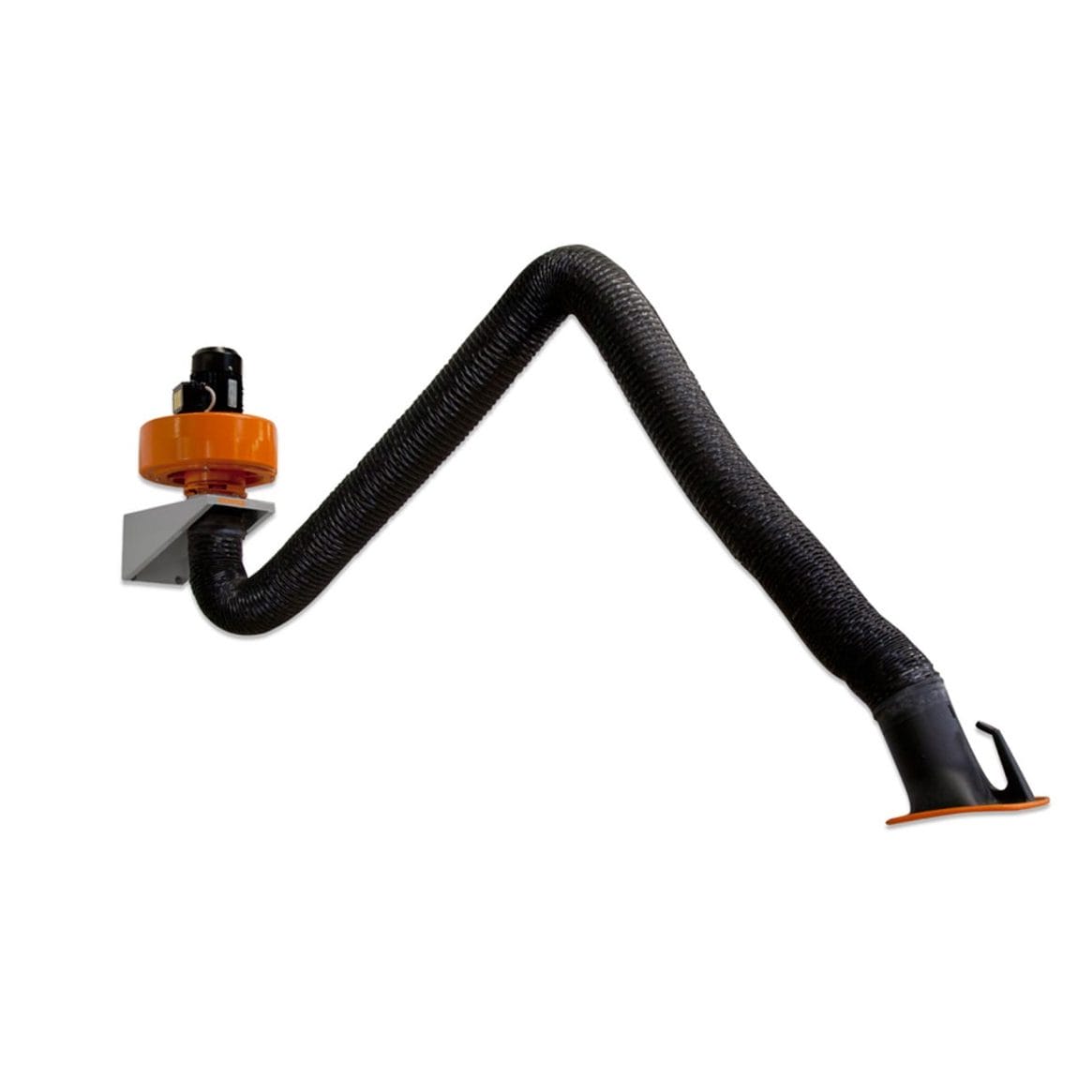

Kemper Welding Fume Exhaust Set 415 V c/w 4 m Flexible Arm

The Kemper welding smoke exhaust set comes complete with the 4m extraction arm, fan, wall bracket and a motor protection switch. This system is a cost-effective and simple design for use is all applications where the air filtration is not essential. These exhaust sets can be installed in most workshop environments for removal of welding fumes, dust, smoke, vehicle exhaust fumes and gases.

The exhaust arm features a 360° rotating evacuation hood with throttle valve which is very beneficial as the operator nearby can swivel the hood in all directions dependant on where the extraction is required most. The hose connecting to the hood consists of an internal parallelogram support linkage with spring support and a polyester fabric reinforced hose. The PVC coating has coiled steel wire-bonded inside.

The main component within this exhaust kit is the fan which causes extraction of the hazardous dust and fumes into the hood. This housing and impeller within the fan consist of non-sparking, cast silumin. There is minimal noise created during the running of the exhaust set as the impeller is statically balanced and dynamic.

Features & Benefits

• Very quiet due to housing of cast silumin
• 40% less adjustment of the exhaust arm needed due to exhaust hood design
• Smooth movement of the hood with one hand makes it operator friendly
• Self-supporting design keeps the arm in position

Scope Of Supply

• Fan
• Exhaust arm with hood
• Wall bracket
• Motor protection switch
• Set of connecting material
• Connecting pipe extendable from 1,25 m to 5 m with outlet

Technical Data

Art. No. 79 004 201

Basic data
• Extraction capacity: 1000 m³/h
• Max. fan performance: 2000 m³/h
• Weight: 48 kg
• Motor power: 0,75 kW
• Power supply: 3 x 400 V / 50 Hz
• Rated current: 1.5 A
• Noise level: 73 dB(A)

Additional information
• Fan type: Radial fan
• Quantity of extraction arms: 1
• Exhaust arm type: flexible exhaust arm
• Diameter extraction arm: 150 mm
• Length of exhaust arm: 4 m

We also offer the Kemper mobile extraction units including the Kemper Smartmaster which is ideal for light-duty welding applications.
