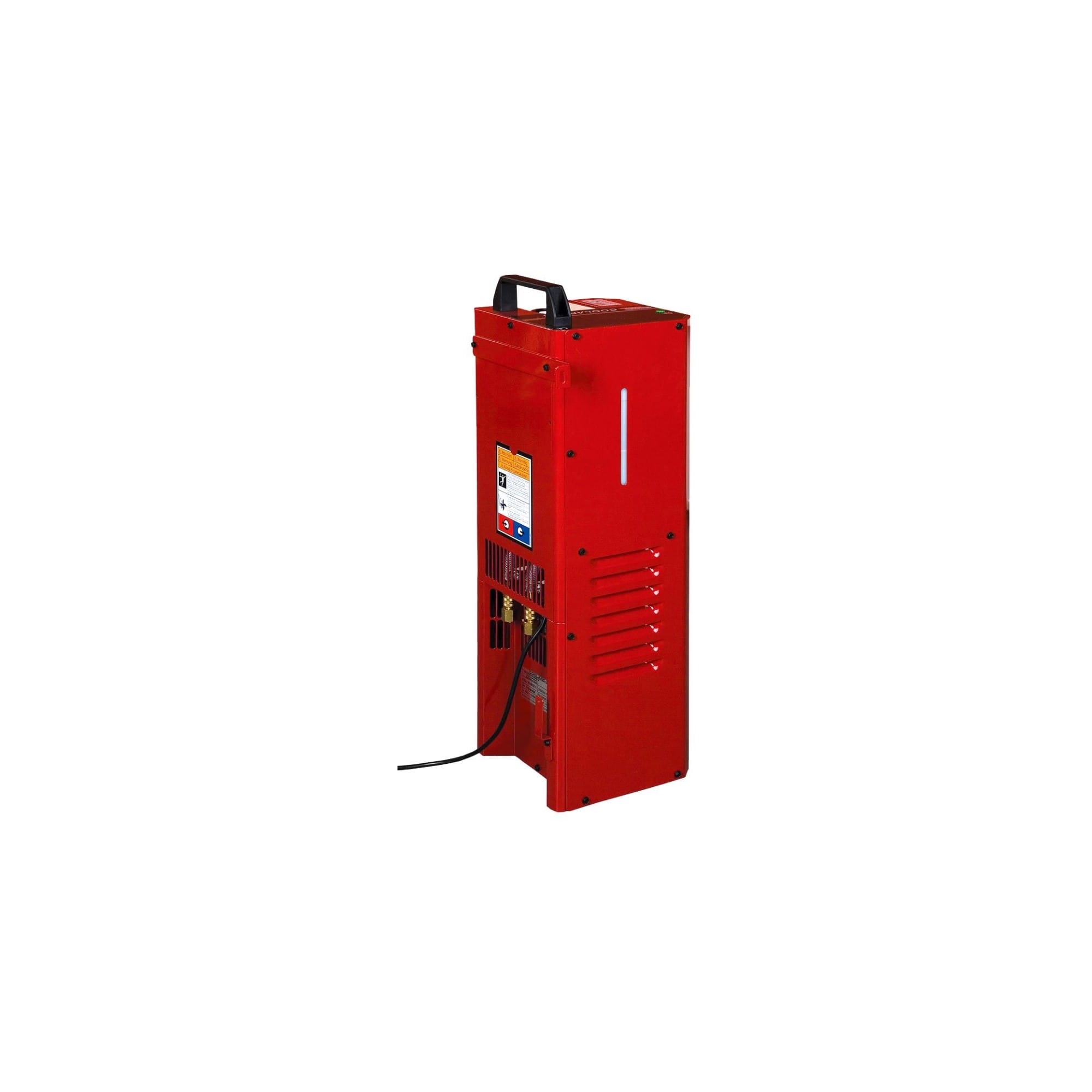

Lincoln Coolarc-25 Watercooler

Lincoln CoolArc 25 Water cooler

The Lincoln Coolarc-25 Water cooler is a stand-alone recirculating cooling system designed for use with water-cooled TIG, MIG, PAC (Plasma Arc Cutting), and PAW (Plasma Arc Welding). Additional applications include resistance welding, water-cooled inductive heating. It is compatible with Powertec and CV power sources. The water cooler allows for the appliance it is paired with to be in use for a prolonged period of time in order to increase efficiency and enhance work quality.

The COOLARC-25 coolers bring new technology in the areas of pump, heat exchanger, and reservoir designs to the water cooler market. These developments allow the COOLARC-25 coolers to be lighter in weight and lower in energy consumption.

Technical specifications:

• Input Voltage: 230 ± 10% single phase
• Cooling power: 1.05 @ 1 l/min
• Rated current: 0.95 A
• Frequency: 50 Hz
• Rated output at 40°C:
• Flow range: 0.5 to 3.3 l/min
• MIG: with torch 4.5m: 1.7 ÷ 1.8 l/min
• TIG: with torch 3.8m: 1.3 ÷ 1.4 l/min
• Open flow: 3.3 l/min
• Reservoir size: 8.5 L
• Max. pressure rate: 0.4 MPA
• Recommended coolant: Acorox
• Dimensions HxWxL: 748 mm x 238 mm x 248 mm
• Weight: 19 kg
• Operating Temperature: –10°C to +40°C
• Storage Temperature: -25°C to +55°C
