Description

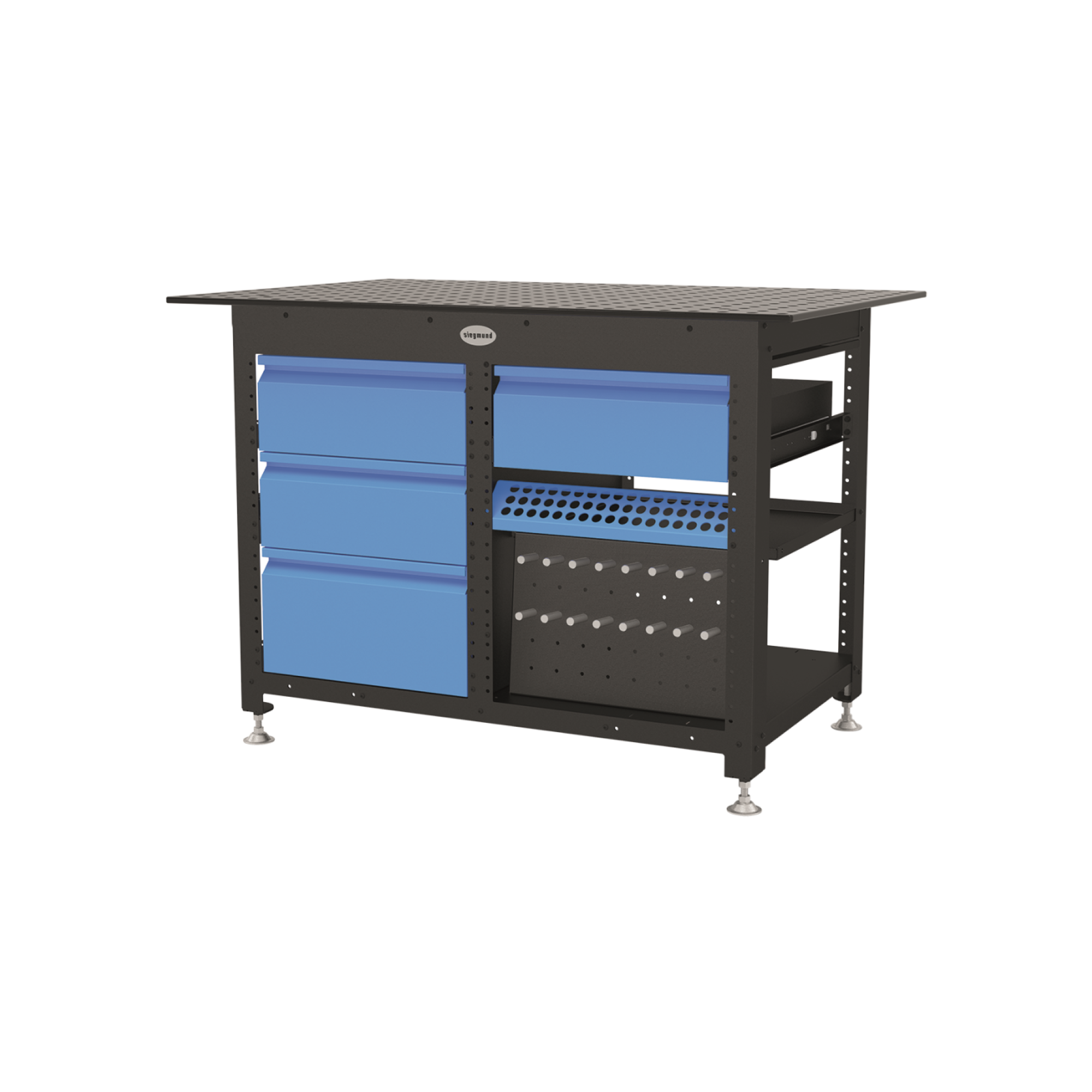

System 16 Workstation 1200x 800mm
The Siegmund System 16 Workstation is the perfect addition to your workspace by adapting and expanding to meet an individuals needs. It is incredibly versatile for use when sawing, drilling or welding for work on both wood and metal.
Features including four drawers, a clamp holder and a bolt and prism holder have been cleverly fitted to allow ease of use, clarity and order by providing plenty of room to work with accessories. The drawers are a heavy duty steel so tools can be stored below the workspace.
A perforated plate is fixed for durability and longevity of the work surface. It is made of through-hardened tool steel which makes the plate scratch resistant and high impact resistant. It also has a high point load and a long service life. Through-hardened steel is much harder and more resilient than standard steel. Plasma Nitration is not standard for the Siegmund System 16 workstation although is available with a small surcharge.
The workstation promotes cleanliness with the addition of two plates beneath the perforated plate that protect the tools from dirt and weld spatter, these plates can be removed for cleaning.
Mobility of the Siegmund workspace thanks to the combined leg and optional castor provide flexibility of the workstation. The base plates have fine adjustment to enable a precise work surface.
Use the Siegmund Configurator here.
Technical Specifications
Length-1200 mm
Width-800 mm
Height-850 mm
Weight-183 kg
Borehole diameter- 16mm
Boreholes on the surface- 50 x 50mm grid
Material thickness of perforated plate- 11.5-13mm
The System 16 Workstation includes:
1x 004002 (Siegmund Workstation)
1x 164004.X07 (Perforated plate)
1x 164030 (Clamp holder)
1x 004020 (Shelf)
1x 164035 (Bolt and prism holder)
1x 004025 (Toolwall incl. Shelf)
3x 004230.WS (Drawer)
1x 004235.WS (Drawer)
View the full range of Siegmund tools and accessories compatible with the System 16 Workstation.
If you think that the System 16 might not be robust enough for the process you have in mind, check the System 22 and System 28 for more heavy-duty workstations.
Siegmund welding tables come with a wide range of accessories including clamps, bolts, squares, stops, vices, prisms and supports. For the full range of Siegmund products we supply including all table sizes and accessories, please view the product range PDF here.
