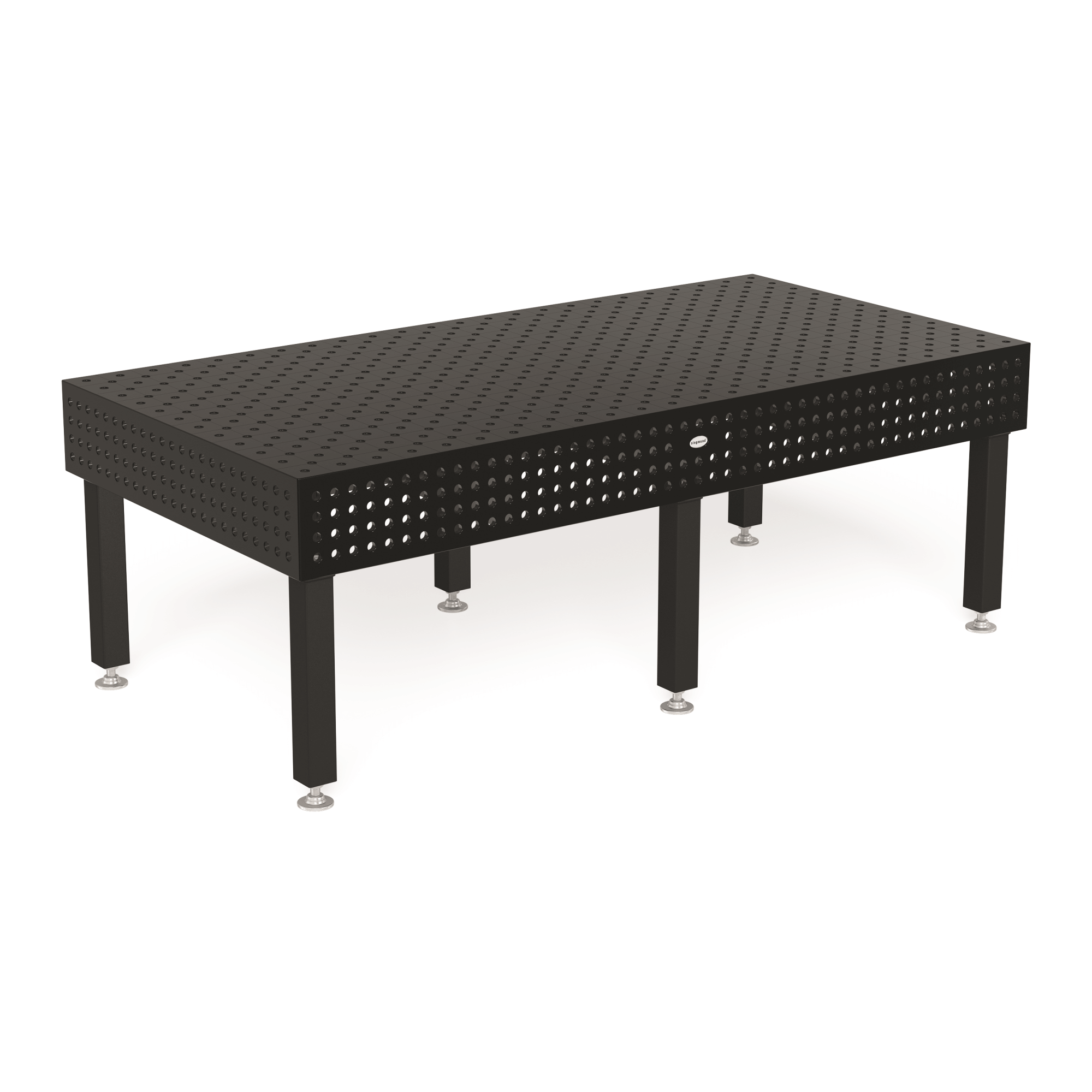

Siegmund System 22 Extreme 8.7 + Welding Table 2400x1200x250

£5,246.00 Ex. VAT

• 22mm Borehole
• Boreholes in Diagonal Grid
• Size 2400 x 1200 mm
• Plasma Nitration
• BAR Coating
• Modular
• 220030.XD7PL

SKU: 501-331 Categories: , Tag: Brand:

The Siegmund System 22 welding tables fit nicely between the Systems 16 & 28. Somewhat of a jack-of-all-trades table, it is perfectly suited to more mid-range jobs with its steel thickness of 19mm and reinforced underside to guarantee maximum stability whilst working.

Ranging from the System 22 Professional 750 as a more cost effective but still professional standard welding table to the new Extreme 8.7 PLUS. Made with super high quality through-hardened tool steel special alloy Siegmund 8.7X.

With each table having boreholes of 22mmØ across the work surface and side panels all the toolboxes, stops, clamps and accessories are compatible with the other welding tables in the System 22 range.

The boreholes on the work surface are in a 100 x 100 grid on the Professional 750 tables and a diagonal grid on the Extreme 8.7 & Extreme 8.7+ with 1mm scaling along the perimeter of the tables

All the welding tables in the System 22 range are available with or without the option of plasma nitration but it is greatly recommended as it greatly increases the lifespan of the table as well as the surface hardness, impact resistance, scratch resistance, welding spatter and corrosion.

All System 22 welding tables are available with a range of alternative legs. If you’d prefer legs on lockable castors for easier movement, legs with adjustable heights or floor mounted for maximum stability and security.

Siegmund Welding Tables are available to order with a wide range of tool sets and accessories including clamps, vices, prisms, supports, squares, stops, and bolts.

View the full range of Siegmund Accessories and Siegmund tool sets compatible with the System 22

If you don’t believe that the System 22 is tantamount to your needs, have a look at the System 16 for fine detail applications. On the opposite end of the spectrum, there is the System 28 which is designed to be the ultimate in heavy-duty industrial level welding and manufacturing.


Siegmund Welding Table

Siegmund System Extreme 8.7 PLUS welding tables are manufactured of through-hardened tool steel out of special alloy (Siegmund X8.7) and additionally plasma-nitrided and coated. With a larger load capacity than the system 16 but more cost effective than the system 28, the system 22 nicely fills the gap between systems. Dimensions of this System 22 welding table are 2400mm x 1200mm (Range available from 1200mm x 1200mm to 4000mm x 2000mm) with a bearing load of 3000kg based on 4 legs with an even load distribution.

This table is available with height-adjustable legs (750 – 1150mm) & castors. Note: Siegmund welding tables are designed to be modular and we can supply these with a wide range of clamps, tools and accessories as well as fixed and adjustable table legs with different weight capacities. If you’re looking for a custom setup, please contact the sales team on 01432 346190 or send an email to

Technical Information

Borehole Ø 22 mm
Boreholes in a Diagonal Grid
Borehole Spacing of table side 50mm
Height of table side 250mm
Material thickness approx. 17 – 19mm


Siegmund welding tables come with a wide range of accessories including clamps, bolts, squares, stops, vices, prisms and supports. For the full range of Siegmund products we supply including all table sizes and accessories, please view the product range PDF here.
