Description

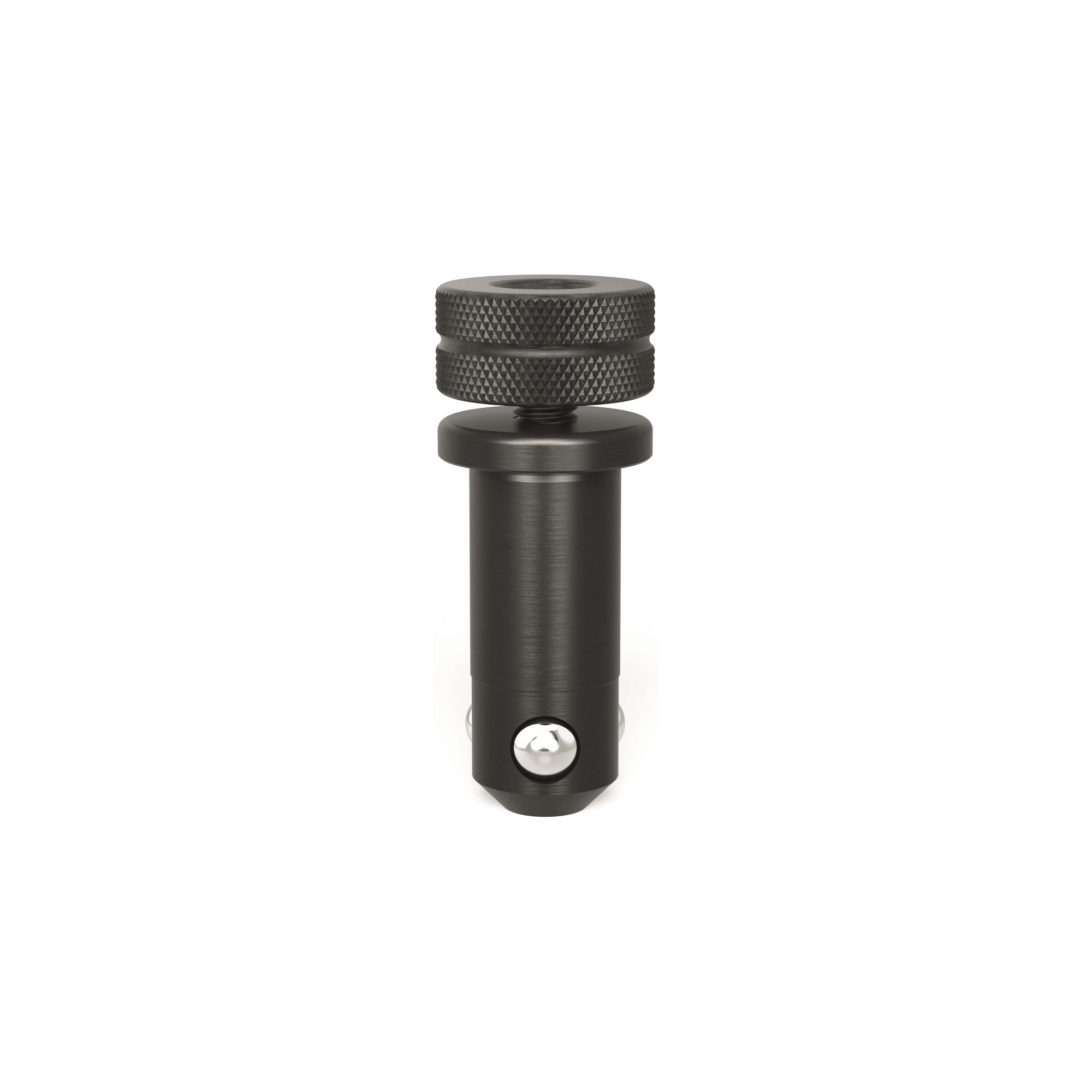

This quick-clamping, heavy-duty Siegmund Bolt (280511) is the best connecting element between two pieces of Siegmund tooling and components.
Made without the O-ring slot which guarantees an even surface of the bolt body.
Also suitable for clamping aluminium profiles it is recommended that the bolts must be hand tightened only via the screw top when bolting aluminium.
This bolt is 95mm long with a diameter of 28mm. The maximum shearing force is 220kN and a tensile force of 25kN. The tightening torque for steel is 25Nm and is 10Nm for aluminium.
These bolts are not for connecting Siegmund welding tables together.
This bolt is available with the Siegmund tool sets for the System 28.
If you can’t find what you’re looking for, please contact us via live chat, phone or email. A member of our team will be very willing to help.
Siegmund welding tables come with a wide range of accessories including clamps, bolts, squares, stops, vices, prisms and supports. For the full range of Siegmund products we supply including all table sizes and accessories, please view the product range PDFÂ here.
