Description

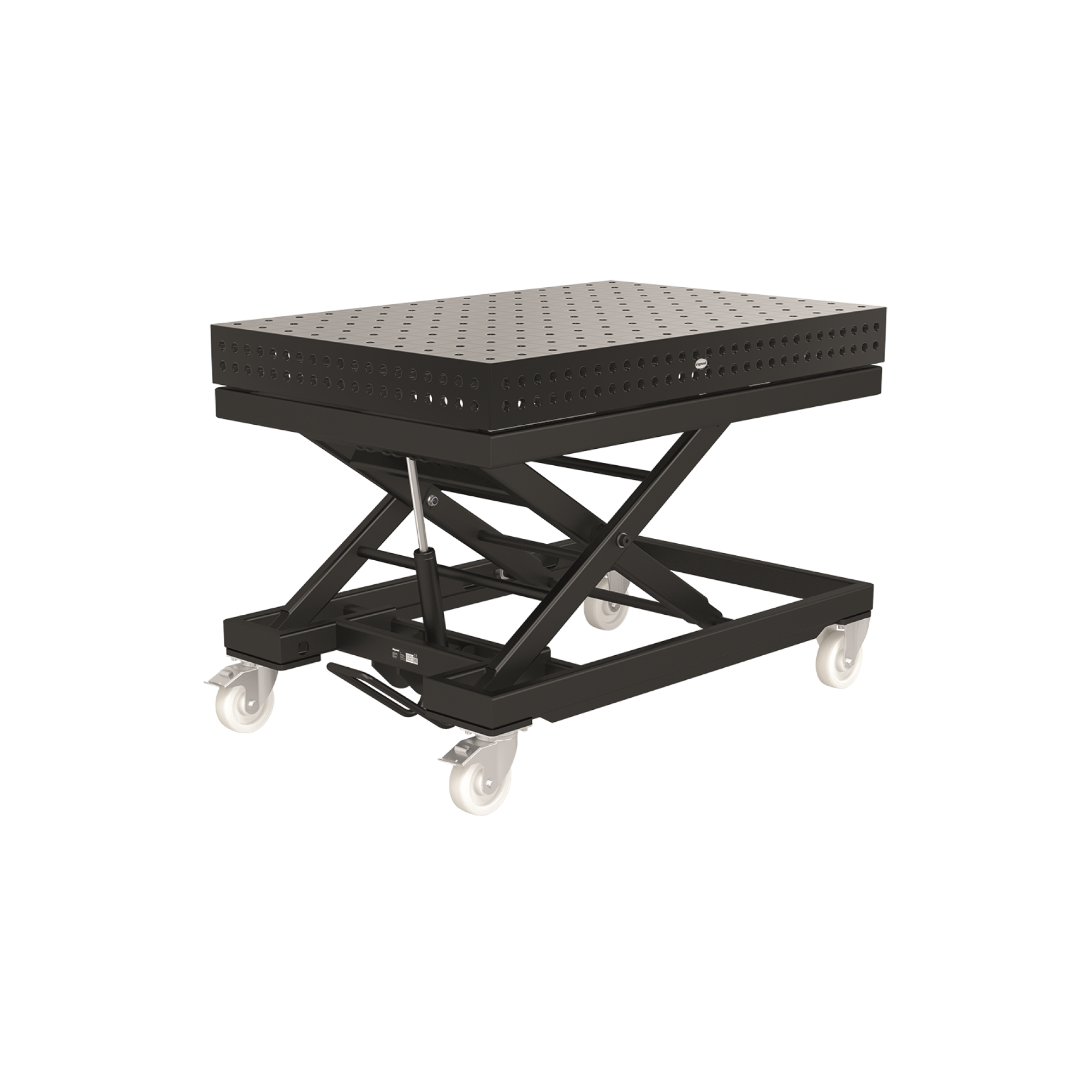

System 22 Mobile Lifting Table
The ergonomic and flexible Siegmund System 22 Mobile Lifting table allows you to quickly reach the ideal working height. It enhances flexibility by allowing for applications including clamping, assembly or increasing work space. Adjusting the height is extremely easy and pain free which makes reaching the demands of precise operations easier than ever. The table is operated using a manual hydraulic pump from heights between 750 and 1050mm.
The powder-coated, steel construction offers optimum stability with continuous height adjustment and can be delivered or collected pre-assembled. It has two fixed castors and two castors with locking brakes so the table can be easily maneuvered through the work place. This feature allows for the table to be space-saving as it can be lowered and moved to the side of the workspace when not in use.
Protective plates are installed below the worktop to protect the hydraulic unit from dirt and welding spatter, this promotes longevity of the hydraulic pump and maintains its ease of use. The table also has fine adjustment which allows for perfect levelness.
Use the Siegmund Welding Table Configurator here.
Premium steel S335J2+N Table top
The professional 750 table top is made of premium steel S355J2+N this is suitable for a range of applications and for all heavy superstructures in the metal processing industry. It is well protected against rust, scratches and weld spatter which increases the life span of the table. The table top is plasma nitrided and BAR-coated; plasma nitration is an unmatched surface hardening and tempering treatment that Siegmund perform. The thermo-chemical procedure of plasma nitration results in more wear-free, corrosion-resistant and durable surfaces. This is a very profitable way of enhancing durability and increasing the life span by over double! The clamping force of the bolt will also substantially increase and the loadability of the table will increase by approximately 20-30%. The basic hardness is approximately 165 – 220 Vickers and the surface hardness measures approximately 450 – 750 Vickers.
Technical Specifications
Length- 1500 mm
Width- 1000 mm
Height- 750 mm – 1050 mm
Weight- 548 kg
Borehole diameter- 22 mm
Boreholes on the surface- 100 x 100 mm grid
Material thickness- approx. 17-19 mm
Height of table side- 150 mm
Maximum load capacity 1200 kg (without plate)
View the full collection of Siegmund Accessories and Siegmund tool sets compatible with the System 22 Mobile Lifting Table.
Siegmund welding tables come with a wide range of accessories including clamps, bolts, squares, stops, vices, prisms and supports. For the full range of Siegmund products we supply including all table sizes and accessories, please view the product range PDF here.
