Siegmund System 22 Welding Table Leg Height-Adjustable 500-800

£144.00 Ex. VAT

• To Suit Siegmund System 22
• Height 500 – 800 mm
• 1000kg Weight Capacity per leg
• Height Adjustable Leg
• 50 mm Vernier Adjustable
• Other Legs Available for System 22 Welding Tables
• 4-220878.XX

SKU: 501-432 Categories: , Brand:

In stock

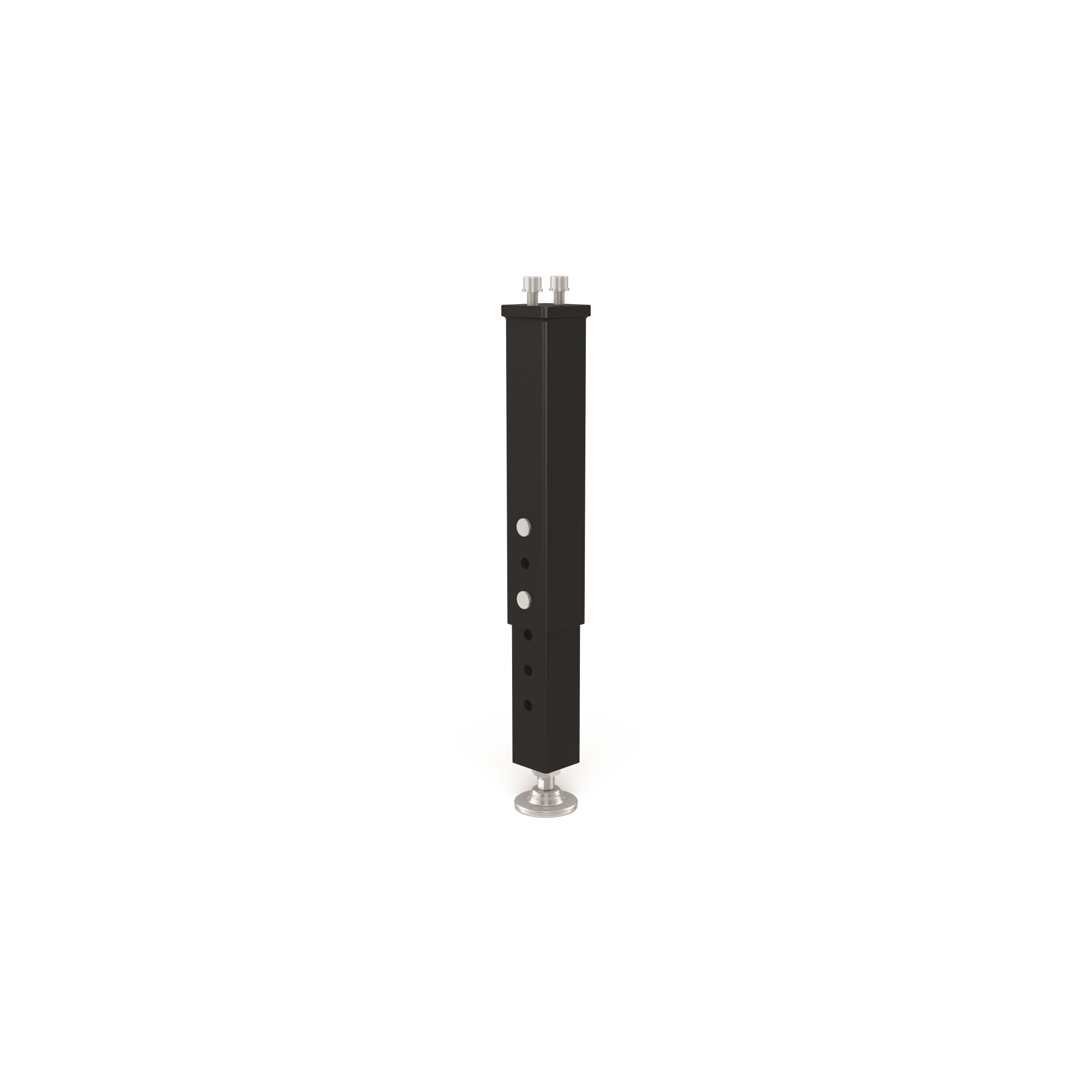

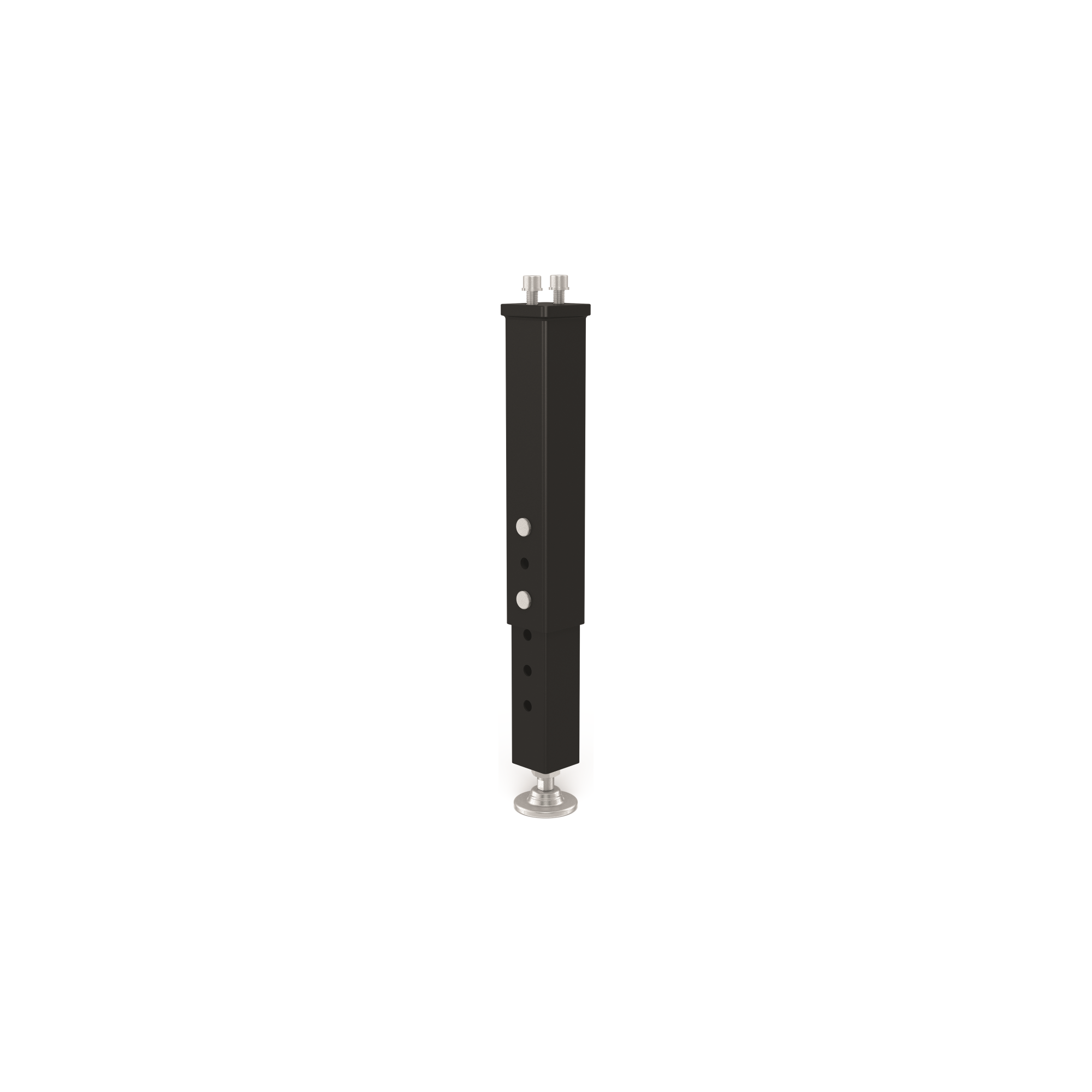

A Siegmund height adjustable leg (4-220878.XX) for the Siegmund System 22.

This leg offers a wide range of available working elevations and can be adjusted between 500mm & 800mm in length with the further ability of 50mm fine vernier adjustments. Combined with the height of the table side, the work surface can be made to rest between 650mm & 1050mm, depending on the table its mounted to.

The maximum load for each leg remains at 1,000kg regardless of the current height. The double locking bolt design guarantees increased stability.

Other leg options are available for the System 22 including legs on castors (with or without height adjustments), floor anchoring legs, or the standard legs which are supplied with the welding table at no additional cost.

View the full range of Siegmund welding tables compatible with this table leg.

If you cant find what you’re looking for, please contact us via live chat, phone or email. A member of our team will be very willing to help.
