Siegmund System 28 Extreme 8.7 Welding Table 2400x1200x200

£5,776.00 Ex. VAT

• 28mm Borehole
• Boreholes in Diagonal Grid
• Size 2400 x 1200 mm
• Plasma Nitration
• BAR Coating
• Modular
• 280030.XD7D

SKU: 501-313 Categories: , Brand:

In stock

Compare
Buy now, pay later with Klarna. Learn more
Description

The Siegmund System 28 welding tables are the largest and most popular tables that Siegmund provide. Manufactured with the purpose of heavy-duty fabrication in mind, the 27mm thick reinforced steel worktop is built to withstand the toughest tasks.

Ranging from the System 28 Basic for a more economical entry point into the system to the top of the range and bestselling Extreme 8.8 Plus. Made with wholly unique, through-hardened tool steel alloy known as Siegmund X8.

With each table having boreholes of 28mmØ across the work surface and side panels all the toolboxes, stops, clamps and accessories are compatible with the other welding tables in the System 28 range.

The boreholes on the work surface are in a 100 x 100 grid on the Basic & Professional 750 tables and a diagonal grid on the Basic 8.7, Extreme 8.7 & Extreme 8.8+ with 1mm scaling along the perimeter of the tables from the Professional 750 upwards.

All the welding tables in the System 28 range are available with or without plasma nitration but it is recommended to opt for nitration as it massively increases the lifespan of the table as well as the surface hardness, resistance to impacts, scratches, welding spatter and corrosion.

All System 28 welding tables are available with a diverse range of alternative legs. If you’d prefer legs on lockable castors for easier movement, legs with adjustable heights or floor mounted for maximum strength and stability.

Siegmund Welding Tables are available to order with a wide range of toolsets and accessories including clamps, vices, prisms, bolts, squares, stops, and supports

View the full range of Siegmund Accessories and Siegmund tool sets compatible with the System 28

If you believe that the Siegmund System 28 is in excess of your needs, have a look at the Siegmund System 16 for fine detail applications. Alternatively, there is the Siegmund System 22, a slight step down from the Siegmund System 28 but still robust enough for most applications.

Siegmund Welding Table

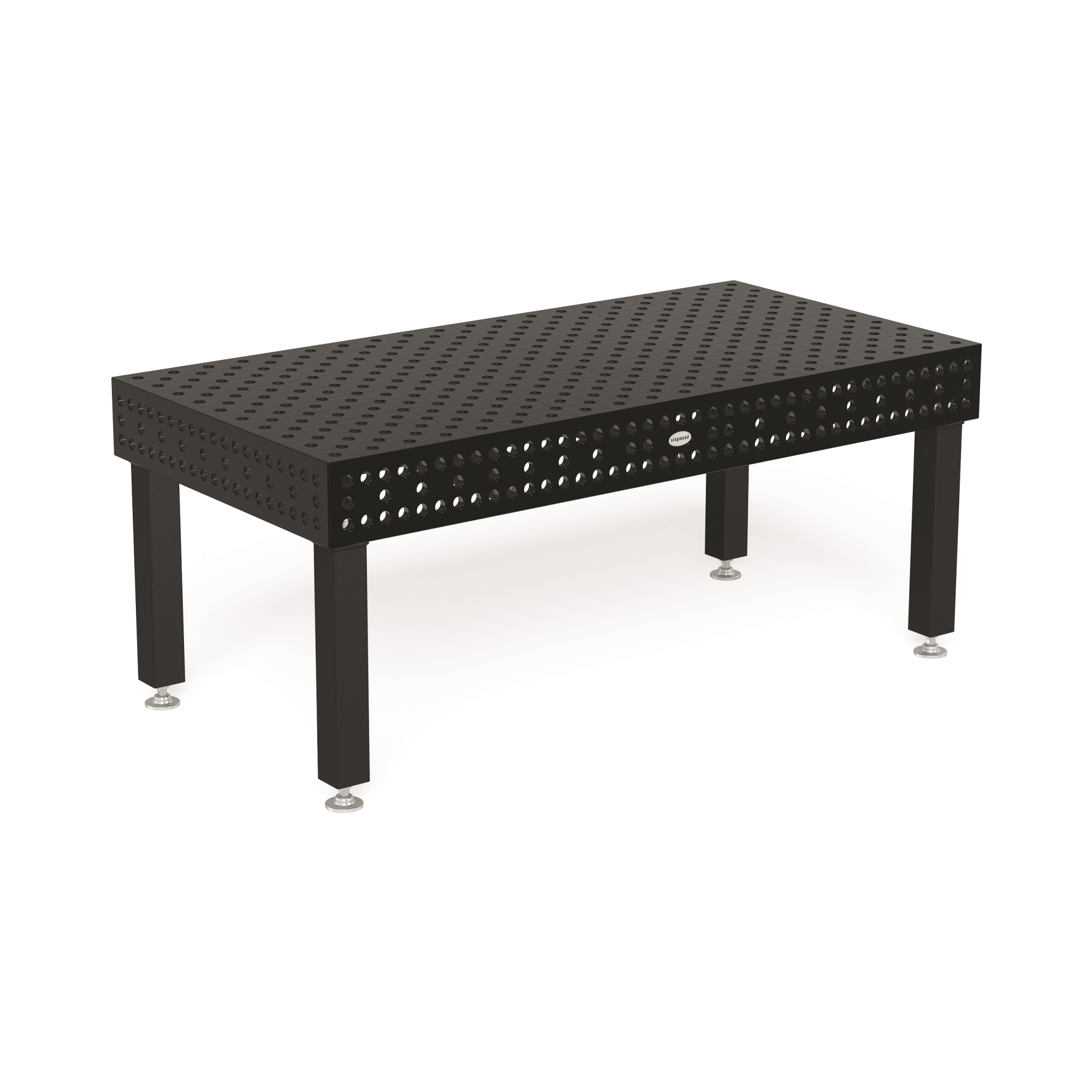

Siegmund System 28 Extreme 8.7 is manufactured through-hardened tool steel out of special alloy (Siegmund X8.7) and additionally plasma-nitration and BAR-coating. Based on the increased load capacity of the welding table it is especially suited for working with heavy components with a load capacity of 6000kg. Dimensions of the System 28 are 2400mm x 1200mm. (Range available from 1000mm x 1000mm to 4800mm x 2400mm.) This table comes with standard legs (850mm). Note: Siegmund welding tables are designed to be modular. If you’re looking for a custom setup, please contact the sales team on 01432 346190 and quote ‘WEB’.

Technical Information

Borehole Ø 28 mm
Borehole spacing 100 mm /
Boreholes in a diagonal grid
Borehole spacing of table side 50 mm /
Boreholes on table sides in a diagonal grid
Grid element spacing 100 mm
Height of table side 200 mm
Material thickness approx. 24,5 – 27 mm
