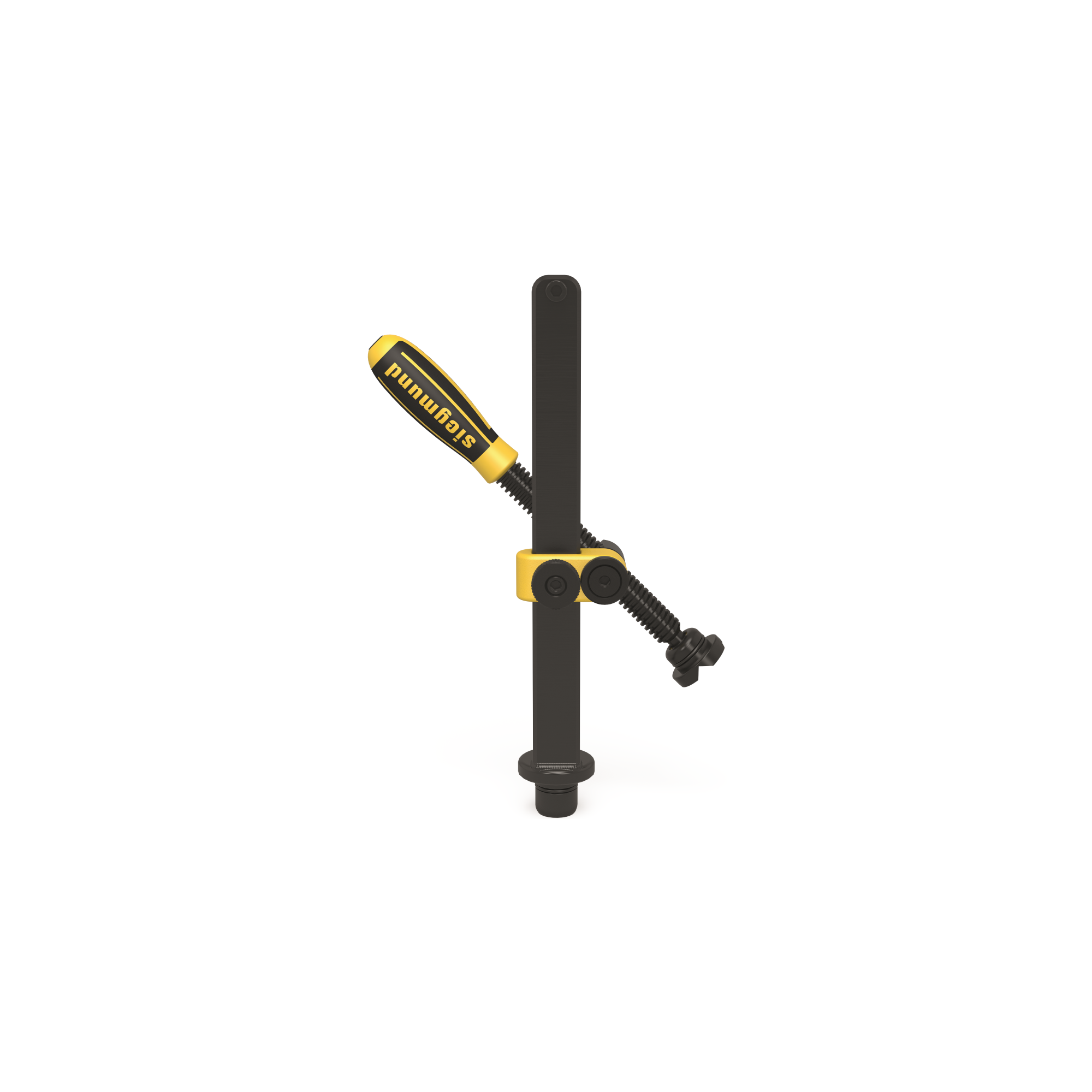

Siegmund System 28 Welding Screw Clamp 45°/90° – Nitrided

One of the main reasons for owning a Siegmund table is the near infinite versatility of its clamping systems, no better is that exemplified than with this screw clamp (280630.N)

Able to be freely rotated between 0° – 360° allows for precise and secure clamping at any angle. clamp is quick to set up with the hand wheel on the side for rapid height adjustments to a limit of 310mm.

Through the countersunk hexagon socket at the tip of the handle the clamping force can be precisely adjusted via a torque wrench, up to a maximum of 5kN.

Durability of the clamp is guaranteed by the nitrided material, with the possibility of ordering spare parts as required.

This clamp is included with the Siegmund tool sets for the System 28.
