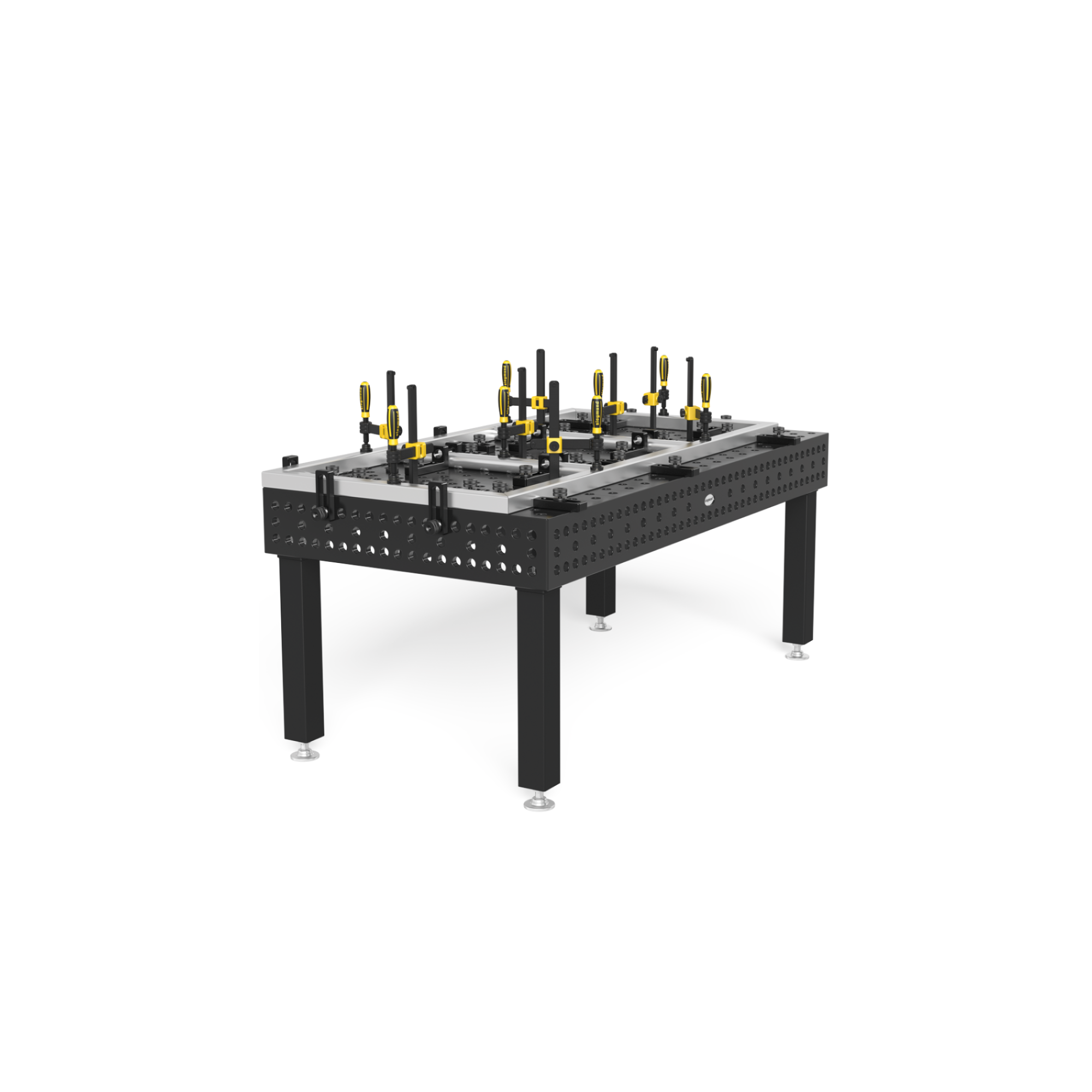

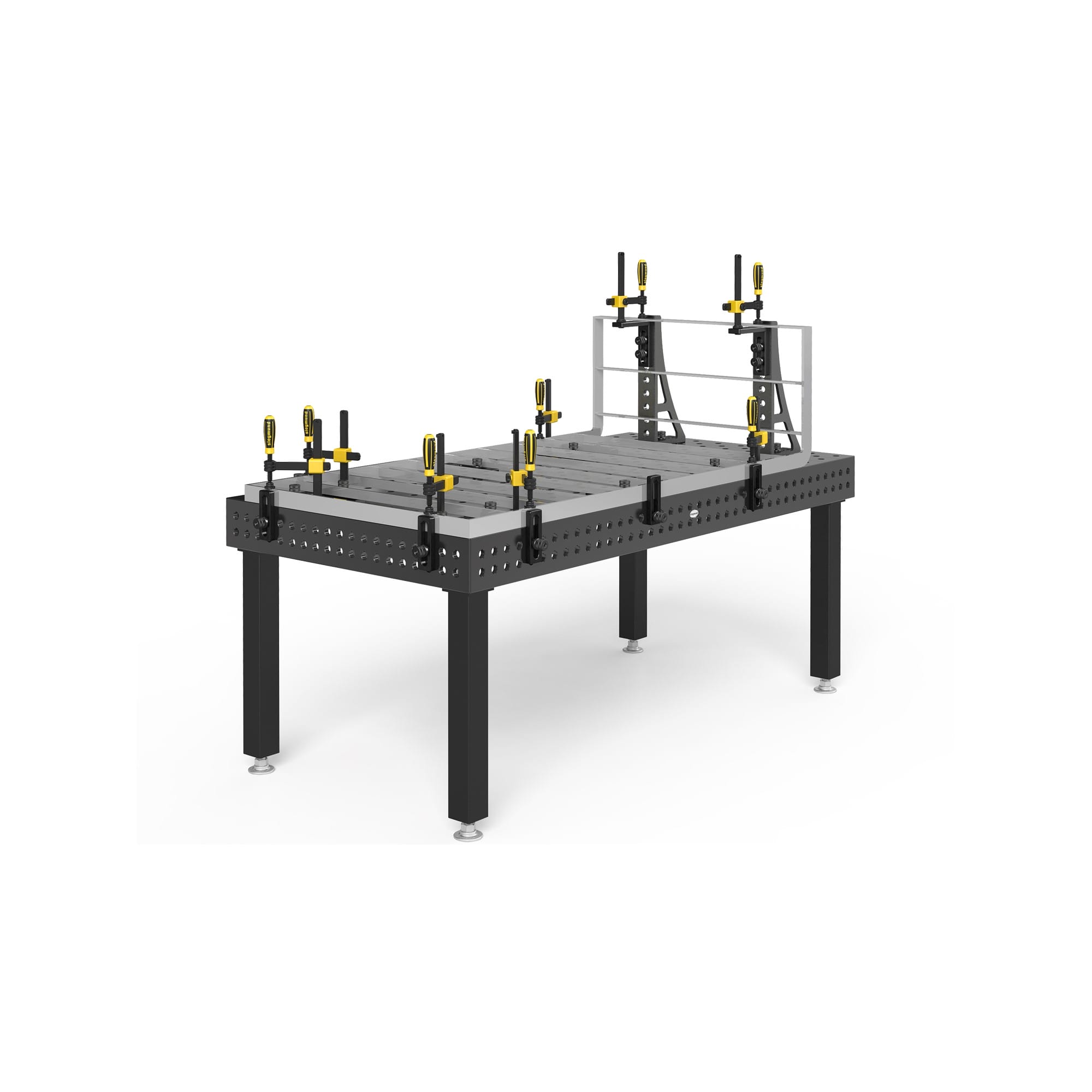

Siegmund System 28 Welding Table Professional 750

£3,656.00 Ex. VAT

• 28mm Borehole
• 100×100 Grid
• Plasma Nitration
• BAR Coating
• Modular

SKU: 501-301 Categories: , Brand:

In stock

Compare
Buy now, pay later with Klarna. Learn more
Description

Siegmund Welding Table

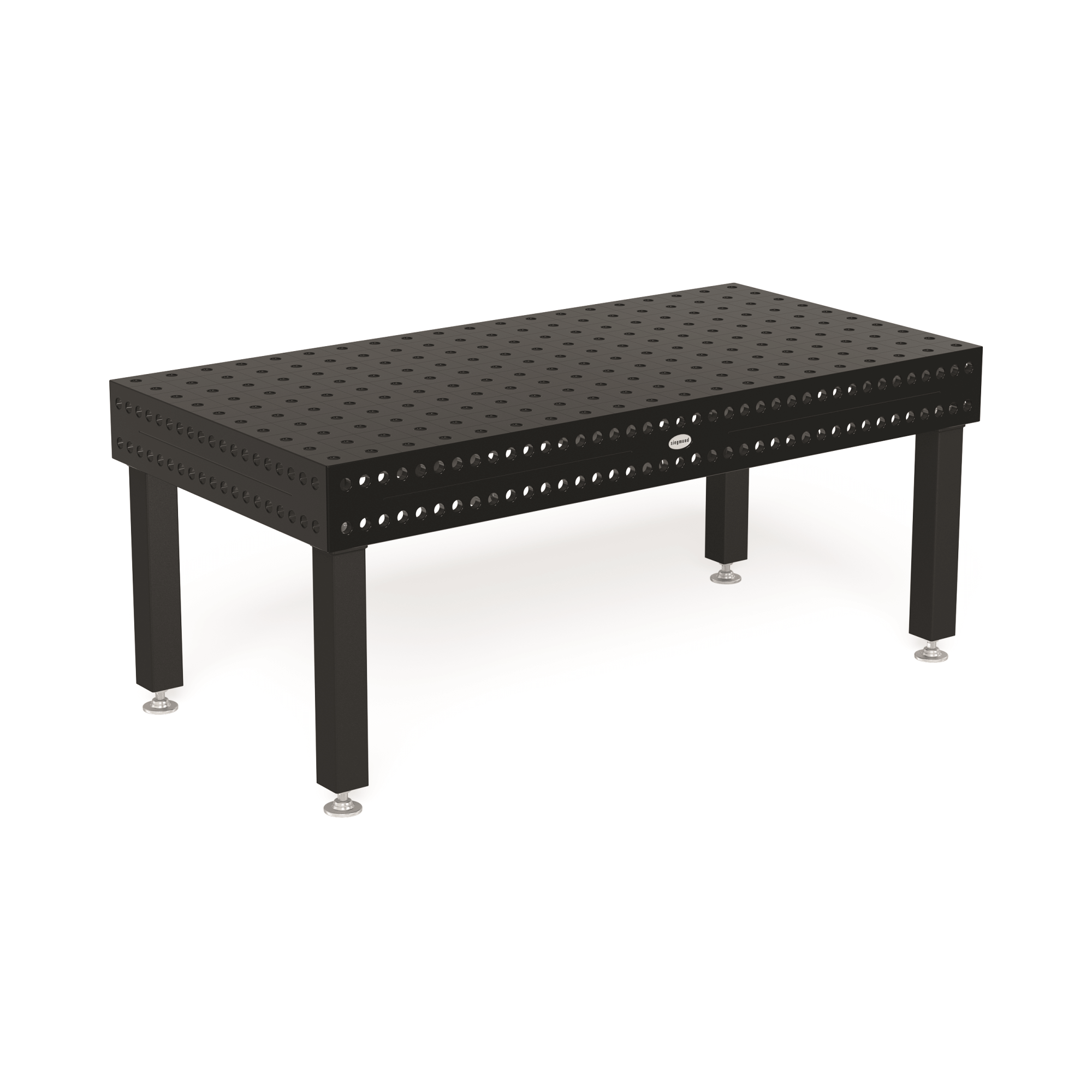

Siegmund Professional 750 welding tables are manufactured of S355J2+N steel and additionally plasma-nitrided and coated. Based on the increased load capacity of the welding table it is especially suited for working with heavy components. Dimensions of this System 28 welding table is 2000mm x 1000mm (Range available from 1000mm x 1000mm to 4000mm x 2000mm) with a bearing load of 6000kg based on even load distribution.

This table comes with height-adjustable legs (550-750mm) with castors. Note: Siegmund welding tables are designed to be modular and we can supply these with a wide range of fixed and adjustable table legs with different weight capacities. If you’re looking for a custom setup, please contact the sales team on 01432 346190.

Technical Information

Borehole Ø 28 mm
Borehole spacing 100 mm /
Boreholes in a diagonal grid
Borehole spacing of table side 50 mm /
Boreholes on table sides in a diagonal grid
Grid element spacing 100 mm
Height of table side 200 mm
Material thickness approx. 24,5 – 27 mm

Accessories

Siegmund welding tables come with a wide range of accessories including clamps, bolts, squares, stops, vices, prisms and supports. For the full range of Siegmund products we supply including all table sizes and accessories, please view the product range PDF here.
