Description

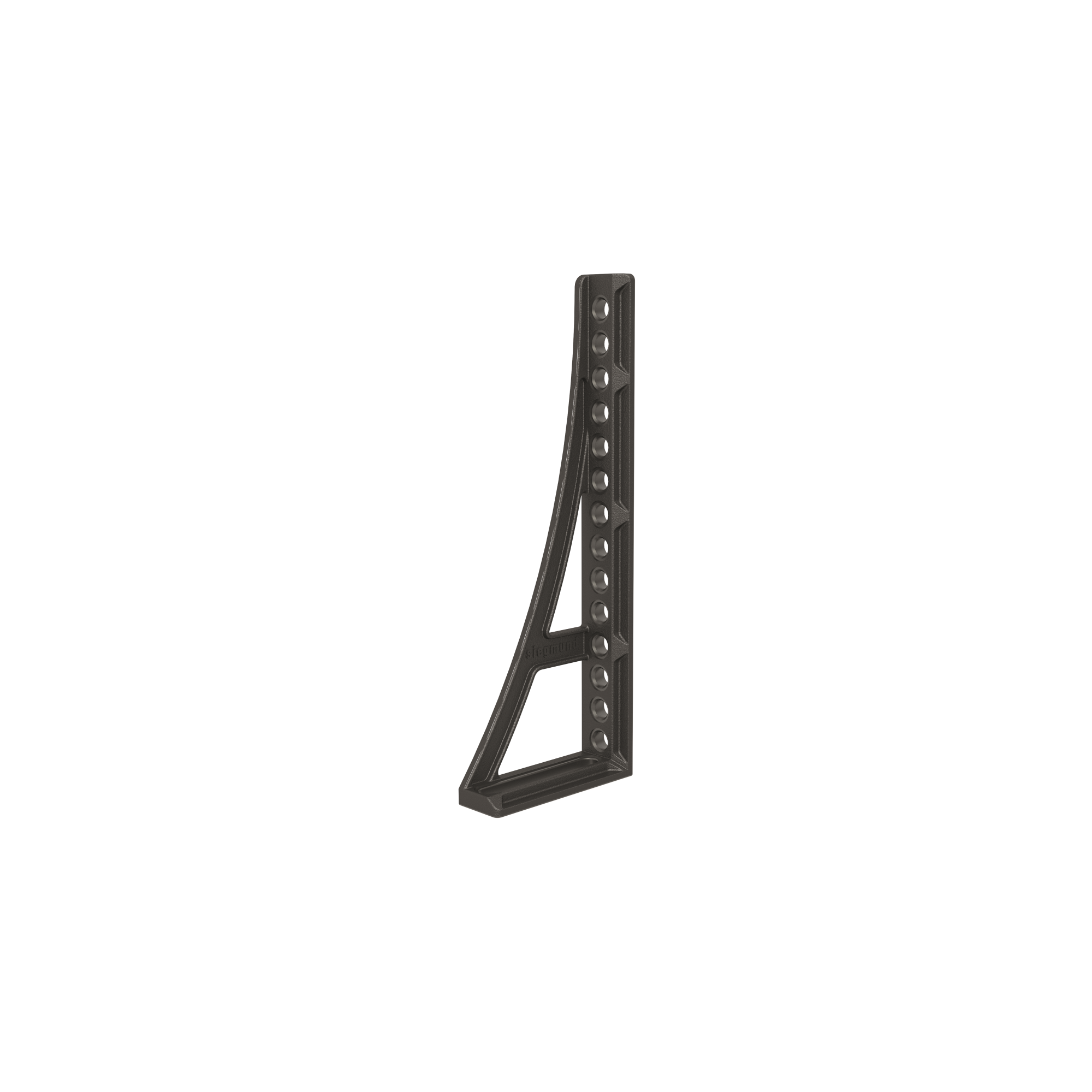

Available to purchase individually, although recommended to be bought as a pair. The left (280166.N) and right (280167.N) Stop and Clamping squares allow for multiple working heights with fine scaling along the sides of the elongated borehole for increased accuracy.
The dimensions of the squares are 276mm long, 85mm wide and 750mm high. Due to its very large size, it can be used not only as a stop and square but as a large extension to the welding table. Perfect for precise, three-dimensional welding.
Made from GGG40 ductile cast iron, plasma nitrided and BAR coated. Heavy-duty applications are easily combated with these highly durable pieces of tooling.
These clamping squares are available together as part of the Siegmund tool sets for the System 28
If you can’t find what you’re looking for, please contact us via live chat, phone or email. A member of our team will be very willing to help.
Siegmund welding tables come with a wide range of accessories including clamps, bolts, squares, stops, vices, prisms and supports. For the full range of Siegmund products we supply including all table sizes and accessories, please view the product range PDF here.
