Esab Sentinel A50 Welding Helmet For Air

£482.11 Ex. VAT

• Sentinal
• Sensors: 4
• Viewing Area: 100 x 60 mm
• Lens Shade: DIN 5-8/9-13
• A50 Welding Helmet For Air
• Low-profile design
• Suitable for most welding processes

SKU: 471-012 Categories: , Tag: Brand:

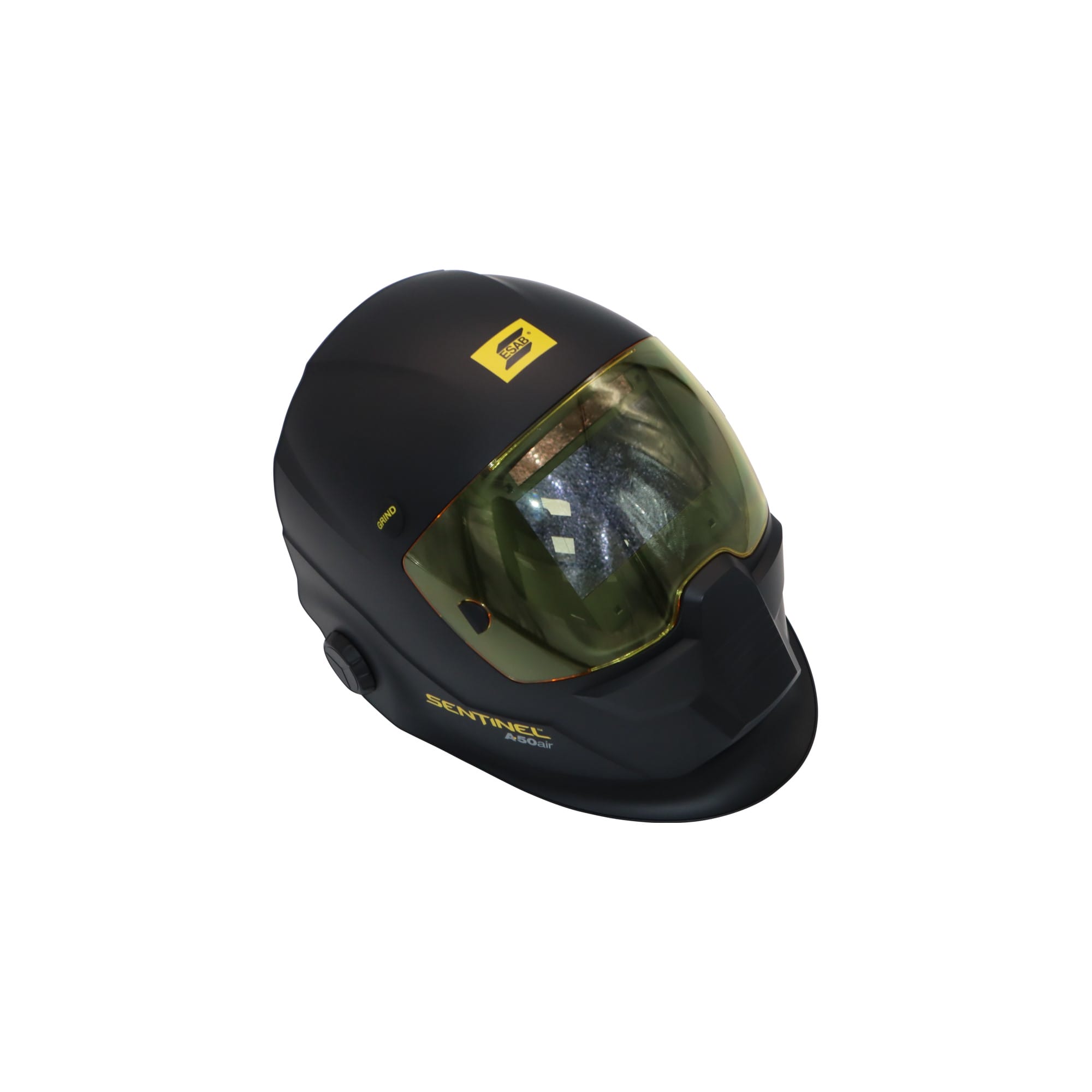

Esab Sentinel A50 Welding Helmet For Air

The Esab Sentinel A50 Welding Helmet is designed for use during all welding processes to protect the welder from breathing in the harmful fumes created. This helmet is premium quality and is used with the Esab PAPR filter pack waist unit. One key feature of this helmet is the external grinding mode button which allows the operator to easily switch from welding to grinding mode without having to remove the welding helmet.

Since the launch of the HSE bulletin in February 2019 regarding the control of hazardous fumes created during the welding of mild steel, these air fed helmets have been very popular for most fabrication and engineering workshops. As stated in the bulletin, ‘Where engineering controls are not adequate to control all fume exposure, adequate and suitable respiratory protective equipment (RPE) is also required to control risk from the residual fume.’

The helmet is designed with a spherical shape cover lens which is very beneficial in overhead welding as it reduces the small recesses and gaps where spatter normally collects and penetrates. The anti-scratch coating also reduces the reflection and protects the welder from high exposure to sparks and spatter.

Features & Benefits

• Shell Design: High Impact Resistance Nylon
• Halo Headgear: The 5 point headgear is ergonomic, adjustable and provides great comfort to the welder. The low profile design assists the welder with maximum clearance whilst the helmet is in the up position.
• ADF Shade: 1/1/1/2 – 5-13
• ADF Size: 100mm x 60mm
• Grind Button: Externally activated Shade 4 grind mode
• Screen Control Panel: Colour touch
• Front-loaded: Front cover lens can be replaced without removing the helmet
• Memory Settings: 8 separate ones

Welding Process

• Plasma Cutting
• Oxy-Fuel Cutting
• SMAW/MMA (Stick)
• Grinding


• Cartridge Dimensions: 133 x 114 x 9 mm
• Viewing Area: 100 x 60 mm
• Lens Shade: DIN 5-8/9-13
• Power Supply: Solar cell plus battery replaceable. (2*CR2450 lithium). Alerts when low battery.
• Sensors: 4
• Switch Time: 1/25,000 s. from Light to Dark
• Classification: 1/1/1/2
• Standards: DIN plus, CE, EN175, EN 379, EN166, ANSI Z87.1, CSA Z94.3, AS/NZS 1338.1, EN12941
• Class: TH2 P R SL
• Weight: 830 g

The Esab PAPR unit is designed for use with the Sentinel A50 air fed welding helmet.
