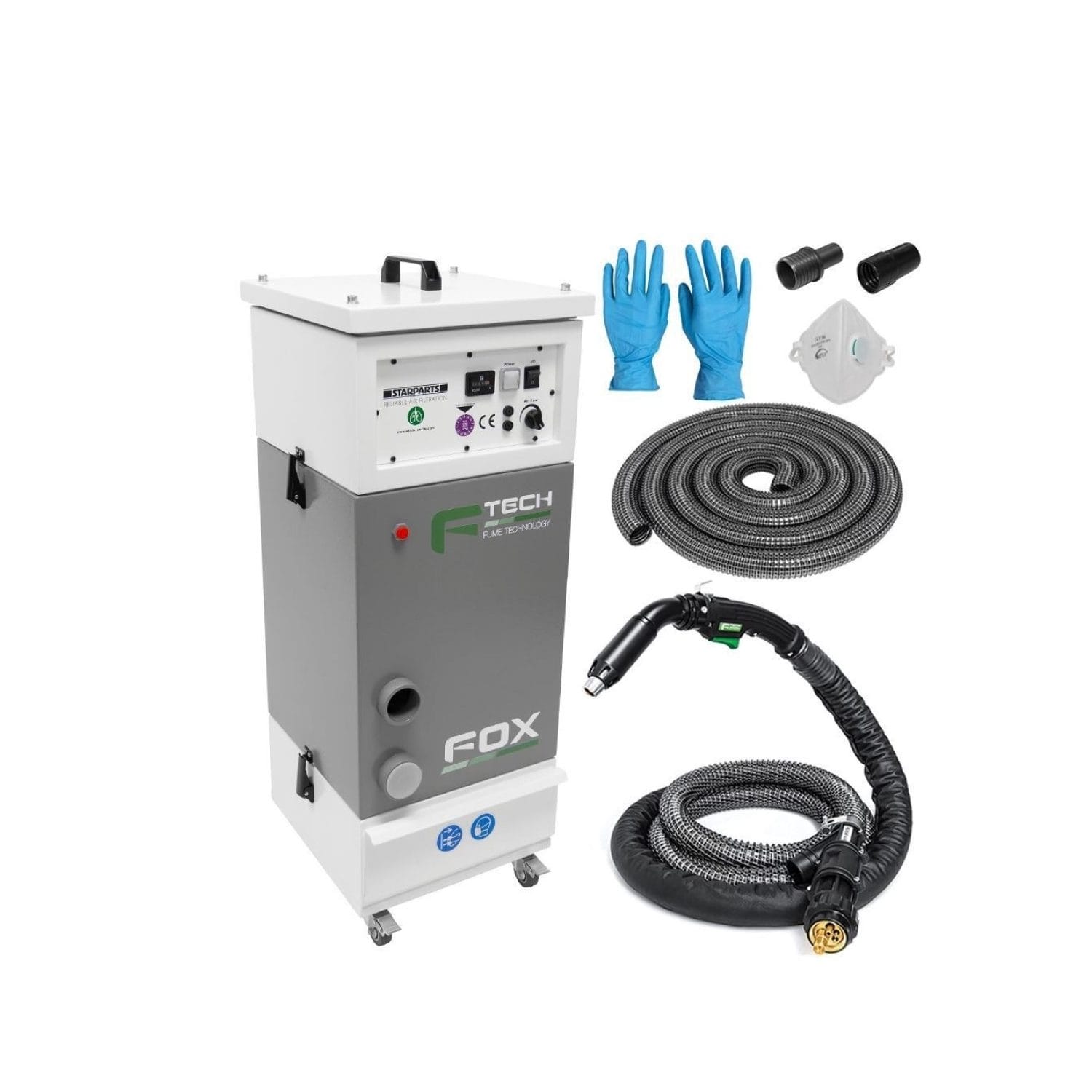

F-Tech Fox Fume Extraction Package & FT300 A/C Torch 4 m

£2,249.72 Ex. VAT

• Weight: 35 kg
• Noise level: <78 dB (A)
• Max. Vacuum: 20,000 Pa
• Max. Air flow: 340 m³/ h
• Connection diameter: 45 mm
• Voltage: 115 V, 50/60 Hz | 230 V, 50 Hz
• Engine performance: 2 x 0.8 kW
• Filter efficiency: 99.99%
• Dimensions: length 300 mm; width 300 mm; height 845 mm
• Warranty: 5 years (register online within 28 days)
• Supplied with F-Tech FT300 Aircooled Fume Torch 4mtr

SKU: 185-209 Categories: , Tag: Brand:
Compare
Buy now, pay later with Klarna. Learn more
Description

The F-Tech Fox fume extraction unit has been designed for the removal of dust and welding fume from the workshop environment. This unit in combination with the F-Tech fume extraction torch provides the best possible welding fume extraction directly at the source. This compact modular design is extremely portable and has four sturdy swivel casters for easy manoeuvrability in the workplace.

Since the HSE announcement in early 2019 for the control of mild steel welding fumes, these units have been very popular for most MIG/MAG welding applications including structural steelwork, general fabrication and sheet metal work.

Features & benefits

• Tandem motors: These offer pure efficiency in providing a vacuum of over 20,000 Pa to extract and filter harmful welding or grinding dust.
• Voltage: Available in 110v or 230v models.
• Capacity: This unit will run 2 welding torches simultaneously.
• Hour meter: This is fitted to the unit to check the running time on the equipment.
• Fan speed control
• Dust tray: The dust is collected in the dust tray at the bottom of the unit. A mask and gloves are also provided for handling the removal of waste.
• Auto Stop/Start: This unit is available as a separate addition. This is designed to control the suction/extraction when in use/not in use.

Filters

• ePTFE: These robust European made filters (H13 Certified) German Institute for occupational therapy.
• Long life robust filters: Within the filter housing the cleaning is carried out by automatic nozzles controlled by the differential pressure measurement
• Automatic cleaning: This is an automated process for the filter cartridge and the mechanical filter layer.

Technical Data

Filter efficiency: ≥ 99.9%
Motor power: 2 x 0.8 kW
Rated input voltage: 110V and 230V models 50-60Hz
Flow rate pressure: 340m³/h
Noise levels: <78 dB(A)
Dimensions: 300 x 300 x 845 mm
Weight: 35 Kg

F-Tech Fume Mig Torches

These units can be fitted with either of the air-cooled or water-cooled F-Tech mig torches. The air-cooled version is available in either 300Amp or 400Amp and the water-cooled is available as a 500Amp torch. All options can then be purchased as either 3m, 4m or 5m lengths.
The F-Tech torch range is lightweight and yet highly durable which gives the operator the comfort needed when mig welding.

Performance Data

FT300 Air-cooled Torch
• Maximum Current CO2: 300
• Duty Cycle CO2: 60%
• Max. Current (Mixed Gases): 200
• Duty Cycle Argon: 60%
• Extraction Rate: 80m³/h
• Wire Ø: 0.8mm – 1.2mm

FT400 Air-cooled Torch
• Maximum Current CO2: 400
• Duty Cycle CO2: 60%
• Max. Current (Mixed Gases): 300
• Duty Cycle Argon: 60%
• Extraction Rate: 70m³/h
• Wire Ø: 0.8mm – 1.6mm

FT500 Water-cooled Torch
• Maximum Current CO2: 500
• Duty Cycle CO2: 80%
• Max. Current (Mixed Gases): 400
• Duty Cycle Argon: 80%
• Extraction Rate: 70m³/h
• Wire Ø: 0.8mm – 2.4mm

Within the F-Tech range of fume extraction, we also offer the F-Tech Armur mobile extractors which are available with different exhaust arm set-ups.
