Siegmund System 22 Workstation 1200 x 800 incl. Perforated Plate

£1,337.00 Ex. VAT

• 22mm Borehole
• Boreholes in 100×100 Grid
• Size 1200 x 800mm
• S355J2+N Steel Perforated plate
• Plasma Nitration
• BAR Coating
• Other Variants Available
• 224001

SKU: 501-492 Categories: , Tag: Brand:
Compare
Description

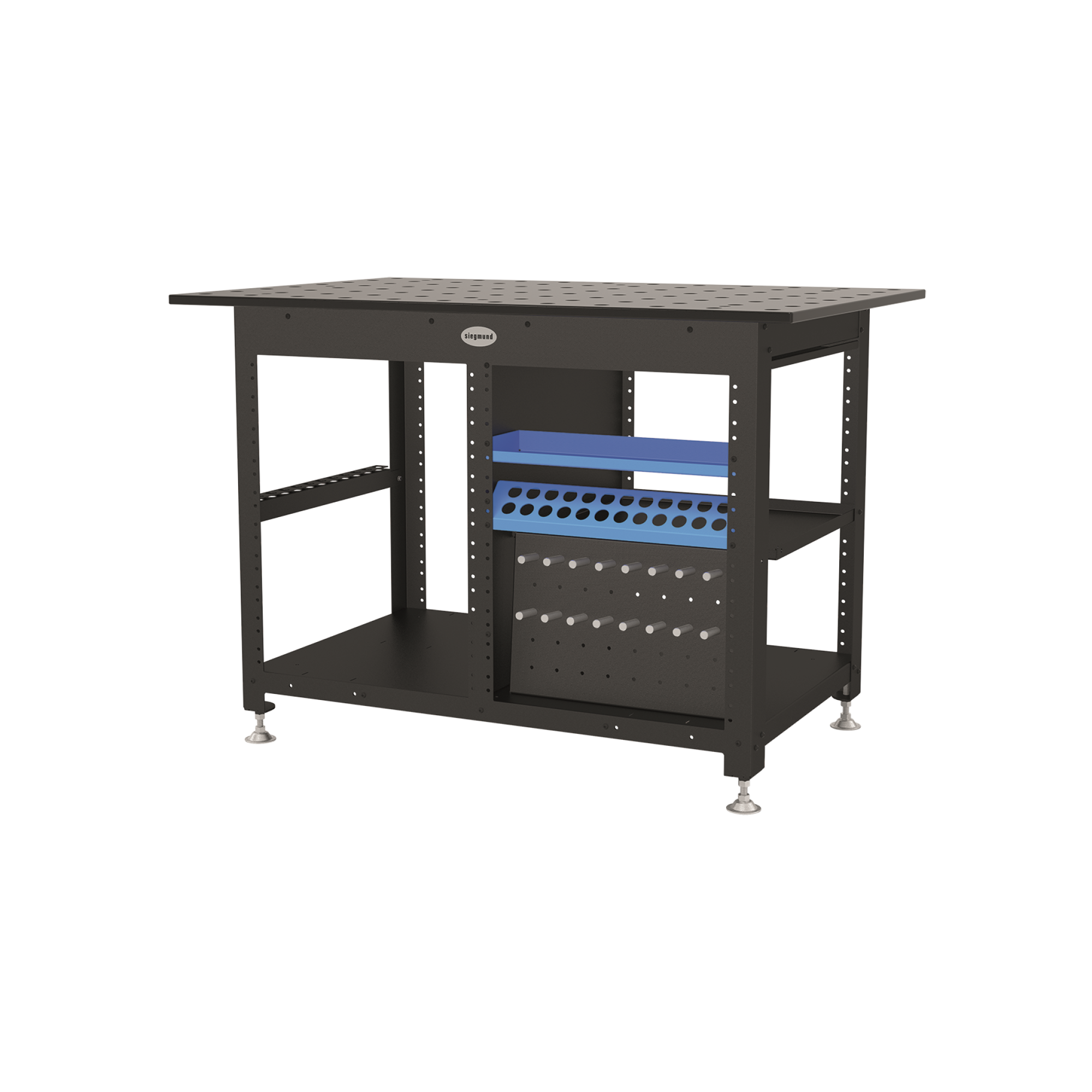

System 22 Workstation 1200 x 800

The Siegmund System 22 Workstation is the perfect addition to your workspace by adapting and expanding to your needs. It is incredibly versatile for use when sawing, drilling or welding for work on both wood and metal. The 22mm borehole system enhances precision when clamping work materials.

Premium steel S355J2+N Perforated plate

A perforated plate is fixed for durability and longevity of the work surface. It is made of premium steel S355J2+N which is suitable for all heavy superstructures in the metal processing industry. The plate is plasma nitrided and BAR-coated; plasma nitration is an unmatched surface hardening and tempering treatment that Siegmund perform. The thermo-chemical procedure of plasma nitration results in more wear-free, corrosion-resistant and durable surfaces. This is a very profitable way of enhancing durability and increasing the life span by over double! The clamping force of the bolt will also substantially increase and the loadability of the table will increase by approximately 20-30%.

The workstation promotes cleanliness with the addition of two plates beneath the perforated plate that protect the tools from dirt and weld spatter, these plates can be removed for cleaning.
Mobility of the Siegmund workspace, thanks to the combined leg and optional castor, provide flexibility of the workstation. The base plates have fine adjustment to enable a precise work surface.
Features including a toolwall, clamp holder and a bolt and prism holder have been cleverly fitted to allow ease of use, clarity and order by providing plenty of room to work with accessories.

Drawers are an optional addition, they are a heavy duty steel so tools can be stored below the workspace to increase ease of access to tools when operating at the workstation. Various drawer sizes are available to customize and build a workstation specific to your requirements.

Technical Specifications

Length- 1200 mm
Width- 800 mm
Height- 850 mm
Weight- 194 kg
Borehole diameter- 22mm
Boreholes on the surface- 100 x 100mm grid
Material thickness of perforated plate- 17-19mm
600mm space for drawers on left and right side

The System 22 Workstation includes:

1x 004002 (Siegmund Workstation)
1x 224004.P (Perforated plate)
1x 224030 (Clamp holder)
1x 004020 (Shelf)
1x 224035 (Bolt and prism holder)
1x 004025 (Toolwall incl. Shelf)

View the full list of Siegmund tools and accessories compatible with the Siegmund System 22 Workstation.

If you don’t believe that the System 22 is tantamount to your needs, have a look at the System 16 for fine detail applications. On the opposite end of the spectrum, there is the System 28 which is designed to be the ultimate in heavy-duty industrial level welding and manufacturing.
