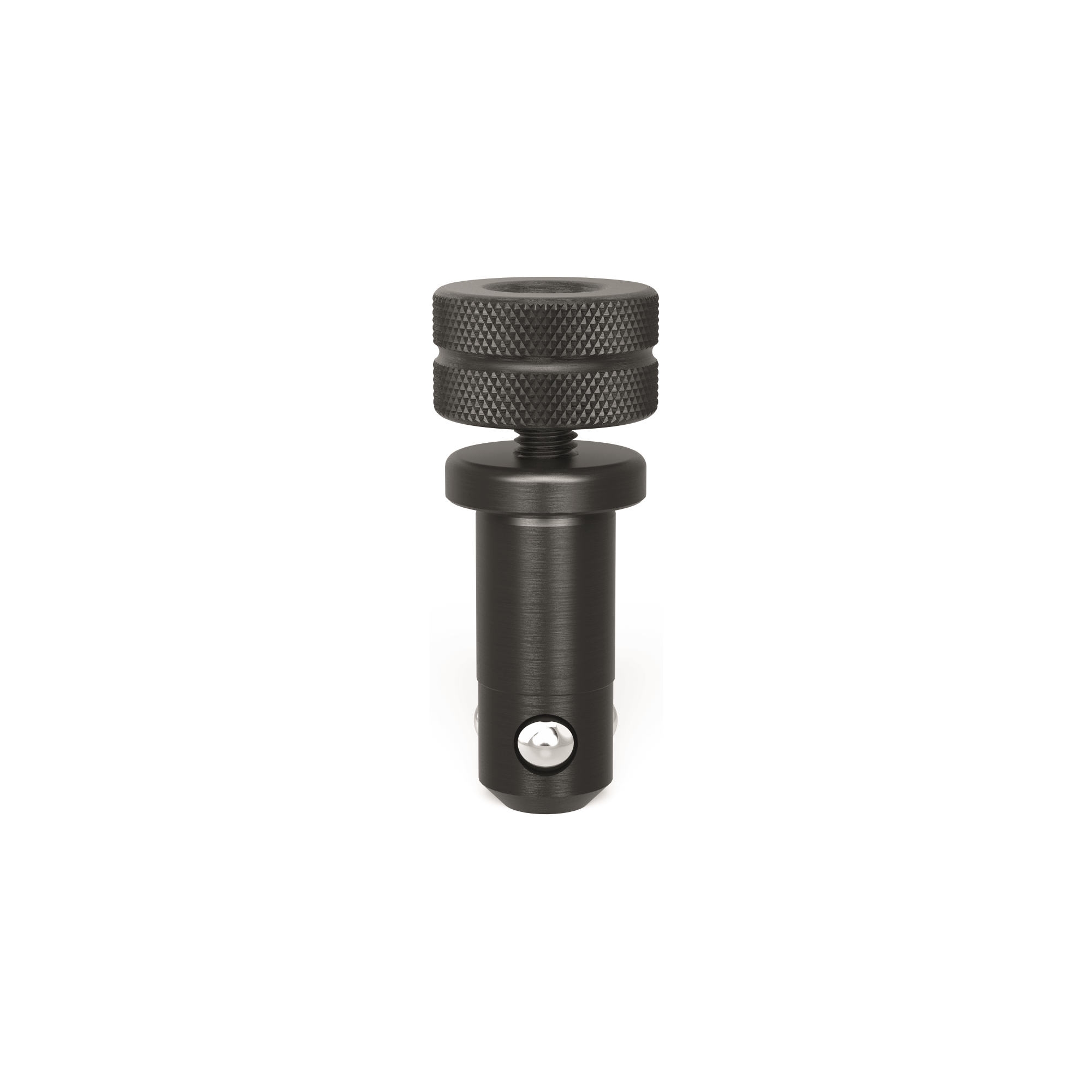

System 22 Fast Clamping Bolt without Slot Double – Burnished

£44.00 Ex. VAT

• To Suit System 22
• Maximum Shearing Force of 130kN
• Maximum Tensile Force of 15kN
Not for Connecting Welding Tables Together
• Burnished
• 220511

SKU: 501-408 Categories: , Brand:

In stock

Compare
Description

This fast-clamping burnished Siegmund Bolt (220511) is the best connecting element between Siegmund tooling and components.

Made without the O-ring slot which guarantees a smooth surface of the bolt body.

Also suitable for clamping aluminium profiles it is recommended that the bolts must be hand tightened only via the screw top when clamping onto aluminium.

This bolt is 83mm long with a diameter of 22mm. The maximum shearing force is 130kN and a tensile force of 15kN. The tightening torque for steel is 15Nm and is 6Nm for aluminium.

These bolts are not for connecting Siegmund welding tables together.

This bolt comes as part of all the Siegmund tool sets for the System 22

If you can’t find what you’re looking for, please contact us via live chat, phone or email. A member of our team will be very willing to help.
