Description

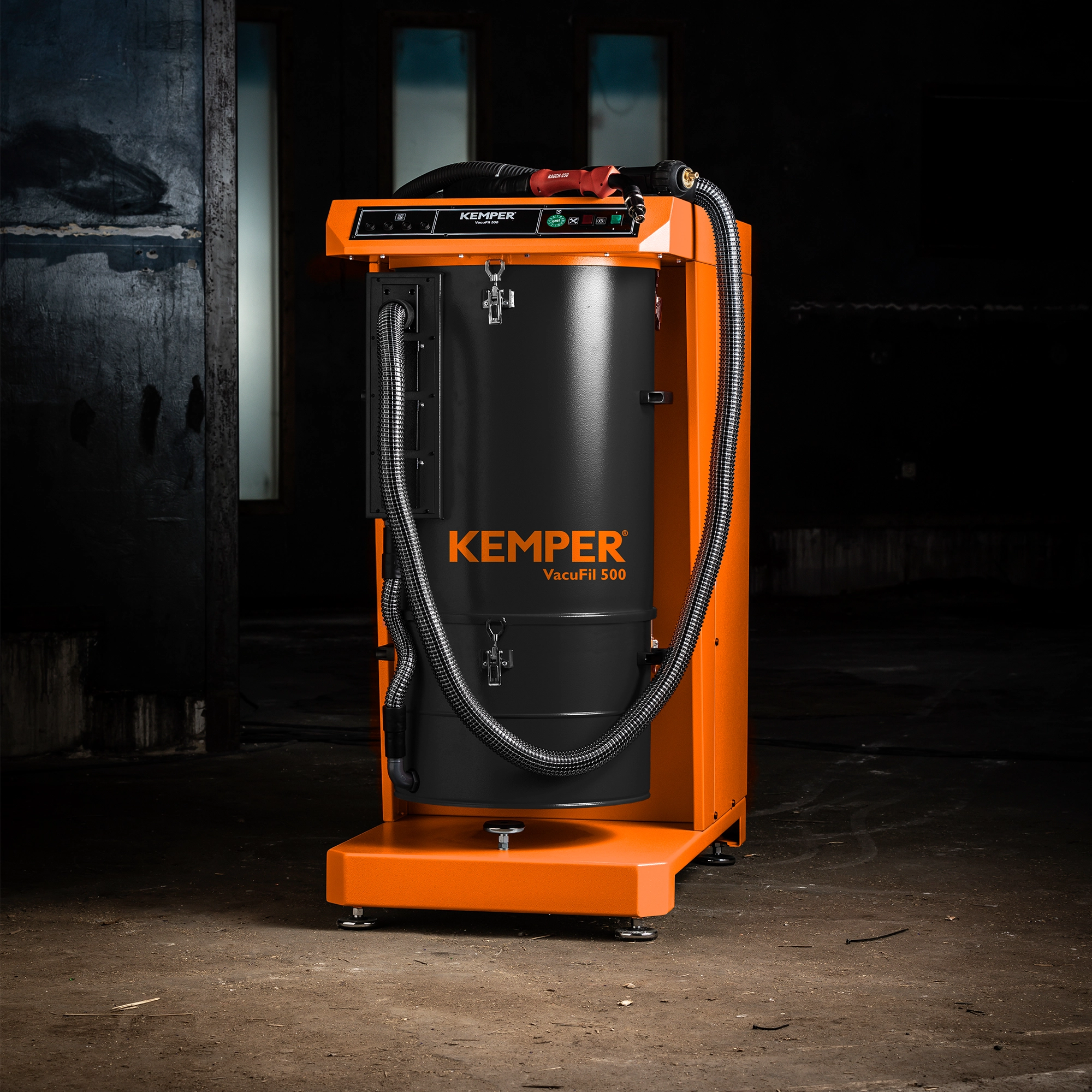

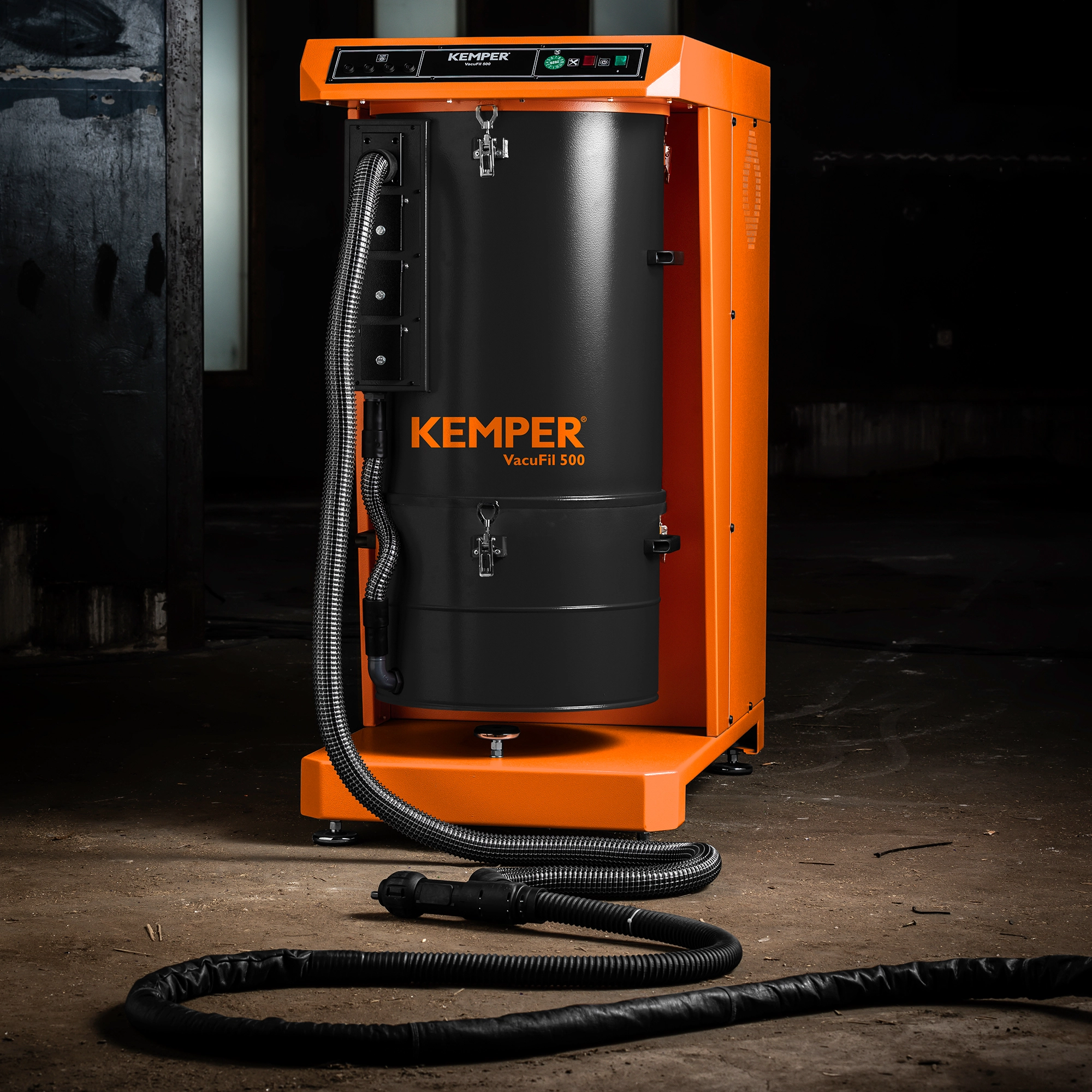

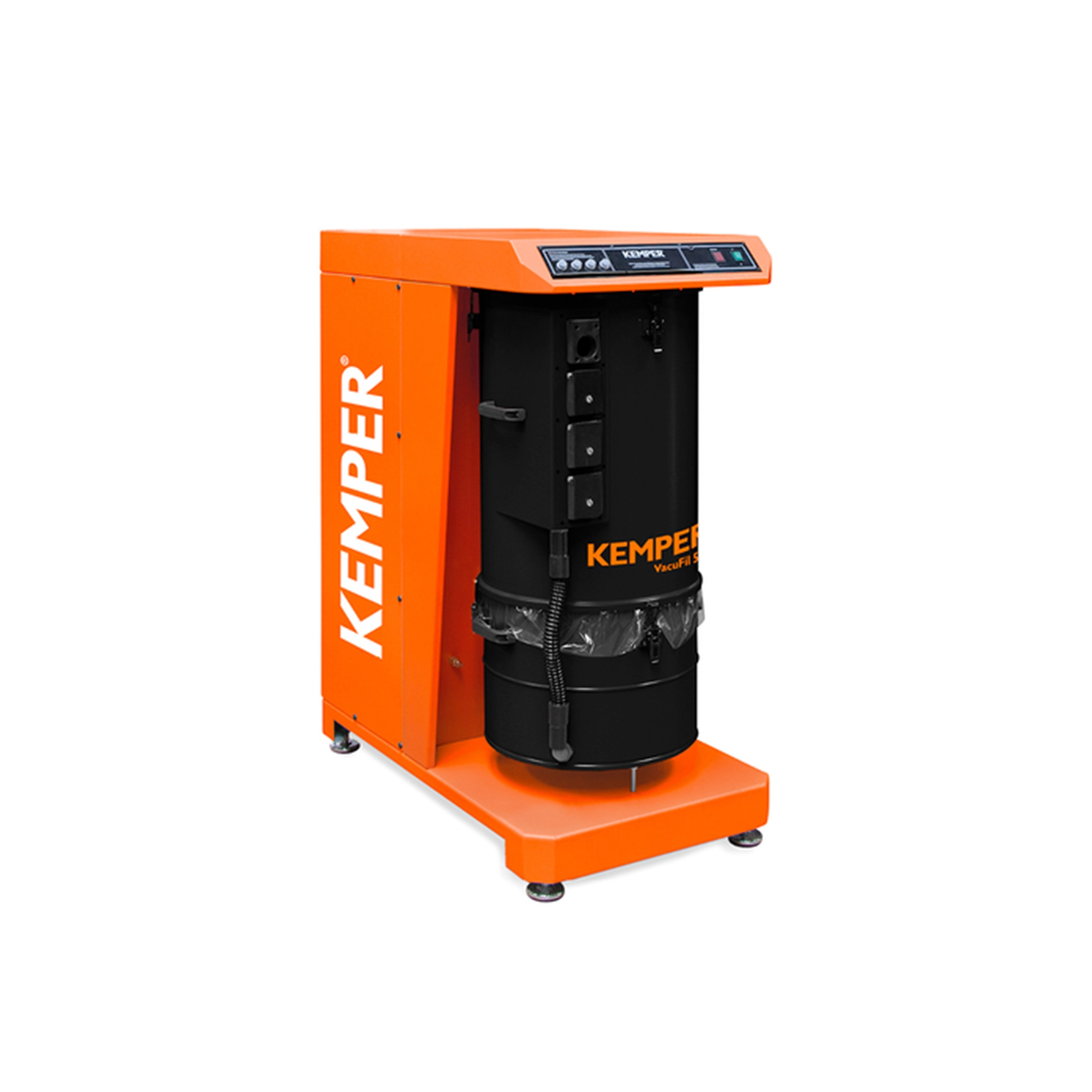

The high-vacuum suction and welding smoke extraction filter unit KEMPER VacuFil 500 is ideal for non-stop operation due to automatic filter cleaning.
A side channel compressor creates negative pressure ensures robust performance for industrial users.
In addition to up to four individual work stations, depending on the version, it can also be connected to a central pipe system.
- High efficiency due to automatic filter cleaning
- Best health protection for employees by use of KemTex® ePTFE filter cartridges with surface filtration
- Uninterrupted continuous operation due to automatically controlled filter cleaning
Please contact us for pricing on this product – 01432 346190 sales@escco.co.uk
Filter Data
Filter stages: 1
Filter method: Cleanable filter
Filter cleaning method: Rotating nozzle
Filter surface: 10 m²
Type of filter: Filter cartridge
Filter material: KemTex® ePTFE membrane
Filter efficiency: > 99.9 %
Dust classification: M
Basic data
Extraction capacity: 500 m³/h
Max. fan performance: 700 m³/h
Maximum vacuum: 20000 Pa
Fan performance: 680 m³/h
Dimensions (w x t x h): 655 x 1197 x 1377 mm
Weight: 270 kg
Motor power: 5,5 kW
Power supply: 3 x 400 V / 50 Hz
Rated current: 12.9 A
Noise level: 74 dB(A)
