Description

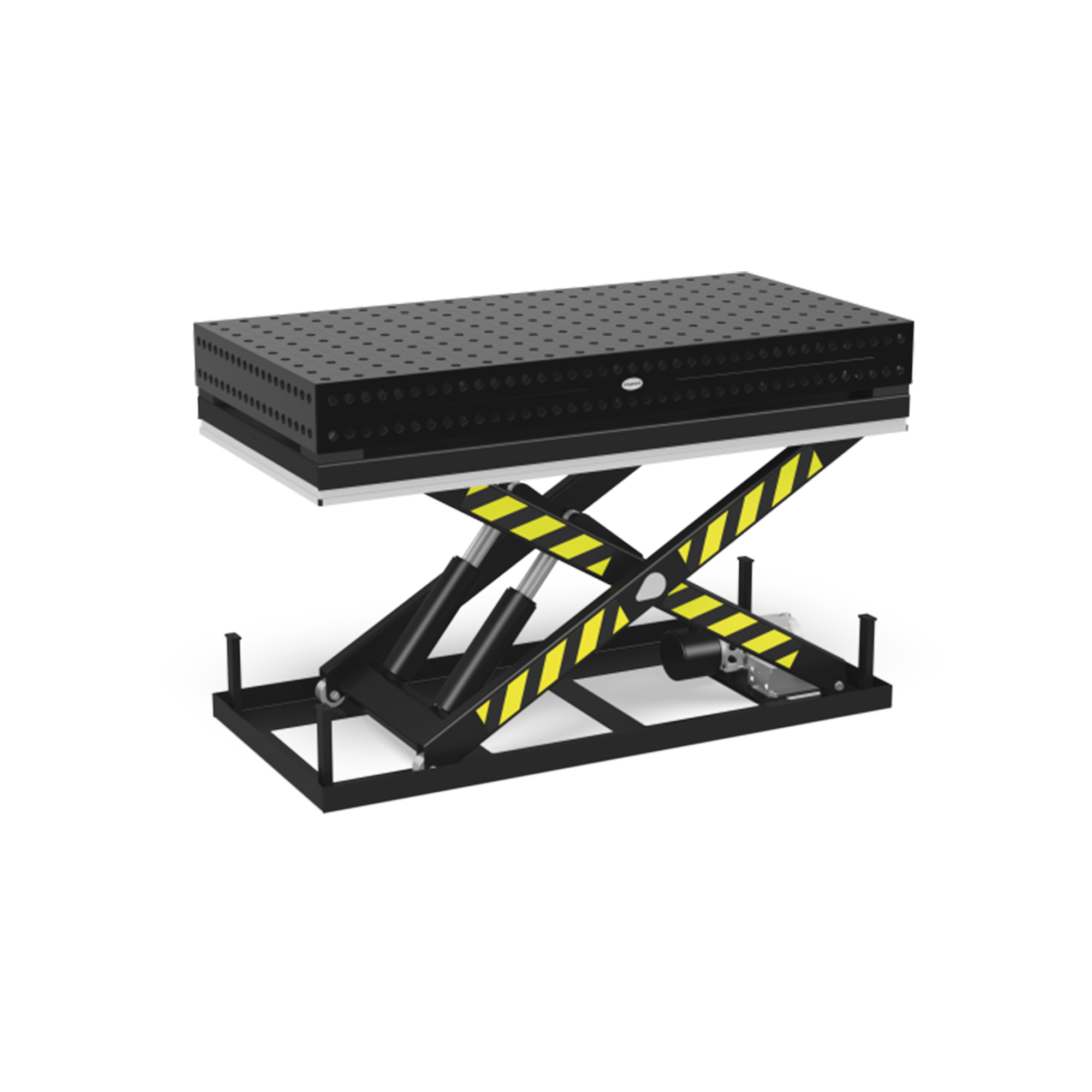

Siegmund Hydraulic Lift 2010, including System 28 Professional 2000 x 1000 mm Welding Table and insulation plates.
A heavy-lifting capacity of 4000 kg, combined with versatility and easy handling. The Siegmund hydraulic lift is ideal for lifting any large, heavy fabrication.
Safety and ergonomic design are key to the hydraulic platform. With a vertical movement range between 330 mm whilst retracted, and 1400 mm at maximum extension for the single-scissor platform. The exterior contact strip on all four sides provides a kill switch to protect against crushing whilst the scissors are lowered.
All Siegmund hydraulic lift platforms include a set of 30 mm thick insulation plates, protecting the electrics of the lifting platform from any interference from high amperage welders. A sturdy construction allows the base frame to be prepared for ground anchoring.
The hydraulic platform is powered by a 16 A CEE 3-phase supply with a standard 5 m cable. The simple-to-use hand button controller also has a 5 m long cable.
For technical advice or queries, contact our specialist sales team on 01432 346190 or send us an e-mail to sales@escco.co.uk
Siegmund welding tables come with a wide range of accessories including clamps, bolts, squares, stops, vices, prisms and supports. For the full range of Siegmund products we supply including all table sizes and accessories, please view the product range PDF here.
